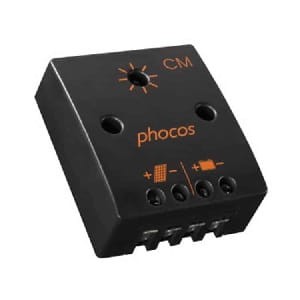

Phocos CM04 Solar Charge Controller

Availability: in stock
Minimum order: no limit
Delivery: The price does not include any possible payment costs check the delivery methods
Net Price: € 13.00 13.00
excl. 23% VAT, excl. shipping costs
quantity pcs.
Manufacturer:: Phocos
Product code: Phocos CM

Description





Phocos CM04 12V, 4A

PV solar charge controller



Standard PV Off-Grid diagram


The CM series is an economic solution for preventing battery overcharging in low-power systems. It is simple, compact and easy to use and install. CM series features a 2-stage PWM charging algorithm that supplies an even charge across all battery cells which lengthens battery lifespan. One green LED states when the CM controller is charging and reducing current via PWM.

• LED charging display
• Large terminals up to 16 mm2 (AWG 6)
• Two-stage PWM charging algorithm (boost & float charging)
• Reverse polarity protection
• Designed to work reliably and efficiently in small PV systems



Downloads





Technical Data

Product Phocos CM04
Type Charge Controller 12V
System Photovoltaic Systems
Function Overcharge Protection
Batteries GEL, AGM, Lead-Acid, Flooded
Charging Mode PWM
Nominal Voltage 12V
Max. charge current 4A
Float charge 13,7V
Boost charge 14.5V activation: battery voltage <12.2V
Max. panel voltage 30V (Voc)
Overvoltage protection 30V
Grounding common positive
Ambient temperature −40 to +50°C
Max. height 4.000m above sea level
Wire cross section Max. 16 mm2 (AWG 6)
Weight 68 g
Dimensions (WxHxD) 61x73x30mm
Protection class IP22
Warranty 2 years
