Phocos CXNup10

Availability: require pre order (waiting time ~4-6 weeks)
Limitations: max 3 units per order
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 69.00
Net Price (without VAT)

Regular price:

69.00
quantity pcs.

product unavailable

Producer: Phocos
Product code: Phocos CXNup10

Description

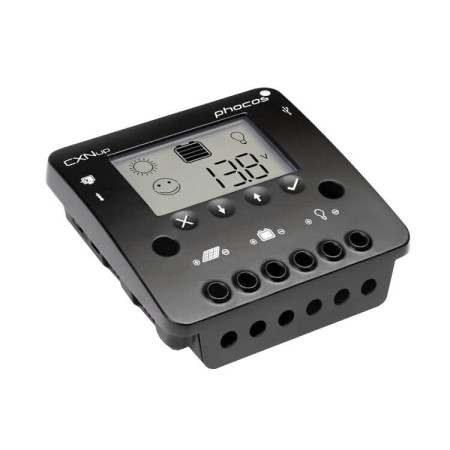

Phocos CXNup10

PV solar charge controller



The CXNup series is a highly intelligent charge controller family for a wide range of applications. It features an intuitive user interface and stores up to two (2) years of valuable system performance data, which is accessible via the LCD and PhocosLink software.

Real-time battery voltage, battery state-of-charge (SOC) in percent, charge and load current, and system status are clearly displayed on the large, backlit LCD. The CXNup2B offers the possibility to charge two independent batteries with up to 20 A. All other variants offer a USB port to charge mobile phones, tablets and other USB devices. Optional acoustic battery alarms and programmable street light settings are also standard.



  • USB charging port
  • Data logger information can be exported
  • Load status indication
  • Touch keys ensure long lasting operation and eliminates mechanical button failures
  • Prepared for 12 or 24 V battery charging
  • Suitable for charging systems up to 1.4 kW
  • 2 year datalogging
  • User friendly LCD shows extensive system information
  • Four-stage PWM charging algorithm with integrated temperature compensation
  • Full electronic protection
  • Programmable load function suitable for street lights
  • Corrosion-resistant screw terminals
  • Programmable battery type
  • Compatible with LiFePO4 batteries (no communication to battery)


Downloads



Phocos CXNup10- Datasheet

Phocos CXNup10 - User Manual

Phocos CXNup10- CE Certificate

Technical Data

Model Phocos CXNup10
System Voltage 12 / 24 V
Max. Charge/Load Current 10 A
Float Charge 13.8 / 27.6 V
Boost Charge 14.4 / 28.8 V
Overvoltage Protection 15.5 / 31.0 V
Max. PV Panel Voltage 30 V / 50 V
Idle Self-Consumption < 4 mA
Grounding Common Negative
Ambient Temperature -40 to +60 °C
Max. Altitude 4,000 m above sea level
Battery Type Lead acid (gel, AGM, flooded)
Max. Wire Cross Section 16 mm2
Dimensions 101 x 103 x 32 mm
Weight 0.18 kg
Ingress Protection IP22
Warranty 5 years
