Phocos CXNup20

Availability:

require pre order (waiting time ~4-6 weeks)

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 92.00

Net Price (without VAT)

Regular price:

92.00

quantity pcs.

product unavailable

Producer:

Product code: Phocos CXNup20

ask about product

Description

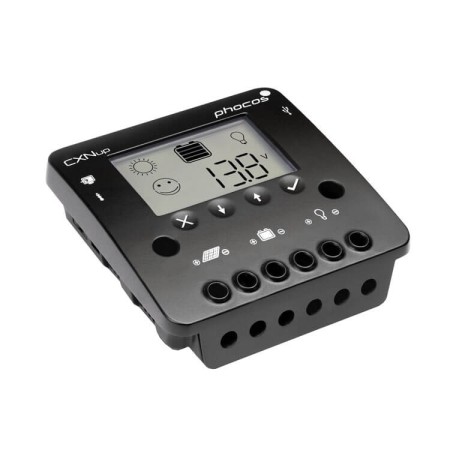

Phocos CXNup20

PV solar charge controller

The CXNup series is a highly intelligent charge controller family for a wide range of applications. It features an intuitive user interface and stores up to two (2) years of valuable system performance data, which is accessible via the LCD and PhocosLink software. Real-time battery voltage, battery state-of-charge (SOC) in percent, charge and load current, and system status are clearly displayed on the large, backlit LCD. The CXNup2B offers the possibility to charge two independent batteries with up to 20 A. All other variants offer a USB port to charge mobile phones, tablets and other USB devices. Optional acoustic battery alarms and programmable street light settings are also standard.

USB charging port
Data logger information can be exported
Load status indication
Touch keys ensure long lasting operation and eliminates mechanical button failures
Prepared for 12 or 24 V battery charging
Suitable for charging systems up to 1.4 kW
2 year datalogging
User friendly LCD shows extensive system information
Four-stage PWM charging algorithm with integrated temperature compensation
Full electronic protection
Programmable load function suitable for street lights
Corrosion-resistant screw terminals
Programmable battery type
Compatible with LiFePO4 batteries (no communication to battery)

Downloads

Phocos CXNup20 - Datasheet
Phocos CXNup20 - User Manual
Phocos CXNup20 - CE Certificate

Technical Data

Model	Phocos CXNup20
System Voltage	12 / 24 V
Max. Charge/Load Current	10 A \| 20 A
Float Charge	13.8 / 27.6 V
Boost Charge	14.4 / 28.8 V
Overvoltage Protection	15.5 / 31.0 V
Max. PV Panel Voltage	30 V / 50 V
Idle Self-Consumption	< 4 mA
Grounding	Common Negative
Ambient Temperature	-40 to +60 °C
Max. Altitude	4,000 m above sea level
Battery Type	Lead acid (gel, AGM, flooded)
Max. Wire Cross Section	16 mm2
Dimensions	101 x 103 x 32 mm
Weight	0.18 kg
Ingress Protection	IP22
Warranty	5 years
