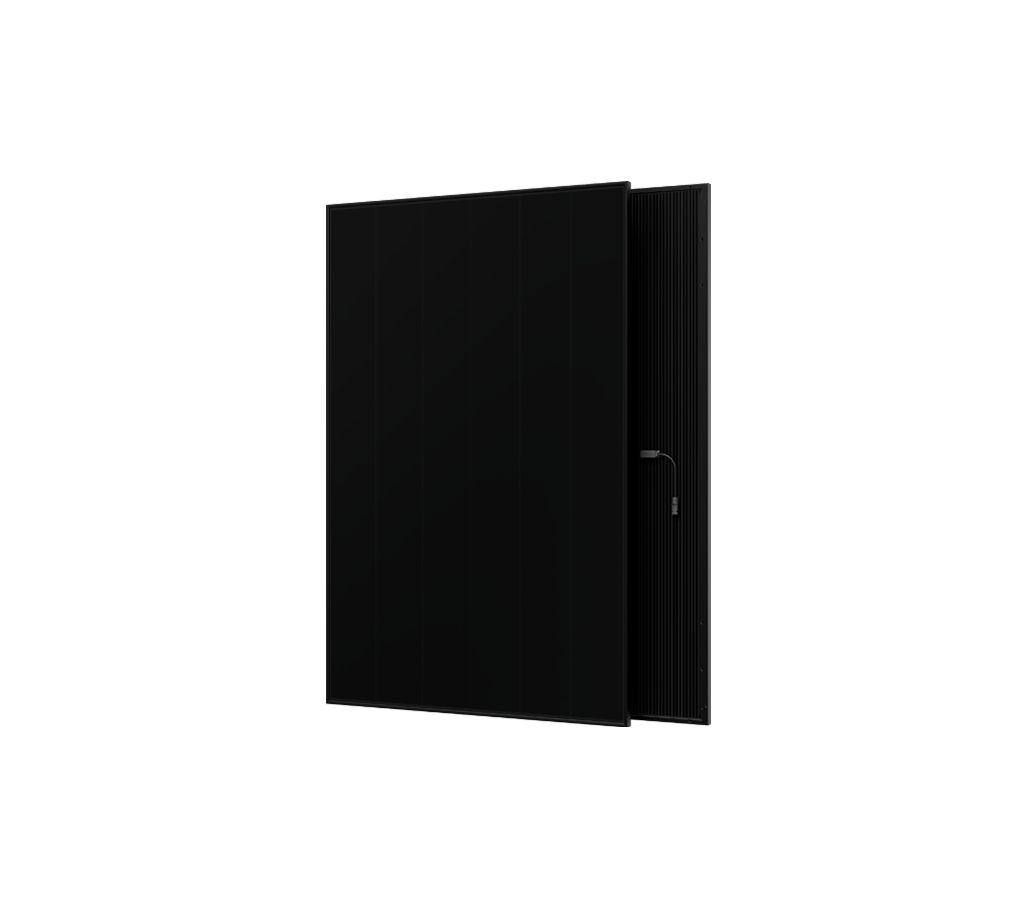

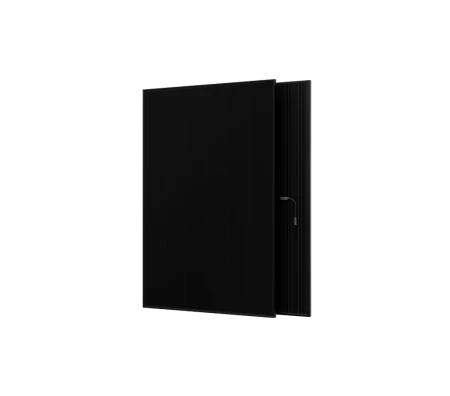

AIKO A485-MCE54Db Full Black

Availability:

in stock

Delivery: choose country of delivery

Price: € 123.63

Net Price (without VAT)

Regular price:

123.63

quantity pcs.

product unavailable

add to wish list

Producer: AIKO

ID: AIKO-A485-MCE54Db

Product

AIKO A485-MCE54Db Full Black

New listing — available now. This product is in stock and available to order right away. Full product description, technical data and downloads (datasheet, manuals, certificates) will be added in the coming days.

Technical data

General
Model	AIKO-A485-MCE54Db
Cell technology	N-type
Cell type (as stated by producer)	N-Type BC
Number of cells	108
Bifacial	Yes
Frame	black
Electrical
Nominal power	485 Wp
Power output tolerance	0~+3%
Module efficiency	24.3 %
Open-circuit voltage (Voc)	41.00 V
Short-circuit current (Isc)	14.84 A
Voltage at Pmax (Vmp)	34.60 V
Current at Pmax (Imp)	14.02 A
Max. system voltage	1500 V
Max. series fuse rating	30 A
Temperature coefficient (Pmax)	-0.26 %/degC
Temperature coefficient (Voc)	-0.22 %/degC
Temperature coefficient (Isc)	0.05 %/degC
Mechanical
Glass	dual
Glass (as stated by producer)	dual glass, 2.0 + 2.0 mm coated semi tempered glass
Junction box	IP68, 3 bypass diodes
Cable	4 mm² (IEC) / 12 AWG (UL), ±1200 mm
Connector	PV-KST4-EVO 2A/6I / PV-KBT4-EVO 2A/6I (Stäubli)
Max. static load, front	5400 Pa
Max. static load, rear	2400 Pa
Weight	24.2 kg
Logistics
Modules per pallet	37
General data
Operating temperature range	-40...+85 °C
Width	1134 mm
Height	1762 mm
Depth	30 mm
Certificates
Product warranty	25 years
Power warranty	30 years

Downloads

Datasheet

Datasheet Neostar 3S+54 Dual-Glass AIKO-A470~A485-MCE54Db EN (Aiko V2.1 202502)ENrev. V2.1_2025021.3 MB

Certificates

CE Declaration of ConformityEN139 KB

Technical Data

Technology

N-type
