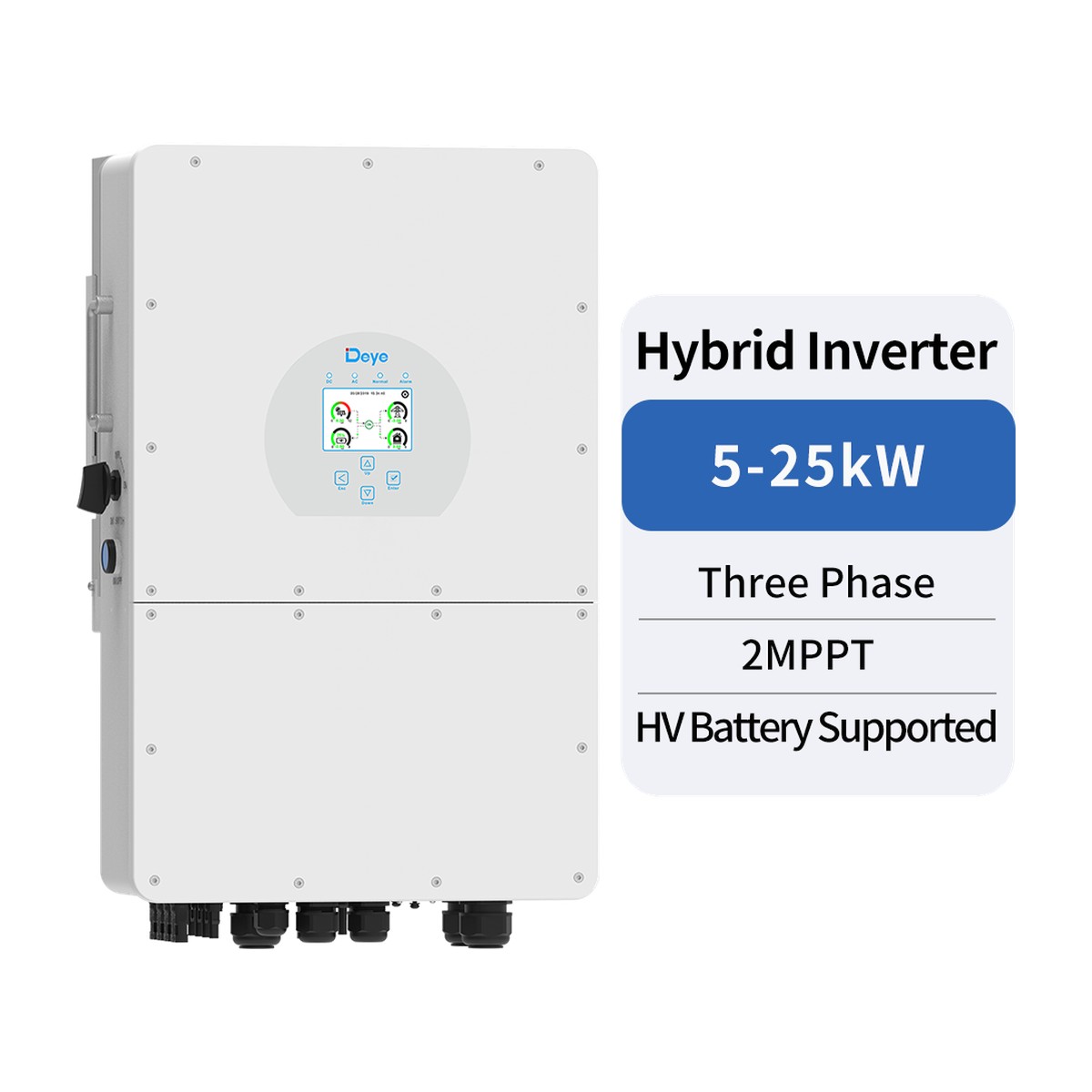

Deye SUN-10K-SG01HP3-EU-AM2

Availability:

running out

Delivery: choose country of delivery

Price: € 1,355.34

Net Price (without VAT)

Regular price:

1355.34

quantity pcs.

product unavailable

add to wish list

Producer: Deye

ID: Deye-SUN-10K-SG01HP3-EU-AM2-Hybrid-Inverter

Product

Deye SUN-10K-SG01HP3-EU-AM2

Hybrid PV Inverter

Hybridsystem
IP65outdoor
10 yearswarranty
30.5kgpalletized shipping

The Deye SUN-10K-SG01HP3-EU-AM2 (SUN-SG01HP3-EU-AM2 series) is a three-phase hybrid inverter for high-voltage batteries, with 100% unbalanced output. Up to 10 units can operate in parallel in on-grid and off-grid mode, and it can be AC-coupled to retrofit an existing solar system.

Deye is listed on the Shanghai Stock Exchange (stock code 605117).

Key features

High voltage battery
100% unbalanced output
AC coupling to retrofit an existing solar system
Up to 10 units in parallel for on-grid and off-grid operation
6 time periods for battery charging/discharging
Storing energy from a diesel generator

Battery compatibility

Battery: Lithium-ion

Technical data

AC output
Rated power / apparent power	11kVA
Grid connection	230/400V, 50/45/55/60/55/65Hz
Battery
Compatible batteries	Lithium-ion
General
Protection	IP65, SPD: DC TYPE II(DC), AC TYPE II(AC)
Dimensions / weight	408 × 638 × 237mm / 30.5kg
Operating temperature	-40 to +60°C
Communication	RS485/RS232/CAN
Certificates	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Warranty	10 years

Downloads

Datasheet

Datasheet SUN-10K-SG01HP3-EU-AM2EN226 KB

Technical Data

Power	10kW
Type	Hybrid
Phases	3P
MPPT	2x MPPT
