Deye SUN-15K-SG01HP3-EU-AM2

Availability:

in stock

Delivery: choose country of delivery

Price: € 1,636.29

Net Price (without VAT)

Regular price:

1636.29

quantity pcs.

product unavailable

add to wish list

Producer: Deye

ID: Deye-SUN-15K-SG01HP3-EU-AM2

Product

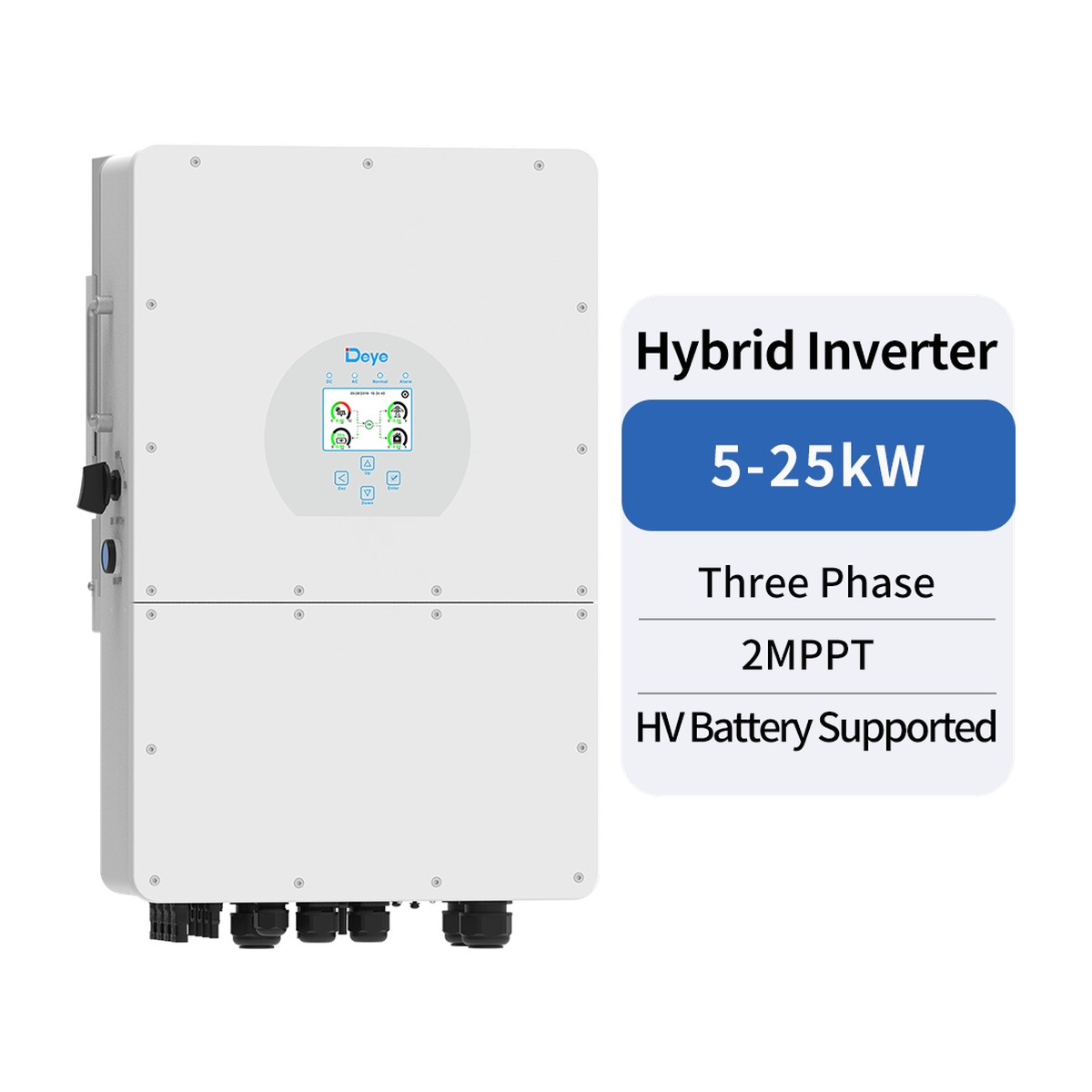

Deye SUN-15K-SG01HP3-EU-AM2

15kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
24kWPV max
1000Vdcsystem voltage
IP65outdoor
30.5kgpalletized shipping

The Deye SUN-15K-SG01HP3-EU-AM2 (SUN-SG01HP3-EU-AM2 series) is a three-phase hybrid inverter for high-voltage batteries, with 100% unbalanced output. Up to 10 units can operate in parallel in on-grid and off-grid mode, and it can be AC-coupled to retrofit an existing solar system.

Deye is listed on the Shanghai Stock Exchange (stock code 605117).

Key features

High voltage battery
100% unbalanced output
AC coupling to retrofit an existing solar system
Up to 10 units in parallel for on-grid and off-grid operation
6 time periods for battery charging/discharging
Storing energy from a diesel generator

Technical data

AC output
Rated power / apparent power	15kW / 16.5kVA
Grid connection	3-phase, 230/400V, 50/60Hz
Max. output current	25A
PV input
Max. PV power	24kW
Max. DC voltage / MPPT range	1000V / 150–850V
Battery
Battery type / voltage	160–700V
General
Efficiency (max / EU)	97.6% / 97%
Protection	IP65
Dimensions / weight	408 × 638 × 237mm / 30.5kg
Operating temperature	-40 to +60°C
Communication	RS485/RS232/CAN

Downloads

Datasheet

Datasheet SUN-15K-SG01HP3-EU-AM2EN226 KB

Technical Data

Power	15kW
Phases	3P
MPPT	2x MPPT
