Deye SUN-50K-SG01HP3-EU-BM4

Availability:

in stock

Delivery: choose country of delivery

Price: € 4,461.15

Net Price (without VAT)

Regular price:

4461.15

quantity pcs.

product unavailable

add to wish list

Producer: Deye

ID: Deye-SUN-50K-SG01HP3-EU-BM4

Product

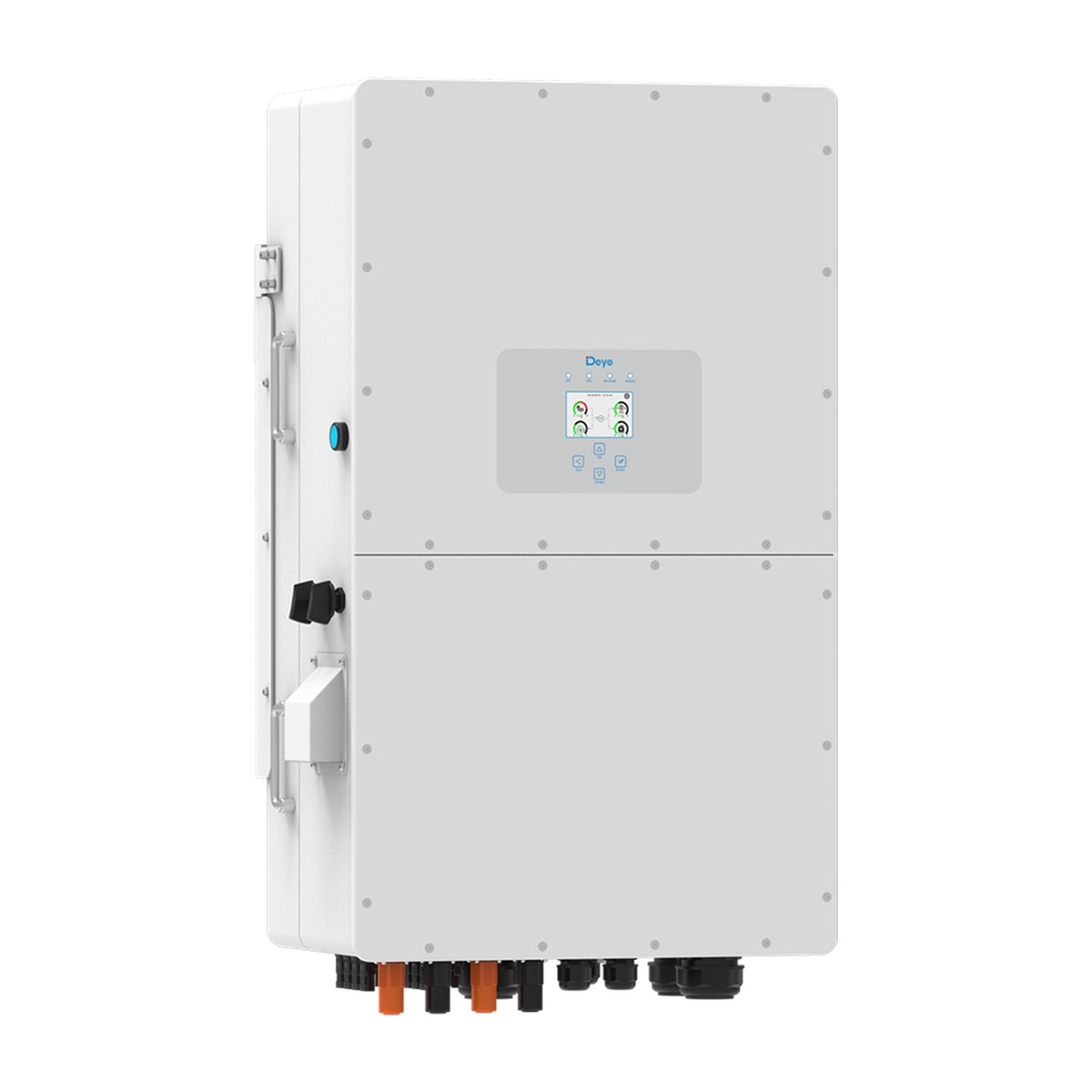

Deye SUN-50K-SG01HP3-EU-BM4

50kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
80kWPV max
1000Vdcsystem voltage
IP65outdoor
5 yearswarranty
80kgpalletized shipping

The Deye SUN-50K-SG01HP3-EU-BM4 (SUN-SG01HP3-EU-BM3/BM4 series) is a three-phase hybrid inverter for high-voltage batteries, with 100% unbalanced output. Up to 10 units can operate in parallel in on-grid and off-grid mode, and it can be AC-coupled to retrofit an existing solar system.

Deye is listed on the Shanghai Stock Exchange (stock code 605117).

Key features

High voltage battery
100% unbalanced output
AC coupling to retrofit an existing solar system
Up to 10 units in parallel for on-grid and off-grid operation
6 time periods for battery charging/discharging
Storing energy from a diesel generator

Technical data

AC output
Rated power / apparent power	50kW / 55kVA
Grid connection	3-phase, 230/400V, 50/60Hz
Max. output current	83.4A
PV input
Max. PV power	80kW
Max. DC voltage / MPPT range	1000V / 150–850V
Battery
Battery type / voltage	160–800V
General
Efficiency (max / EU)	97.6% / 97%
Protection	IP65
Dimensions / weight	527 × 894 × 294mm / 80kg
Operating temperature	-40 to +60°C
Communication	RS485/RS232/CAN
Warranty	5 years

Downloads

Datasheet

Datasheet SUN-50K-SG01HP3-EU-BM4EN114 KB

Technical Data

Power	50kW
Phases	3P

Safety
