Deye SUN-8K-SG01HP3-EU-AM2

Availability:

running out

Delivery: choose country of delivery

Price: € 1,313.93

Net Price (without VAT)

Regular price:

1313.93

quantity pcs.

product unavailable

add to wish list

Producer: Deye

ID: Deye-SUN-8K-SG01HP3-EU-AM2-Hybrid-Inverter

Product

Deye SUN-8K-SG01HP3-EU-AM2

Hybrid PV Inverter

Hybridsystem
HVbattery
30.5kgpalletized shipping

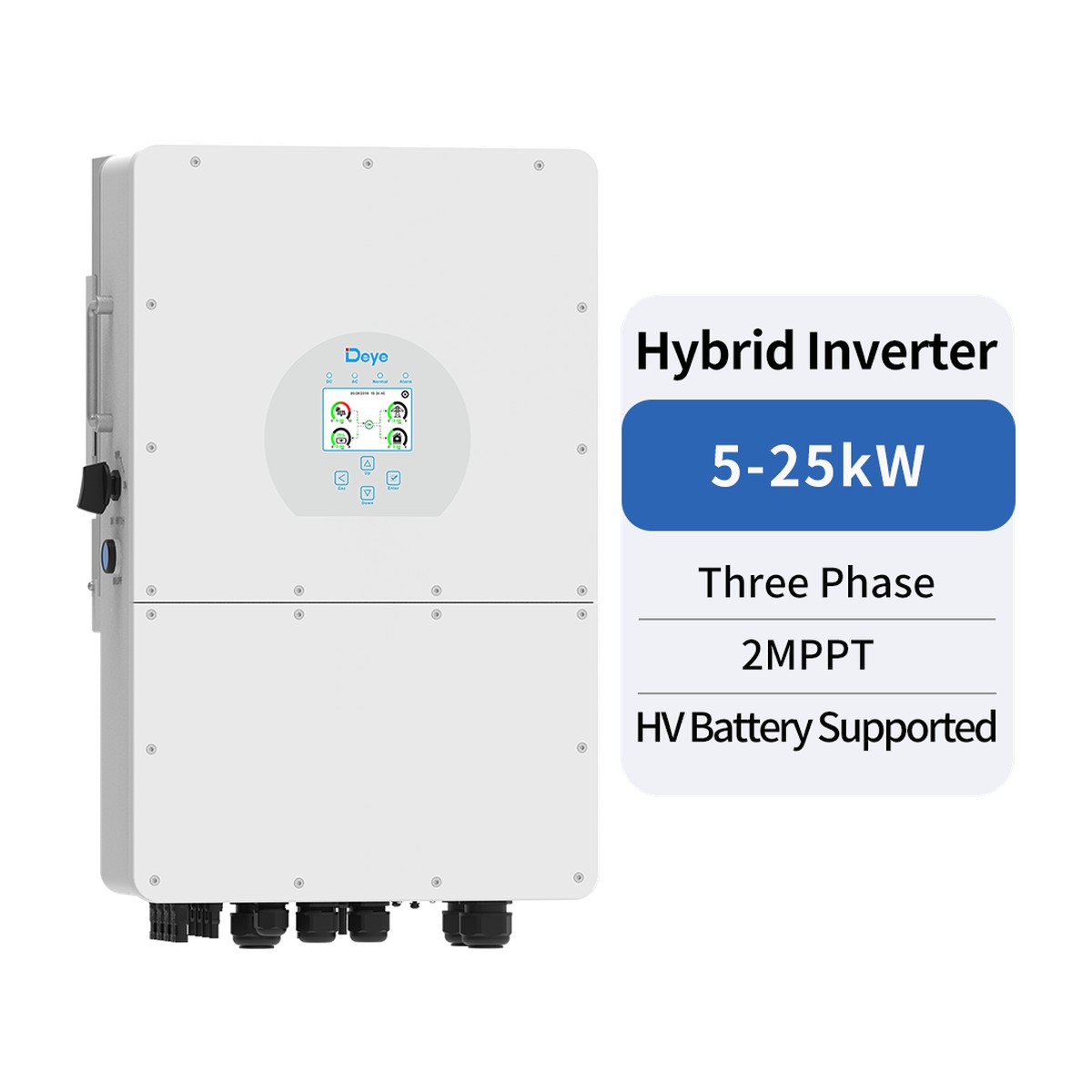

The Deye SUN-8K-SG01HP3-EU-AM2 (SUN-SG01HP3-EU-AM2 series) is a three-phase hybrid inverter for high-voltage batteries, with 100% unbalanced output. Up to 10 units can operate in parallel in on-grid and off-grid mode, and it can be AC-coupled to retrofit an existing solar system.

Deye is listed on the Shanghai Stock Exchange (stock code 605117).

Key features

High voltage battery
100% unbalanced output
AC coupling to retrofit an existing solar system
Up to 10 units in parallel for on-grid and off-grid operation
6 time periods for battery charging/discharging
Storing energy from a diesel generator

Battery compatibility

Battery: Lithium-ion
Battery voltage: 160–700V

Technical data

AC output
Grid connection	220/380 / 230/400/1.1V, 50/45/55/60/55/65Hz
Battery
Compatible batteries	Lithium-ion, 160–700V
General
Efficiency (max / EU)	97.6% / 97.0%
Protection	SPD: DC TYPE II(DC), AC TYPE II(AC)
Dimensions / weight	30.5kg
Communication	RS485/RS232/CAN
Certificates	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105

Downloads

Datasheet

Datasheet SUN-8K-SG01HP3-EU-AM2EN226 KB

Technical Data

Power	8kW
Type	Hybrid
Phases	3P
MPPT	2x MPPT
