Deye SUN-8K-SG05LP3-EU-SM2

Availability:

Running out

Delivery: choose country of delivery

Price: € 1,597.82

Net Price (without VAT)

Regular price:

1597.82

quantity pcs.

product unavailable

add to wish list

Producer: Deye

ID: Deye-SUN-8K-SG05LP3-EU-SM2

Product

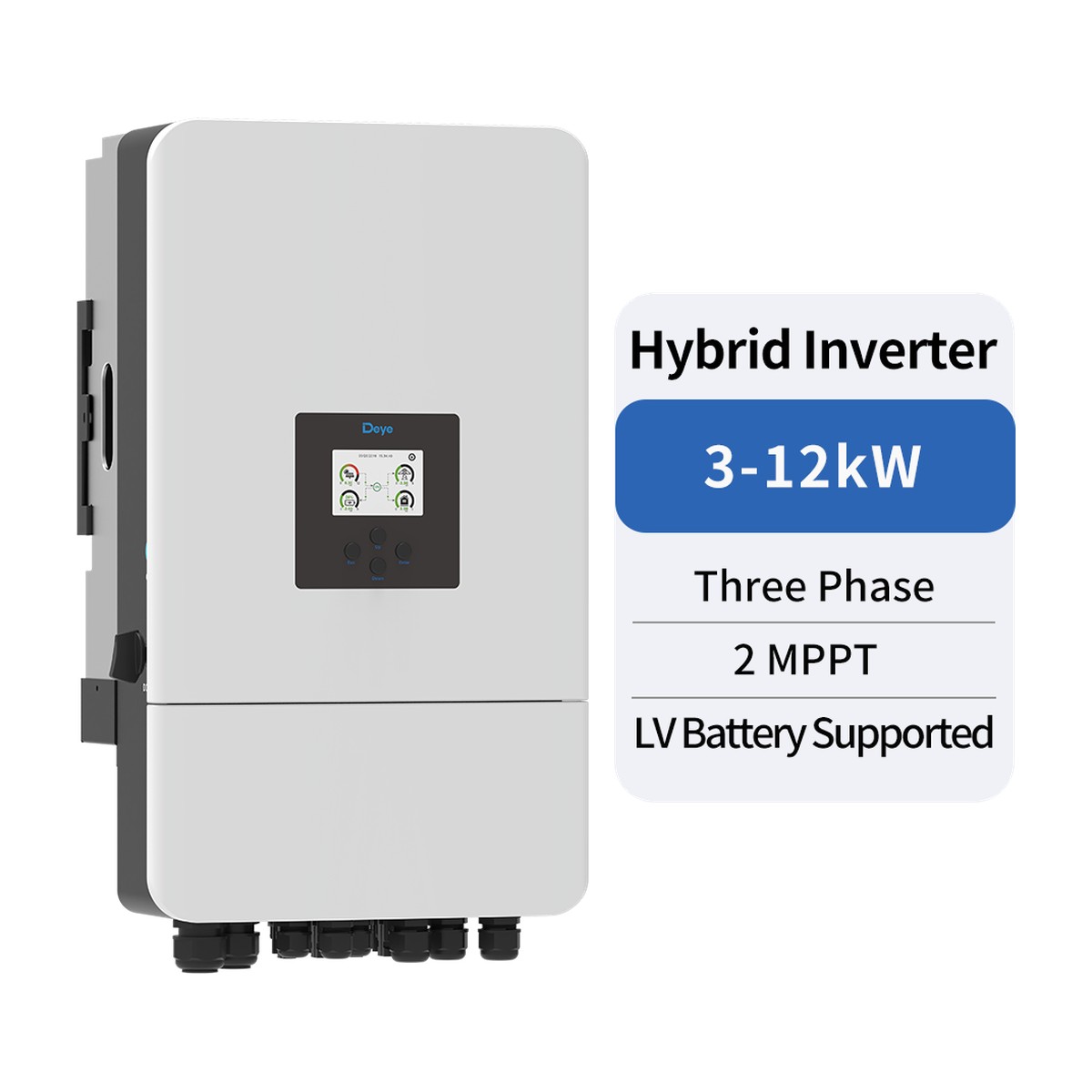

Deye SUN-8K-SG05LP3-EU-SM2

8kW 3P Hybrid PV Inverter

Hybridsystem
3phases
LVbattery
12.8kWPV max
800Vdcsystem voltage
IP65outdoor
35.2kgpalletized shipping

The Deye SUN-8K-SG05LP3-EU-SM2 (SUN-SG05LP3-EU-SM2 series) is a three-phase hybrid inverter for 48V low-voltage batteries, with a transformer isolation design. Up to 10 units can operate in parallel in on-grid and off-grid mode, and energy from a diesel generator can be stored.

Deye is listed on the Shanghai Stock Exchange (stock code 605117).

Key features

48V low voltage battery, transformer isolation design
AC coupling to retrofit an existing solar system
Up to 10 units in parallel for on-grid and off-grid operation
100% unbalanced output, max. 50% of rated power per phase
Time-of-use scheduling: 6 programmable charge/discharge periods
Storing energy from a diesel generator

Technical data

AC output
Rated power / apparent power	8kW / 8.8kVA
Grid connection	3-phase, 230/400V, 50/60Hz
Max. output current	13.4A
PV input
Max. PV power	12.8kW
Max. DC voltage / MPPT range	800V / 200–650V
Battery
Battery type / voltage	40–60V
General
Efficiency (max / EU)	97.6% / 97%
Protection	IP65
Dimensions / weight	386 × 660 × 250mm / 35.2kg
Operating temperature	-40 to +60°C
Wired communication	RS485, CAN, DRM
Warranty	see producer terms

Downloads

Datasheet

Datasheet SUN-8K-SG05LP3-EU-SM2EN5.2 MB

Technical Data

Power	8kW
Type	Hybrid
Phases	3P
MPPT	2x MPPT
