FoxESS H3-PRO-25.0

Availability:

in stock

Delivery: choose country of delivery

Price: € 3,513.82

Net Price (without VAT)

Regular price:

3513.82

quantity pcs.

product unavailable

add to wish list

Producer:

ID: FoxESS-H3-Pro-25.0

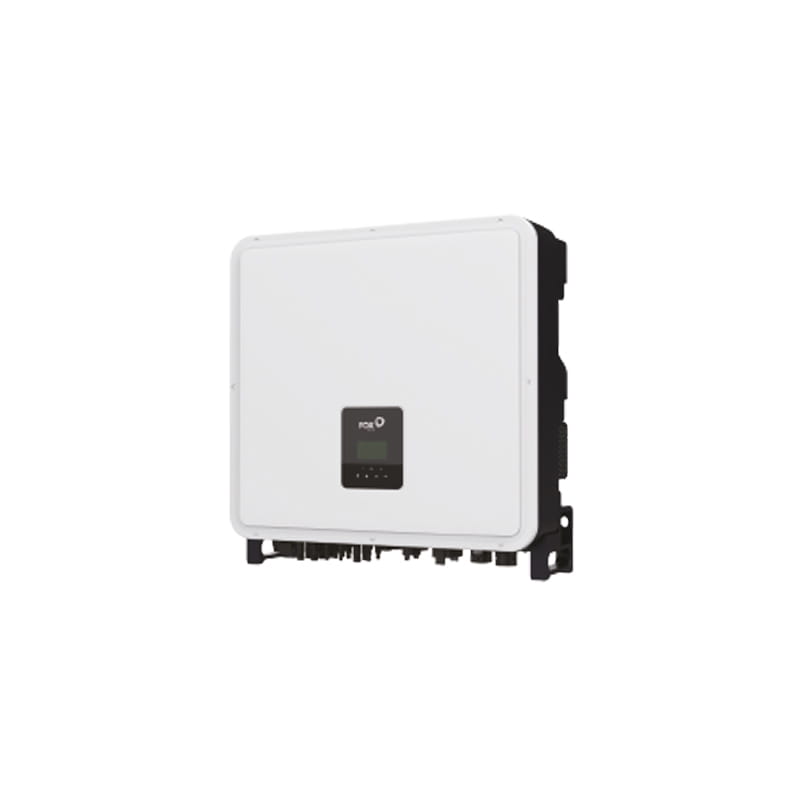

FoxESS H3-Pro-25.0

25kW 3P Hybrid PV Inverter

AC output
Rated power / apparent power	25kW / 27.5kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
Max. output current	41.7A
PV input
Max. PV power	50kW
Max. DC voltage / MPPT range	1000V / 150–850V
MPPT	3x MPPT, max. 16A per MPPT
Max. short-circuit current	20A per MPPT
General
Efficiency (max / EU)	97.1% / 96.6%
Protection	IP65, AFCI: Optional
Dimensions / weight	600 × 560 × 225mm / 58kg
Operating temperature	-25 to +60°C
Communication	Meter, WIFI, 4G(Optional), DRM, USB, BMS(CAN), RS485, Ethernet, SG ready
