Product

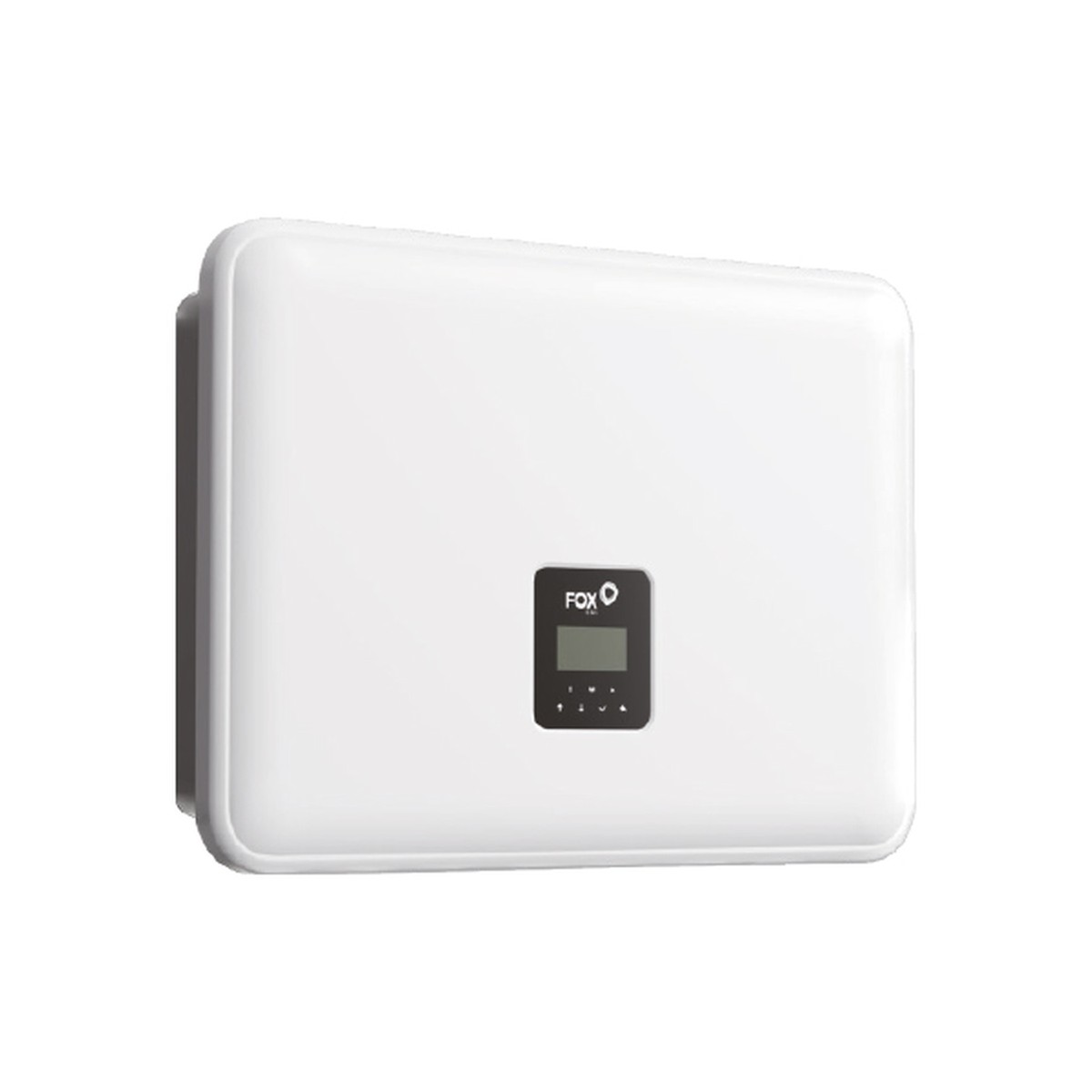

FoxESS P3-10.0-SH

10kW 3P Hybrid PV Inverter

Hybridsystem
3phases
3xMPPT
20kWPV max
1000Vdcsystem voltage
IP65outdoor
34kgpalletized shipping

Compatible with Fox ESS high-voltage batteries, the FoxESS P3-10.0-SH (P3 series) is a three-phase hybrid inverter with plug and play set-up and built-in fuse protection. It is IP65 rated for outdoor installation and can be monitored remotely via smartphone app or web portal.

FoxESS, founded in 2019 and headquartered in Wenzhou, China, develops inverters and battery storage systems as part of the Tsingshan Holding Group.

Key features

High-voltage battery compatibility
Flexible configuration, plug and play set-up, built-in fuse protection
IP65 rated, suitable for outdoor installation
Remote monitoring via smartphone app or web portal (FoxCloud V2.0)
Triple MPP trackers

Technical data

AC output
Rated power / apparent power	10kW / 11kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
Max. output current	16.7A
PV input
Max. PV power	20kW
Max. DC voltage / MPPT range	1000V / 120–950V
MPPT	3x MPPT
General
Efficiency (max / EU)	97.9% / 97.2%
Protection	IP65, AFCI: Optional
Dimensions / weight	600 × 450 × 226mm / 34kg
Operating temperature	-25 to +60°C
Communication	Ethernet, EMS(RS485), Meter, WiLAN(Wifi+LAN+Bluetooth), 4G(Optional), DRM, Ripple Control, USB, BMS(CAN), SG Ready

Downloads

Datasheet

Datasheet P3-10.0-SHEN541 KB

Technical Data

Power	10kW
Phases	3P
MPPT	3x MPPT
Backup	Yes
