Product

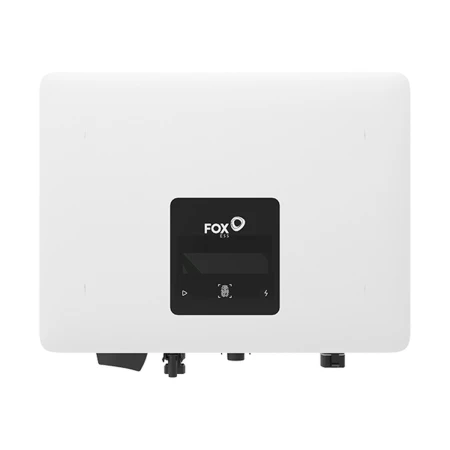

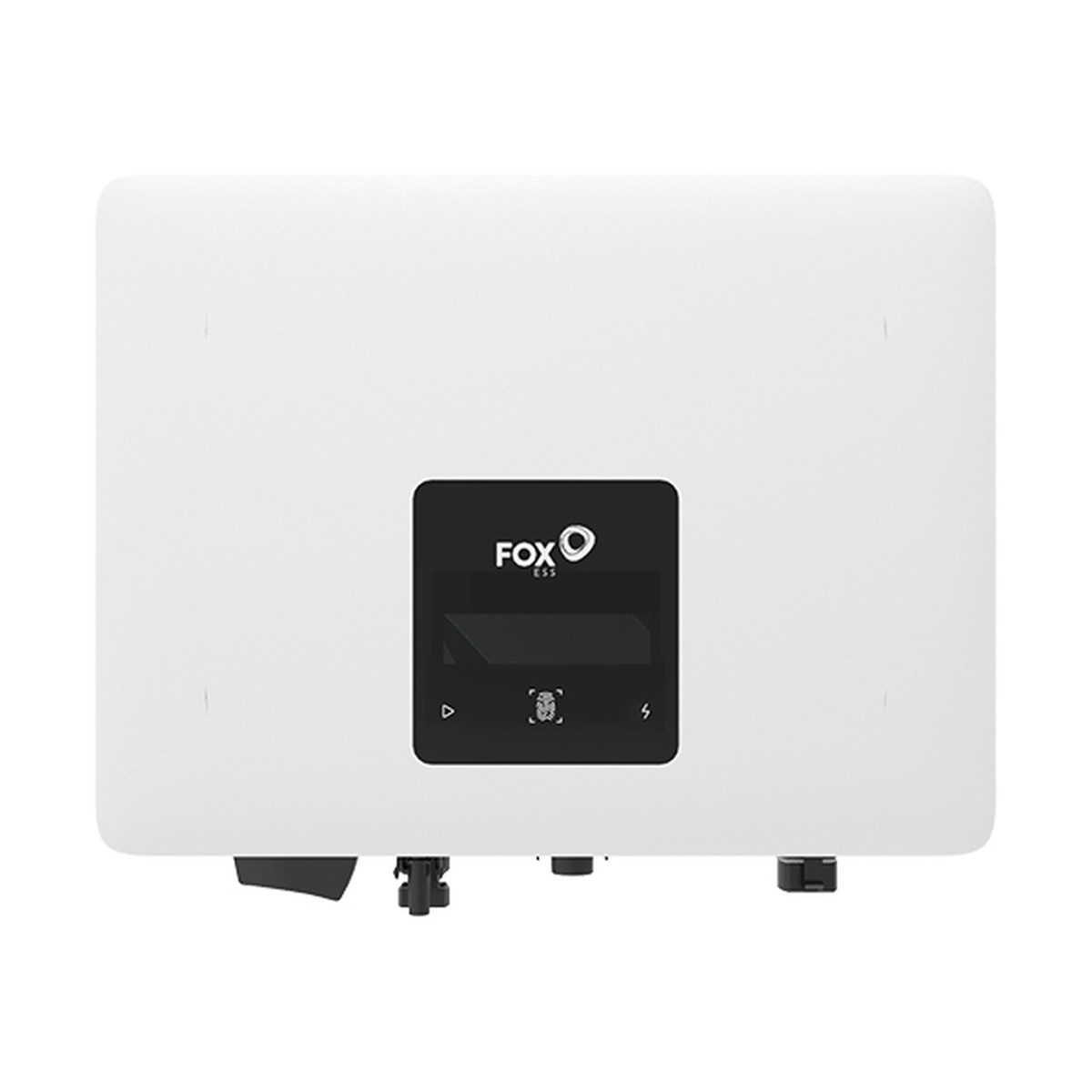

FoxESS S2500-G2

2.5kW 1P On-Grid PV Inverter

On-gridsystem
1phase
1xMPPT
3.75kWPV max
500Vdcsystem voltage
IP65outdoor

The FoxESS S2500-G2 (S Series (G2)) is a small and compact single-phase inverter with a low start-up voltage and a wide voltage range. It supports up to 150% DC/AC and can be monitored remotely via smartphone app or web portal.

FoxESS, founded in 2019 and headquartered in Wenzhou, China, develops inverters and battery storage systems as part of the Tsingshan Holding Group.

Key features

Low start-up voltage, wide voltage range
14 A input current, up to 150% DC/AC
Small and compact
Remote monitoring via smartphone app or web portal (FoxCloud V2.0)
Single MPP tracker

Technical data

AC output
Rated power / apparent power	2.5kW / 2.75kVA
Grid connection	1-phase, 220/230/240V, 50/60Hz
Max. output current	12A
PV input
Max. PV power	3.75kW
Max. DC voltage / MPPT range	500V / 50–480V
MPPT	1x MPPT, 1 string per MPPT, max. 14A per MPPT
Max. short-circuit current	18A per MPPT
General
Efficiency (max / EU)	97.4% / 96.8%
Protection	IP65, AFCI: Optional
Dimensions / weight	290 × 220 × 116mm / 5.4kg
Operating temperature	-25 to +60°C
Communication	WIFI/ 4G (optional)

Downloads

Datasheet

Datasheet S2500-G2DE490 KB

Technical Data

Power	2.5kW
Phases	1P
MPPT	1x MPPT
AFCI	Optional
Ingress protection	IP65
