Product

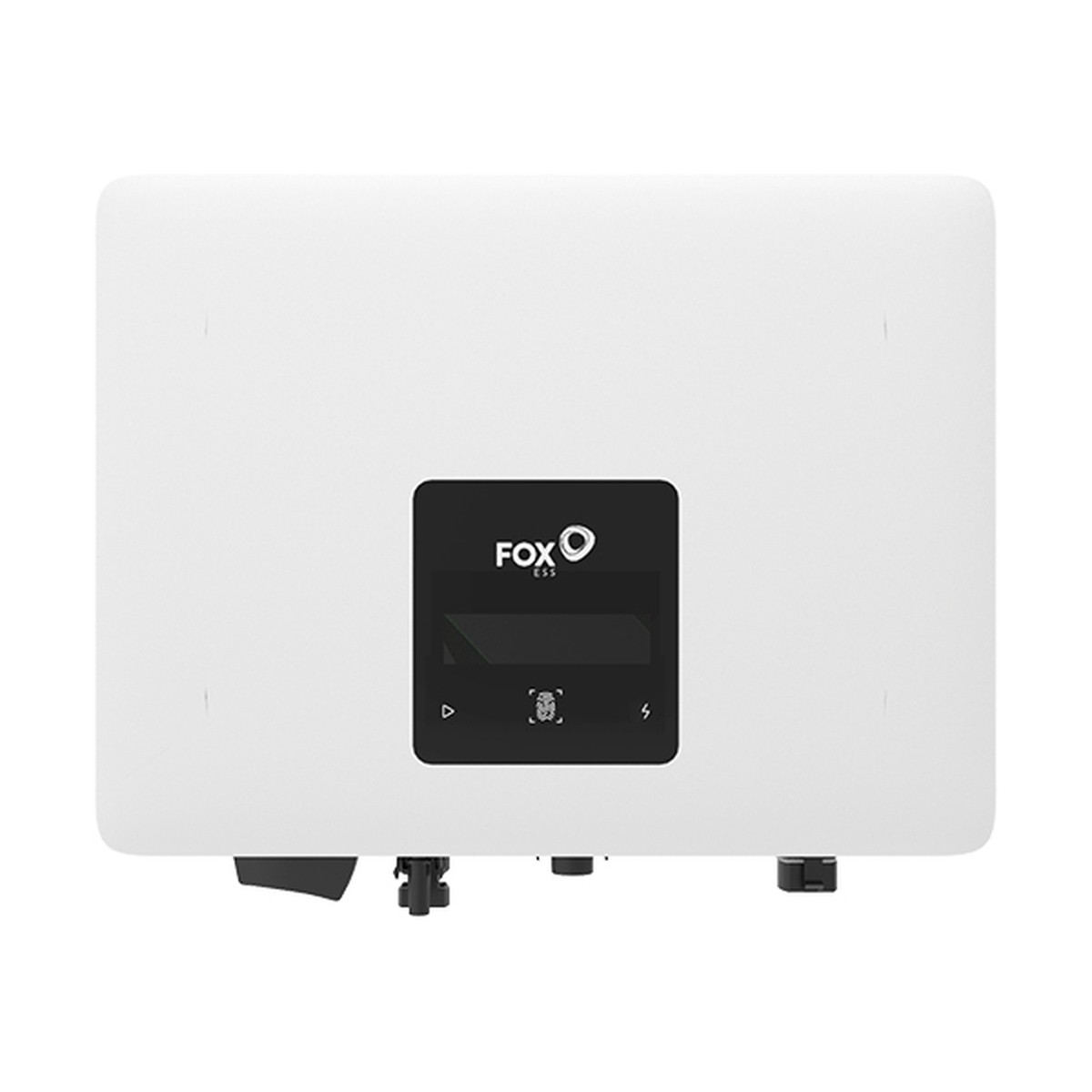

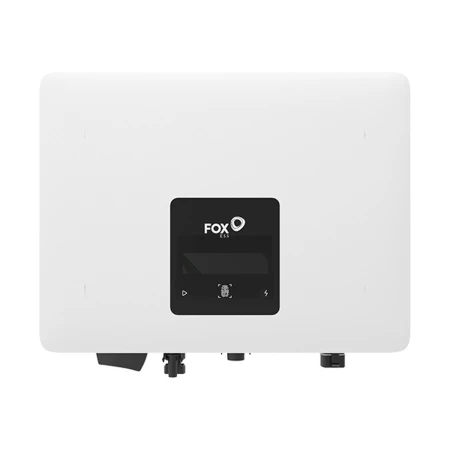

FoxESS S3000-G2 AFCI

3kW On-Grid PV Inverter

On-gridsystem
1xMPPT
4.5kWPV max
500Vdcsystem voltage
IP65outdoor

The FoxESS S3000-G2 AFCI (S Series (G2)) is a small and compact single-phase inverter with a low start-up voltage and a wide voltage range. It supports up to 150% DC/AC and can be monitored remotely via smartphone app or web portal.

FoxESS, founded in 2019 and headquartered in Wenzhou, China, develops inverters and battery storage systems as part of the Tsingshan Holding Group.

Technical data

AC output
Rated power / apparent power	3kW
Max. output current	14.3A
PV input
Max. PV power	4.5kW
Max. DC voltage / MPPT range	500V / 50–480V
MPPT	1x MPPT
General
Efficiency (max / EU)	97.40% / 96.80%
Protection	IP65
Dimensions / weight	290 × 220 × 116mm / 5.4kg

Downloads

Datasheet

Datasheet S3000-G2 AFCIEN87 KB

Technical Data

Power	3kW
Type	On-Grid
Phases	1P
MPPT	1x MPPT
