FoxESS T5-G3

Availability:

in stock

Delivery: choose country of delivery

Price: € 629.65

Net Price (without VAT)

Regular price:

629.65

quantity pcs.

product unavailable

add to wish list

Producer:

ID: FoxESS-T5-G3

Product

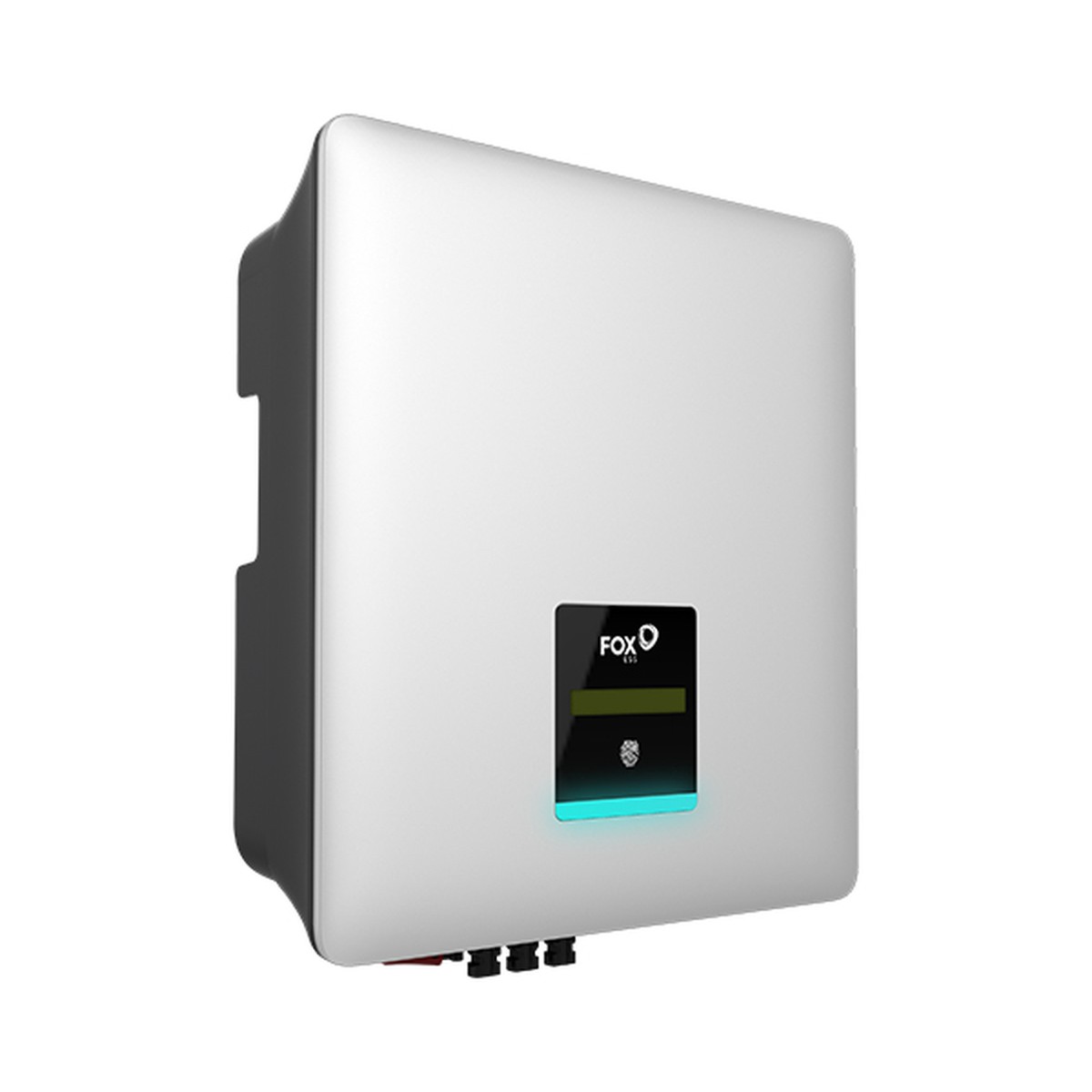

FoxESS T5-G3

5kW 3P On-Grid PV Inverter

On-gridsystem
3phases
2xMPPT
7.5kWPV max
1100Vdcsystem voltage
IP65outdoor
10 yearswarranty

Aimed at three-phase domestic and small-scale commercial installations, the FoxESS T5-G3 (T Series (G3)) is a three-phase inverter with a low start-up voltage and a wide voltage range. It is IP65 rated for outdoor installation and can be monitored remotely via smartphone app or web portal.

FoxESS, founded in 2019 and headquartered in Wenzhou, China, develops inverters and battery storage systems as part of the Tsingshan Holding Group.

Key features

Low start-up voltage, wide voltage range
Flexible configuration, plug and play set-up
IP65 rated, suitable for outdoor installation
Remote monitoring via smartphone app or web portal (FoxCloud V2.0)
Dual MPP trackers

Technical data

AC output
Rated power / apparent power	5kW / 5.5kVA
Grid connection	3-phase, 230/400V, 3L/N/PE
Max. output current	8.0A
PV input
Max. PV power	7.5kW
Max. DC voltage / MPPT range	1100V / 140–1000V
MPPT	2x MPPT, 1 string per MPPT, max. 14A per MPPT
General
Efficiency (max / EU)	98.6% / 97.8%
Protection	IP65, AFCI: Optional
Dimensions / weight	370 × 480 × 183.5mm / 17kg
Certificates	AS/NZS-4777.2, C10/11, EN 50549-1, PN EN-50549-1, VDE-AR-N4105, RD 1699, CEI 0-21
Warranty	10 years

Downloads

Datasheet

Datasheet T5-G3EN552 KB

Technical Data

Power	5kW
Phases	3P
MPPT	2x MPPT
AFCI	Optional
Ingress protection	IP65
