GoodWe GW10K-ET-20

Availability:

in stock

Delivery: choose country of delivery

Price: € 1,308.62

Net Price (without VAT)

Regular price:

1308.62

quantity pcs.

product unavailable

add to wish list

Producer:

ID: GoodWe-GW10K-ET-20

Product

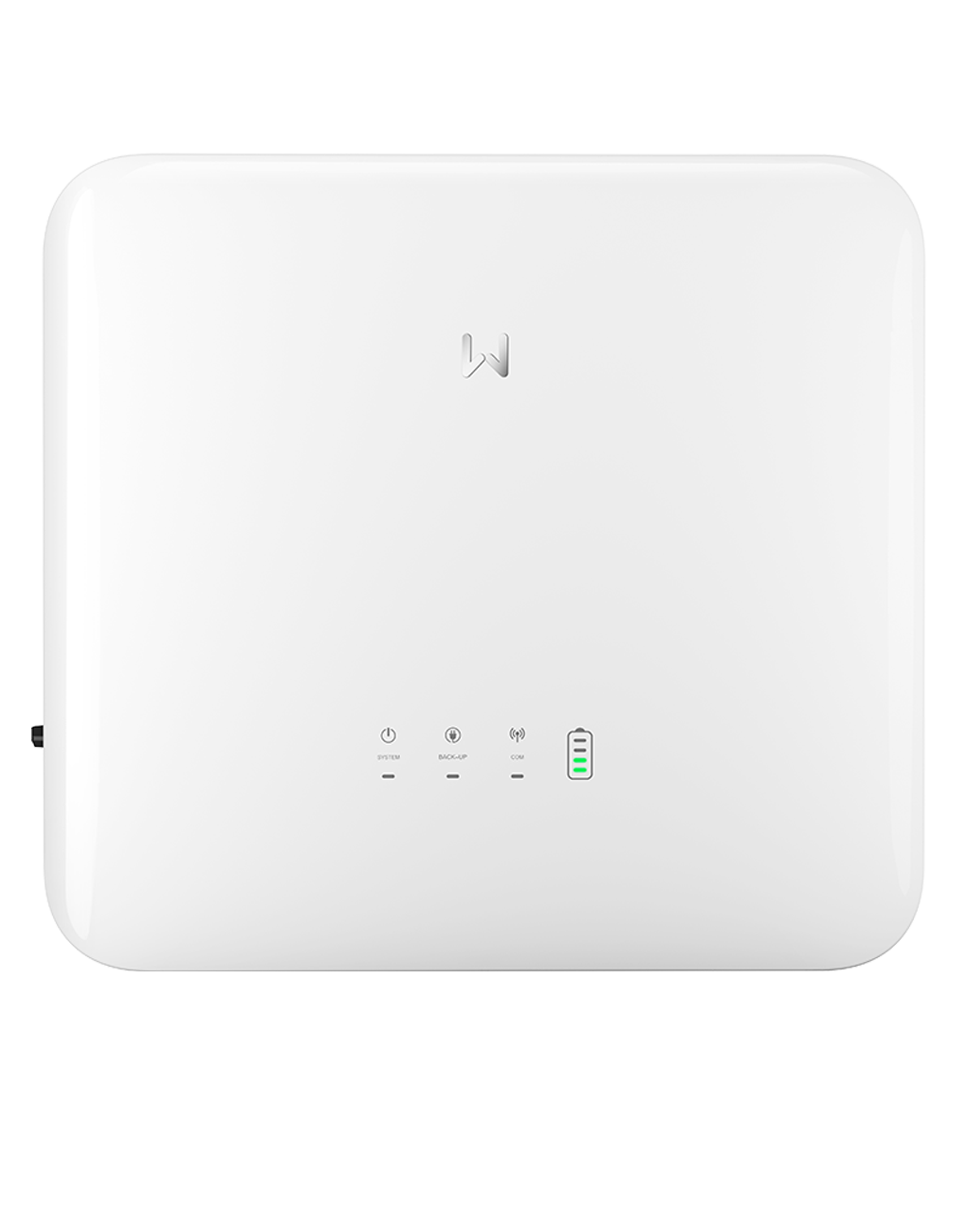

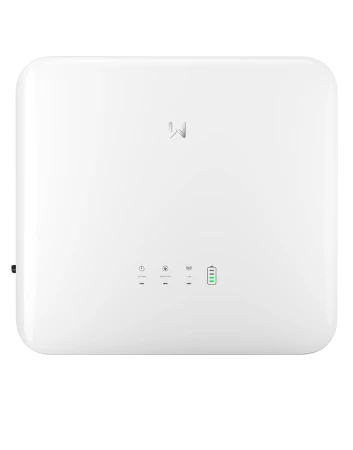

GoodWe GW10K-ET-20

10kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
3xMPPT
16kWPV max
1000Vdcsystem voltage
IP66outdoor

Designed for homeowners, the GoodWe GW10K-ET-20 (ET G2 series) is a three-phase high-voltage hybrid inverter with smart operation modes and powerful backup. It has an integrated smart meter and works with the GoodWe HV battery and GoodWe EV chargers.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Smart operation modes
Powerful backup
Integrated smart meter
Compatible with GoodWe HV battery and GoodWe EV chargers
Triple MPP trackers

Technical data

AC output
Rated power / apparent power	10kW / 10kVA
Grid connection	3-phase, 400/380V, 3L/N/PE, 50/60Hz
Max. output current	14.5A
PV input
Max. PV power	16kW
Max. DC voltage / MPPT range	1000V / 120–850V
MPPT	3x MPPT, 1 string per MPPT, max. 16A per MPPT
Max. short-circuit current	24A per MPPT
Battery
Battery type / voltage	150–720V
Backup	10kW
General
Efficiency (max / EU)	98.2% / 97.5%
Protection	IP66, AFCI: Optional
Dimensions / weight	496 × 460 × 221mm / 25kg
Operating temperature	-35 to +60°C

Downloads

Datasheet

Datasheet GW10K-ET-20EN385 KB

Technical Data

Power	10kW
Phases	3P
MPPT	3x MPPT
Backup	Yes
