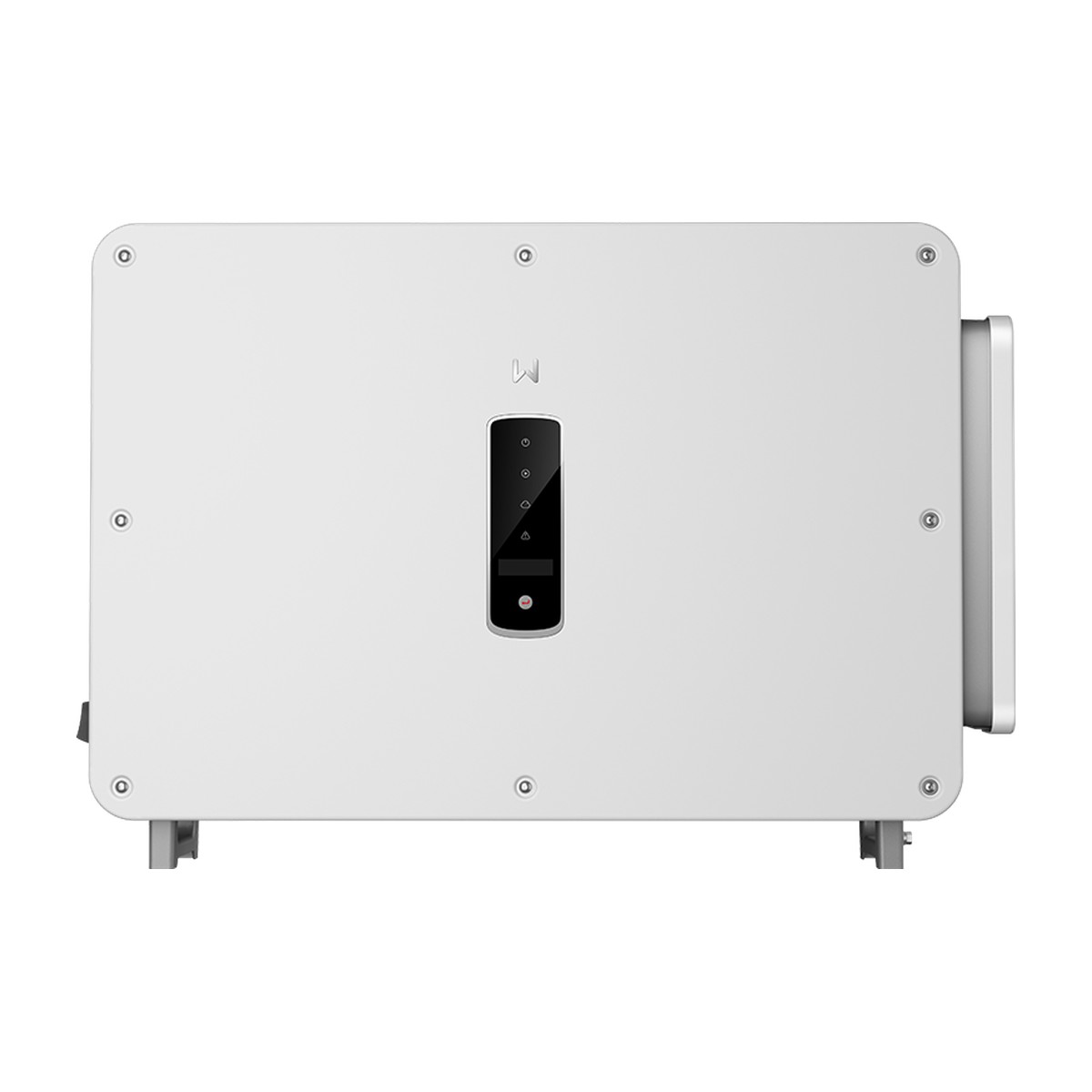

GoodWe GW125K-GT

125kW 3P On-Grid PV Inverter

On-gridsystem
3phases
10xMPPT
1100Vdcsystem voltage
IP66outdoor
88kgpalletized shipping

Designed for commercial and industrial PV applications, the GoodWe GW125K-GT (GT series) is a string inverter with high power density and up to 21A input current per string. Type II surge protection and full power up to 45°C support reliable operation.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Up to 21A input current per string
Type II surge protection
High power density
Full power up to 45°C
10 MPP trackers

Technical data

AC output
Rated power / apparent power	125kW / 137.5kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
Max. output current	198.5A (400V)
PV input
Max. DC voltage / MPPT range	1100V / 180–1000V
MPPT	10x MPPT, 2 strings per MPPT, max. 42A per MPPT
Max. short-circuit current	52.5A per MPPT
General
Efficiency (max / EU)	99% / 98.5%
Protection	IP66, AFCI: Optional
Dimensions / weight	930 × 650 × 300mm / 88kg
Operating temperature	-30 to +60°C
Communication	RS485, WiFi + LAN or 4G

Downloads

Datasheet

Datasheet GW125K-GTEN395 KB

Technical Data

Power	125kW
Phases	3P
MPPT	10x MPPT
AFCI	Optional
Ingress protection	IP66
