Product

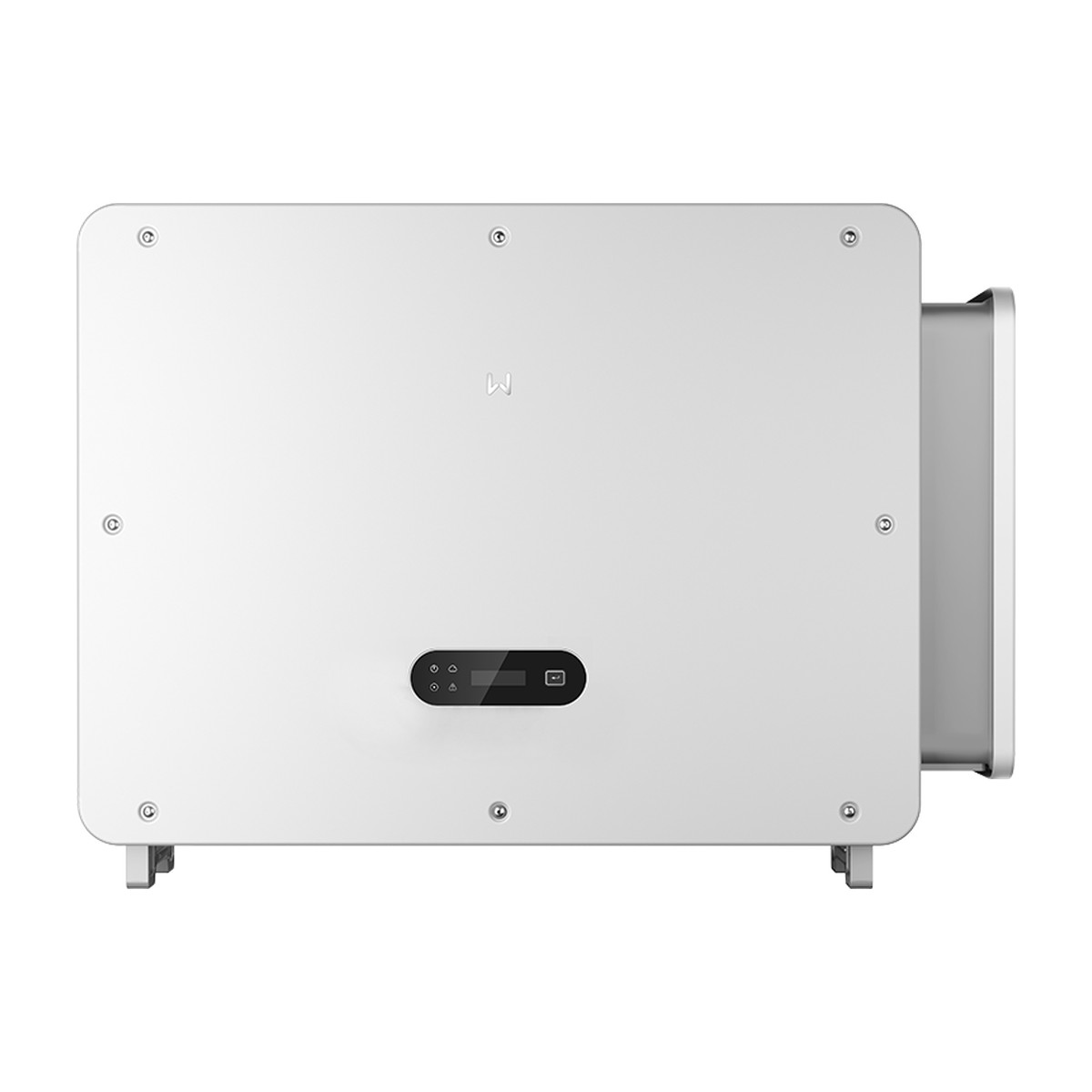

GoodWe GW150K-GT-G10

150kW 3P On-Grid PV Inverter

On-gridsystem
3phases
10xMPPT
1100Vdcsystem voltage
IP66outdoor
99kgpalletized shipping

Built for large-scale commercial and industrial applications, the GoodWe GW150K-GT-G10 (GT series) is a string inverter with 21A input current per string. It includes AI-driven AFCI 3.0 and a DC smart circuit breaker.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

21A input current per string
AI-driven AFCI 3.0
DC smart circuit breaker
10 MPP trackers

Technical data

AC output
Rated power / apparent power	150kW / 165kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
PV input
Max. DC voltage / MPPT range	1100V / 180–1000V
MPPT	10x MPPT, 2 strings per MPPT, max. 42A per MPPT
Max. short-circuit current	52.5A per MPPT
General
Efficiency (max / EU)	99% / 98.5%
Protection	IP66, AFCI: Optional
Dimensions / weight	995 × 758 × 358mm / 99kg
Operating temperature	-30 to +60°C
Communication	RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth

Downloads

Datasheet

Datasheet GW150K-GT-G10EN461 KB

Technical Data

Power	150kW
Phases	3P
MPPT	10x MPPT
AFCI	Optional
Ingress protection	IP66
