GoodWe GW25K-ET

Availability:

in stock

Delivery: choose country of delivery

Price: € 2,543.94

Net Price (without VAT)

Regular price:

2543.94

quantity pcs.

product unavailable

add to wish list

Producer:

ID: GoodWe-GW25K-ET

Product

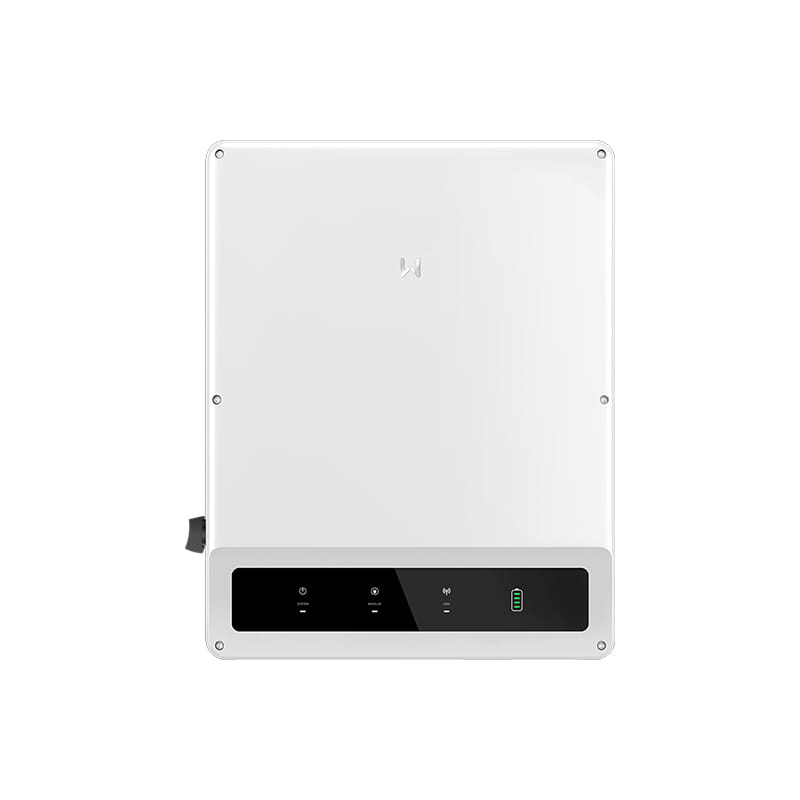

GoodWe GW25K-ET

25kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
3xMPPT
37.5kWPV max
1000Vdcsystem voltage
IP66outdoor
54kgpalletized shipping

Ideal for large residential or small commercial and industrial applications, the GoodWe GW25K-ET (ET series) is a three-phase high-voltage hybrid inverter with peak shaving. An integrated dry contact can activate external loads such as heat pumps, and AFCI is available as an option.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Integrated dry contact for external loads
Peak shaving
Type II SPD on DC side
AFCI optional
Max. 15A DC input current per string
Up to 150% DC input oversizing
Triple MPP trackers

Battery compatibility

Battery: Lithium (RS485 / CAN)
Battery voltage: 200–800V

Technical data

AC output
Rated power / apparent power	25kW / 27.5kVA
Grid connection	3-phase, 380/400V, 3L/N/PE
Max. output current	39.9A
PV input
Max. PV power	37.5kW
Max. DC voltage / MPPT range	1000V / 200–850V
MPPT	3x MPPT, 2 strings per MPPT, max. 30A per MPPT
Battery
Compatible batteries	Lithium (RS485 / CAN), 200–800V
Backup	25kW
General
Efficiency (max / EU)	98.0% / 97.5%
Protection	IP66, AFCI: Optional, SPD: DC Type II, AC Type III
Dimensions / weight	520 × 660 × 220mm / 54kg
Operating temperature	-35 to +60°C
Communication	WiFi, LAN, Bluetooth, RS485

Downloads

Datasheet

Datasheet GW25K-ETEN576 KB

Technical Data

Power	25kW
Phases	3P
MPPT	3x MPPT
Backup	Yes

Safety
