GoodWe GW40K-ET-10

Availability:

in stock

Delivery: choose country of delivery

Price: € 3,285.80

Net Price (without VAT)

Regular price:

3285.80

quantity pcs.

product unavailable

add to wish list

Producer:

ID: GoodWe-GW40K-ET-10

Product

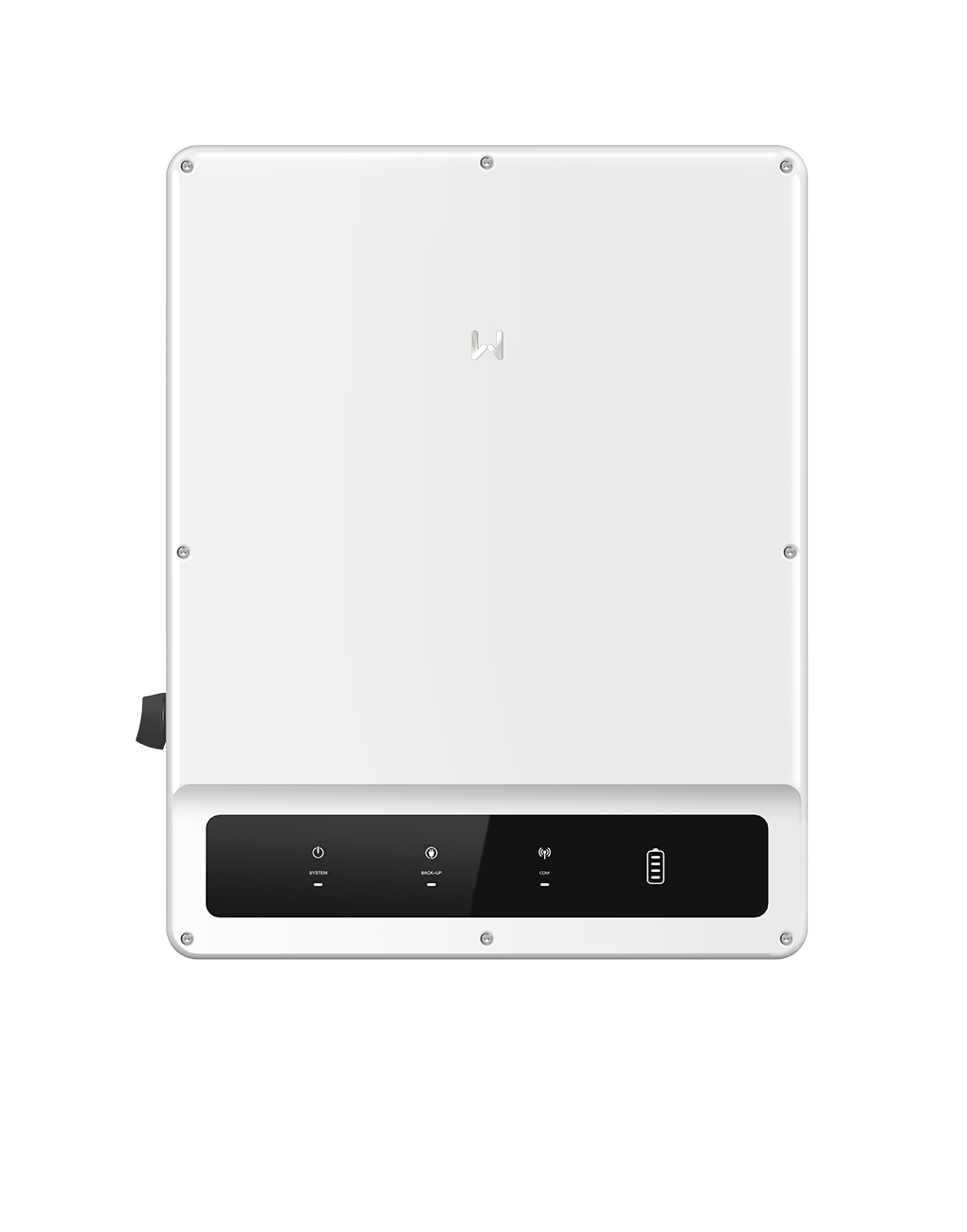

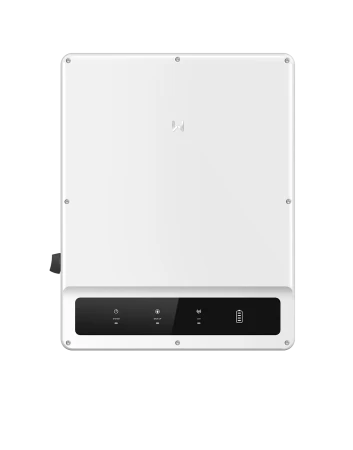

GoodWe GW40K-ET-10

40kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
3xMPPT
60kWPV max
1000Vdcsystem voltage
IP66outdoor
62kgpalletized shipping

Designed for commercial and industrial energy storage, the GoodWe GW40K-ET-10 (ET50 series) is a hybrid inverter with parallel connection for on-grid and off-grid setups. Combined with the STS box it switches to backup mode, and it pairs with the GoodWe Lynx C battery system.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Parallel connection
Peak shaving and grid support
Backup with STS box
Compatible with GoodWe Lynx C battery system
Triple MPP trackers

Technical data

AC output
Rated power / apparent power	40kW / 40kVA
Grid connection	3-phase, 380/400V, 3L/N/PE, 50/60Hz
Max. output current	60.6 / 58.0A (380 / 400V)
PV input
Max. PV power	60kW
Max. DC voltage / MPPT range	1000V / 165–850V
MPPT	3x MPPT, 2 strings per MPPT, max. 42/32/42A per MPPT
Max. short-circuit current	55/42/55A per MPPT
Battery
Battery type / voltage	200–800V
Backup	40kW
General
Efficiency (max / EU)	98.1% / 97.5%
Protection	IP66, AFCI: Optional
Dimensions / weight	520 × 660 × 260mm / 62kg
Operating temperature	-35 to +60°C

Downloads

Datasheet

Datasheet GW40K-ET-10EN535 KB

Technical Data

Power	40kW
Phases	3P
MPPT	3x MPPT
Backup	Yes
