Product

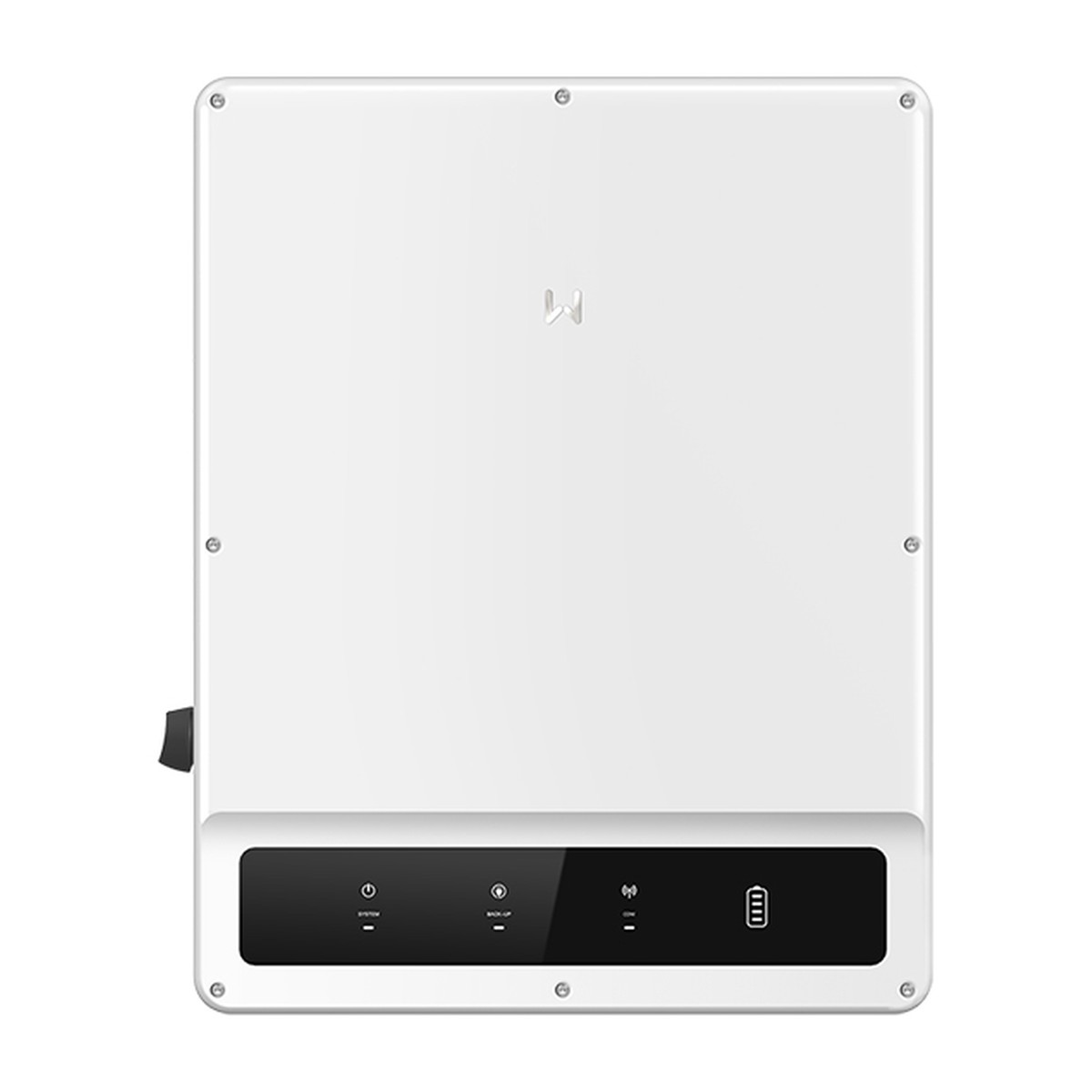

GoodWe GW50K-ET-10

50kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
4xMPPT
75kWPV max
1000Vdcsystem voltage
IP66outdoor
65kgpalletized shipping

Designed for commercial and industrial energy storage, the GoodWe GW50K-ET-10 (ET50 series) is a hybrid inverter with parallel connection for on-grid and off-grid setups. Combined with the STS box it switches to backup mode, and it pairs with the GoodWe Lynx C battery system.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Parallel connection
Peak shaving and grid support
Backup with STS box
Compatible with GoodWe Lynx C battery system
Quad MPP trackers

Technical data

AC output
Rated power / apparent power	50kW / 50kVA
Grid connection	3-phase, 380/400V, 3L/N/PE, 50/60Hz
Max. output current	75.8 / 72.5A (380 / 400V)
PV input
Max. PV power	75kW
Max. DC voltage / MPPT range	1000V / 165–850V
MPPT	4x MPPT, 2 strings per MPPT, max. 42/32/42/32A per MPPT
Max. short-circuit current	55/42/55/42A per MPPT
Battery
Battery type / voltage	200–800V
Backup	50kW
General
Efficiency (max / EU)	98.1% / 97.5%
Protection	IP66, AFCI: Optional
Dimensions / weight	520 × 660 × 260mm / 65kg
Operating temperature	-35 to +60°C

Downloads

Datasheet

Datasheet GW50K-ET-10EN535 KB

Technical Data

Power	50kW
Phases	3P
MPPT	4x MPPT
Backup	Yes
