GoodWe GW6K-ETA-G20

Availability:

in stock

Delivery: choose country of delivery

Price: € 1,324.92

Net Price (without VAT)

Regular price:

1324.92

quantity pcs.

product unavailable

add to wish list

Producer:

ID: GoodWe-GW6K-ETA-G20

Product

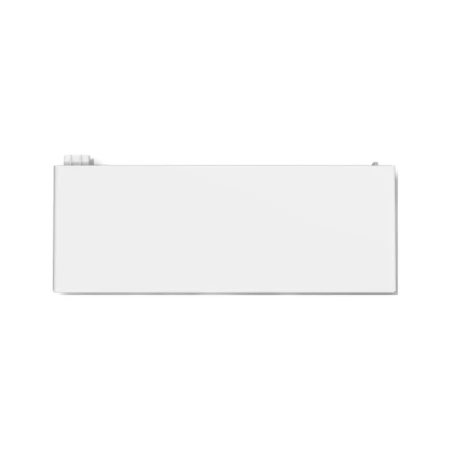

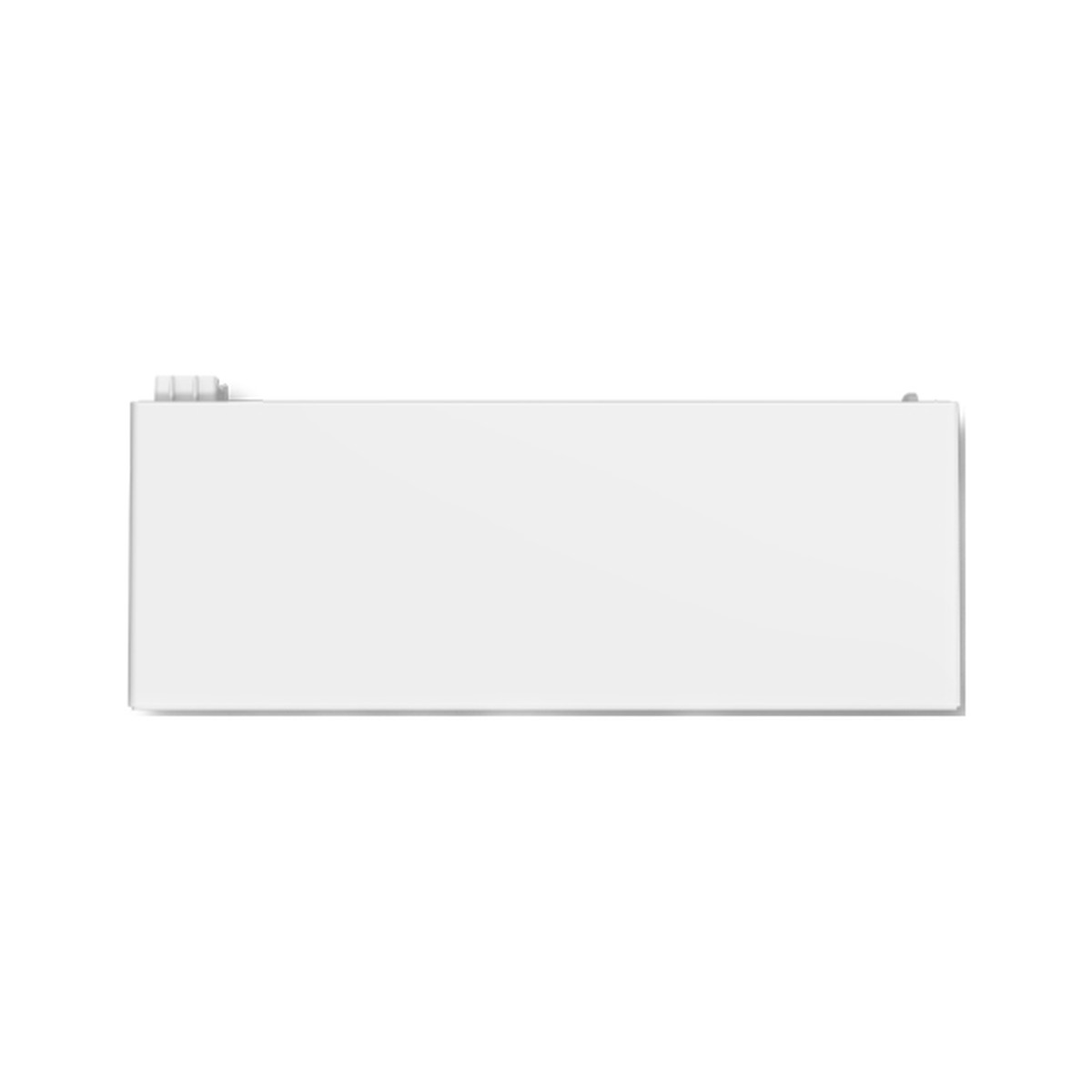

GoodWe GW6K-ETA-G20

6kW 3P Hybrid PV Inverter

Hybridsystem
3phases
12kWPV max
1000Vdcsystem voltage
IP66outdoor
34kgpalletized shipping

The GoodWe GW6K-ETA-G20 (ESA series) is a three-phase all-in-one (HV) system with whole-home backup and backup switching in under 4 ms. Battery capacities from 5 to 108 kWh can be mixed, and the system is IP66 protected.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

Backup switching < 4 ms
Whole-home backup with 80A bypass current
DC oversizing and AC backup overload
Mix of battery capacities, 5–108 kWh
IP66 protection
STS ready

Technical data

AC output
Rated power / apparent power	6kW / 6kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
PV input
Max. PV power	12kW
Max. DC voltage / MPPT range	1000V / 120–950V
General
Efficiency (max / EU)	98% / 96.9%
Protection	IP66, AFCI: Optional
Dimensions / weight	800 × 340 × 270mm / 34kg
Operating temperature	-35 to +60°C
Communication	RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth (Optional)

Downloads

Datasheet

Datasheet GW6K-ETA-G20EN1.2 MB

Technical Data

Power	6kW
Phases	3P
Backup	Yes
