GoodWe GW8000-SDT-30

Availability:

in stock

Delivery: choose country of delivery

Price: € 710.92

Net Price (without VAT)

Regular price:

710.92

quantity pcs.

product unavailable

add to wish list

Producer:

ID: GoodWe-GW8000-SDT-30

Product

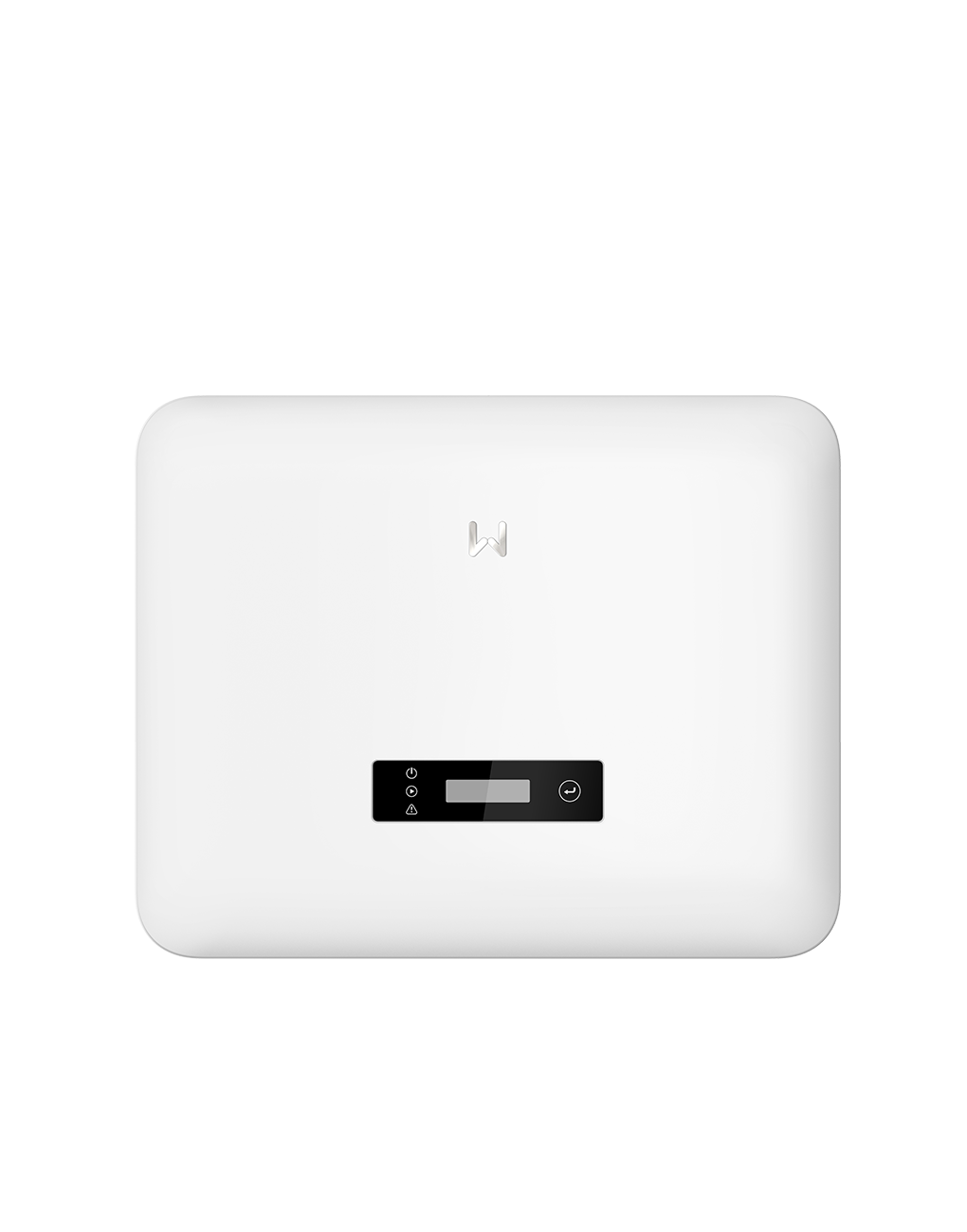

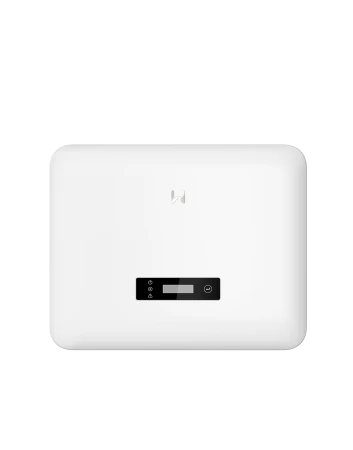

GoodWe GW8000-SDT-30

8kW 3P On-Grid PV Inverter

On-gridsystem
3phases
2xMPPT
1100Vdcsystem voltage
IP66outdoor

Designed for three-phase residential and small commercial systems with high-power PV modules, the GoodWe GW8000-SDT-30 (SDT G3 series) is a string inverter that allows high current input. It is designed for silent operation and offers an optional AFCI 3.0 function and optional Type II surge protection on both AC and DC sides.

GoodWe, founded in 2010 in Suzhou, China, has focused on PV and energy storage inverters and has been listed on the Shanghai Stock Exchange STAR Market (688390) since 2020.

Key features

110% AC power
Optional AFCI 3.0 function
Optional Type II surge protection on AC and DC side
Smart energy management with GoodWe accessories
Designed for silent operation
Dual MPP trackers

Technical data

AC output
Rated power / apparent power	8kW / 8.8kVA
Grid connection	3-phase, 230/400V, 3L/N/PE, 50/60Hz
Max. output current	13.4A
PV input
Max. DC voltage / MPPT range	1100V / 140–1000V
MPPT	2x MPPT
General
Efficiency (max / EU)	98.5% / 98%
Protection	IP66, AFCI: Optional
Dimensions / weight	491 × 392 × 210mm / 14.7kg
Operating temperature	-30 to +60°C
Communication	RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth (Optional)

Downloads

Datasheet

Datasheet GW8000-SDT-30EN369 KB

Technical Data

Power	8kW
Phases	3P
MPPT	2x MPPT
AFCI	Optional
Ingress protection	IP66
