Growatt ARK 20.4XH

Availability:

in stock

Delivery: choose country of delivery

Price: € 4,976.65

Net Price (without VAT)

Regular price:

4976.65

quantity pcs.

product unavailable

add to wish list

Producer: Growatt

ID: Growatt-ARK-20.4XH

Product

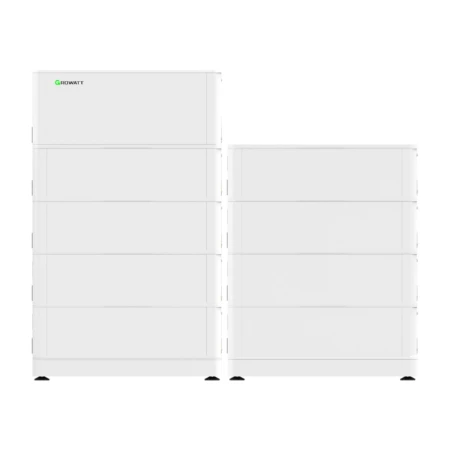

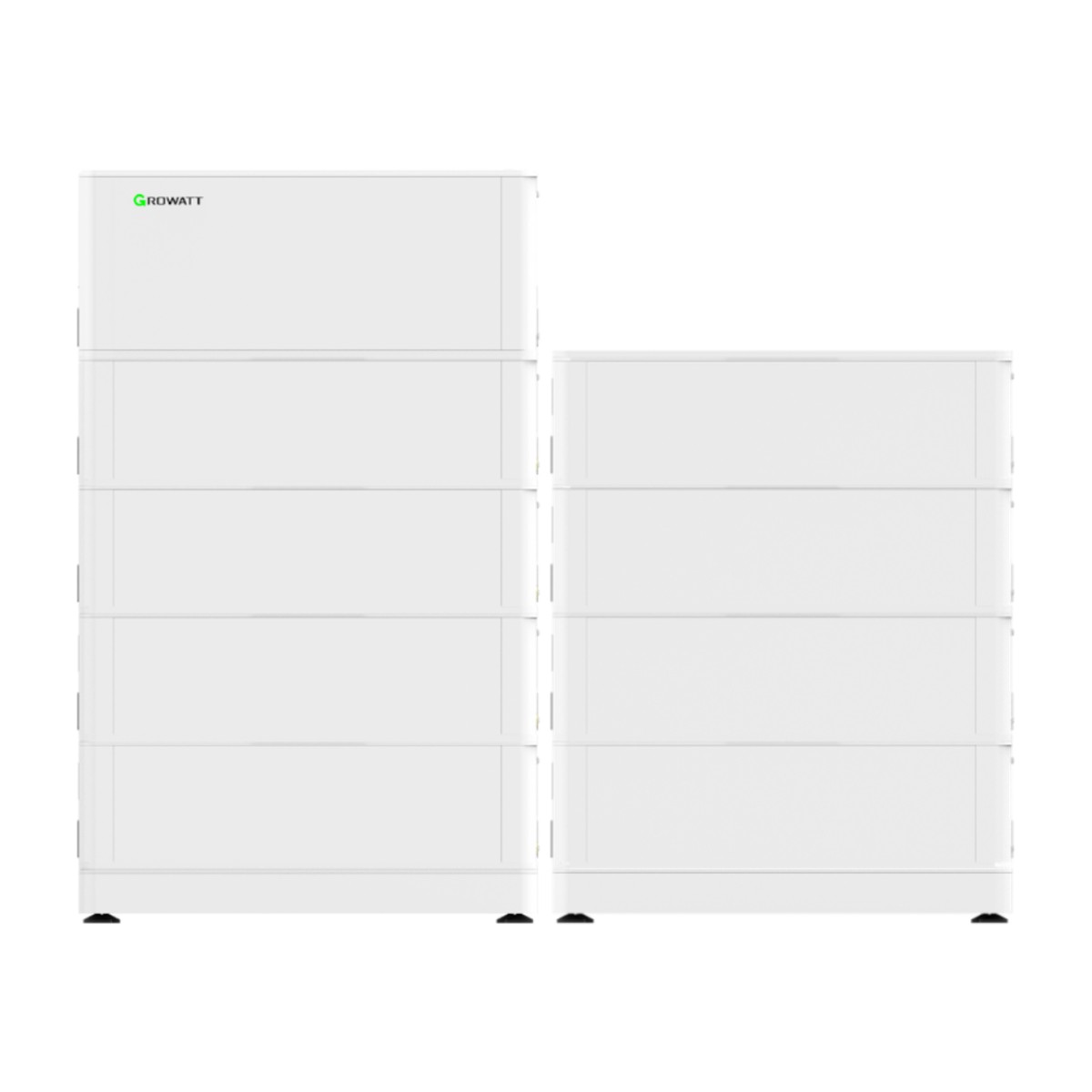

Growatt ARK 20.4XH

20.48kWh HV Battery System | Inverters: MIN-XH, MIN-XH2, MOD-XH

HVbattery
20.48kWhnominal
400Vnominal
LFPchemistry
IP65protection
10 yearswarranty
239kgpalletized shipping

The Growatt ARK 20.4XH (Growatt ARK XH series) is a high-voltage battery system for Growatt MIN-XH and MOD-XH inverters, built from ARK 2.5H-A1 modules in a stacked design. The cobalt-free LiFePO4 battery offers flexible capacity options and remote firmware upgrade.

Key features

Compatible with MIN-XH and MOD-XH series inverters
Flexible capacity options, 5.12 kWh to 25.6 kWh
Cobalt-free LiFePO4 battery
Modular and stacked design, easy installation
Remote firmware upgrade
10 years warranty

Inverter compatibility

Growatt MIN-XH
Growatt MIN-XH2
Growatt MOD-XH

Technical data

Nominal energy	20.48kWh / usable 18.42kWh
Nominal voltage	400V
Operating voltage range	360–550V
Max. output power	10kW
Peak output power	20kW, 10s
Battery modules	8
Communication (power module)	CAN/RS485
Protection	IP65
Operating temperature	-10 to +50°C
Dimensions / weight	650 × 1740 × 260mm / 239kg
Mounting	Wall-mounted or Floor installation
Certifications	IEC62619(Cell&Pack)/CE/CEC/RCM/UN38.3
Warranty	10 years

Set contents: 1 × power module BDC 95045-A1 + 8 × battery module ARK 2.5H-A1 (2.56 kWh, 51.2 V, 28 kg).

Downloads

Datasheet

Datasheet ARK 20.4XHEN3.4 MB

Technical Data

Capacity	20.4kWh
Voltage class	HV
Type	Module

Safety
