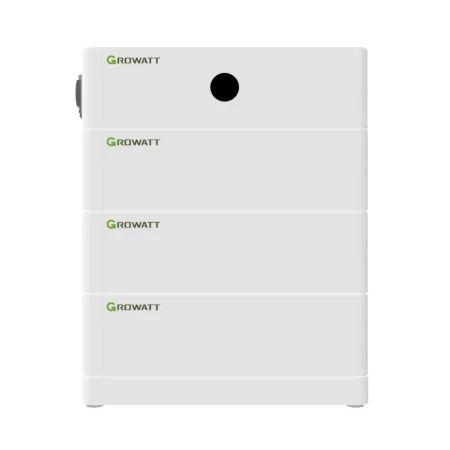

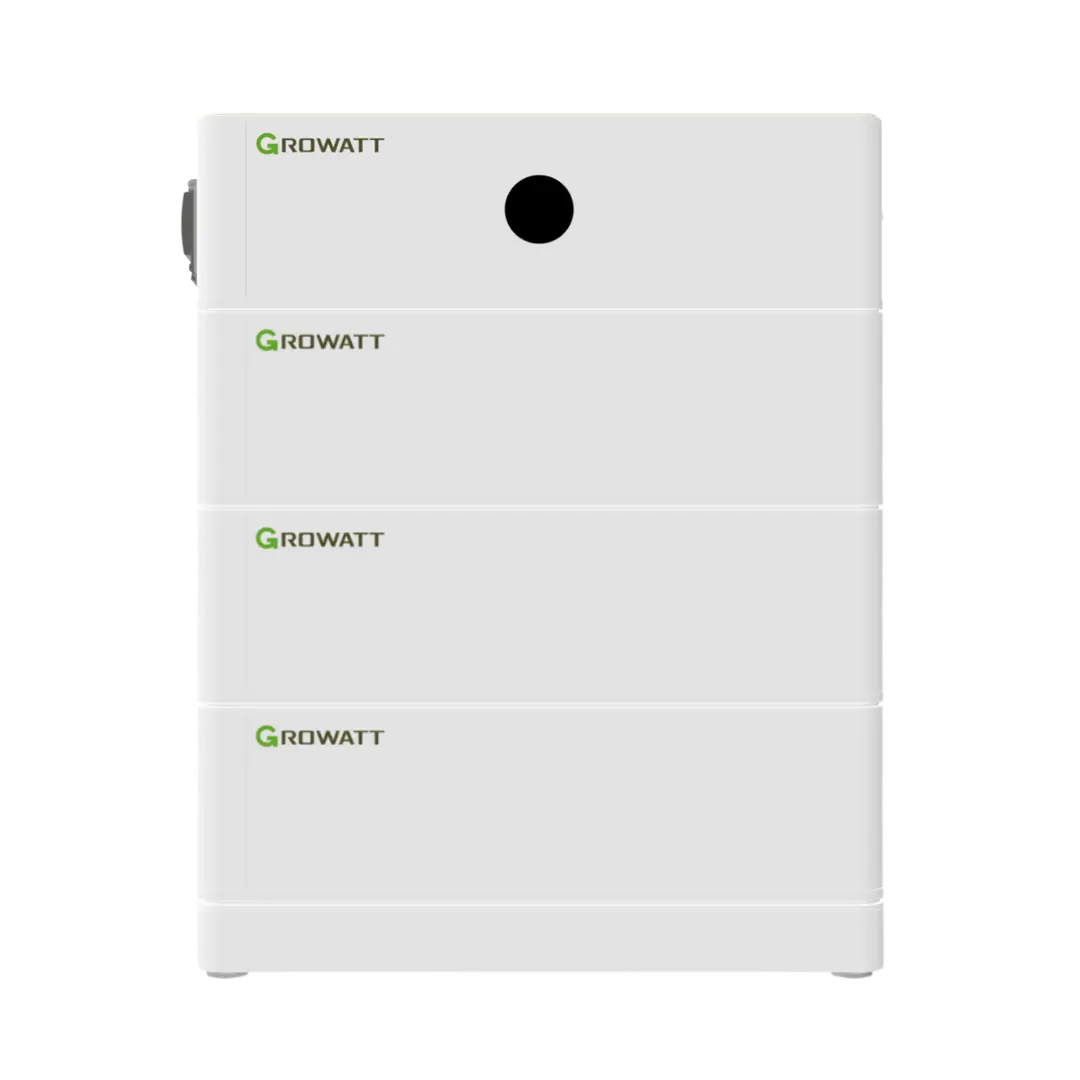

Growatt ARK 7.6H-A2 HV Battery Set

Growatt ARK7.6 HV Battery System for SPH BH-UP Inverter

Availability:

in stock

Delivery: choose country of delivery

Price: € 1,810.68

Net Price (without VAT)

Regular price:

1810.68

quantity pcs.

product unavailable

add to wish list

Producer: Growatt

ID: Growatt-ARK-7.6H-A2

Product

Growatt ARK 7.6H-A2 HV Battery Set

3x ARK 2.5H-A2 + 1x HVC 60050-C2 (Base and Cable) – 7.68kWh High Voltage Battery System for Growatt SPH 4000-10000TL3 BH-UP

Set contents

3x Growatt ARK 2.5H-A2 High-Voltage Battery Module (2.56kWh, 51.2V / 50Ah each)
1x Growatt HVC 60050-C2 BMS Controller (Base and Cable) - package includes 1x ARK Battery Base and the battery-to-inverter cable

System

Compatible with Growatt SPH 4000-10000TL3 BH-UP inverters (ARK HV system with HVC 60050-C2)
Nominal energy 7.68kWh (3x 2.56kWh); ARK HV system expandable from 7.68kWh to 25.6kWh (3 to 10 modules)
Excellent safety of cobalt free LiFePO4 battery
Easy installation with modular and stacked design
Remote firmware upgrade

Downloads:

Safety

Delivery costs Approx delivery costs, please choose your country of delivery

Country of delivery:

Growatt SPH 4000TL3 BH-UP

3-phase 4kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 4.000W (max. 4.000VA)

AC output voltage: 400V/50Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 6000W per MPPT

Efficiency: 97.6%, 2x MPPT, IP65, RS232

Dimensions: 458x565x188mm, 31 kg

Warranty: 5/10 years

Price:

€ 972.64

Net Price (without VAT)

Growatt SPH 5000TL3 BH-UP

3-phase 5kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 5.000W (max. 5.000VA)

AC output voltage: 400V/50Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 7500W per MPPT

Efficiency: 97.8%, 2x MPPT, IP65, RS232

Dimensions: 458x565x188mm, 31 kg

Warranty: 5/10 years

Price:

€ 996.16

Net Price (without VAT)

Growatt SPH 6000TL3 BH-UP

3-phase 6kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 6.000W (max. 6.000VA)

AC output voltage: 400V/50Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 9000W per MPPT

Efficiency: 98.0%, 2x MPPT, IP65, RS232

Dimensions: 458x565x188mm, 31 kg

Warranty: 5/10 years

Price:

€ 1,008.70

Net Price (without VAT)

Growatt SPH 7000TL3 BH-UP

3-phase 7kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 7.000W (max. 7.000VA)

AC output voltage: 400V/50Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 10500W per MPPT

Efficiency: 98.2%, 2x MPPT, IP65, RS232

Dimensions: 458x565x188mm, 31 kg

Warranty: 5/10 years

Price:

€ 1,015.92

Net Price (without VAT)

Growatt SPH 8000TL3 BH-UP

3-phase 8kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 8.000W (max. 8.000VA)

AC output voltage: 400V/50Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 12000W per MPPT

Efficiency: 98.2%, 2x MPPT, IP65, RS232

Dimensions: 458x565x188mm, 31 kg

Warranty: 5/10 years

Price:

€ 1,054.87

Net Price (without VAT)

Growatt SPH 10000TL3 BH-UP

3-phase 10kW hybrid inverter inverter
SPH series is an full hybrid inverter (all in one) panels>inverter/batteries>AC-home

UPS level, hight voltage battery

AC nominal power: 10.000W (max. 10.000VA)

AC output voltage: 400V/60Hz adjustable (three phase)

DC input max voltage: 1000V

DC input max power: 13.000W per MPPT

Efficiency: 98.2%, 2x MPPT, IP65, RS232

Dimensions: 505x453x198mm, 28 kg

Warranty: 5/10 years

Price:

€ 1,130.40

Net Price (without VAT)
