Growatt MIC 1500 TL-X

Availability:

require pre order (leding time ~4 weeks)

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 324.18 324.18

Net Price (without VAT)

quantity pcs.

product unavailable

Producer:

Product code: Growatt MIC 1500 TL-X

ask about product

Description

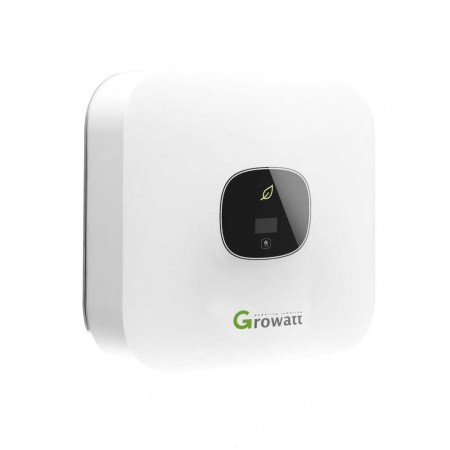

Growatt MIC 100 TL-X

1-phase PV solar inverter 1.5kW (230V/50Hz)

Growatt was founded in 2010 and is a worldwide leader of smart energy solutions. Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers.

The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.

Growatt MIC 1500TL-X Single Phase Inverter 1500kW

- single phase grid-tied inverter
- light and compact residential inverter
- one MPPT design, compact and cost effective solution
- user friendly
- OLED and touch button
- AFCI function optional
- safe and reliable multiple protection and detection
- IP65
- natural cooling

Download

Growatt MIC 1500 TL-X - Datasheet

Growatt MIC 1500 TL-X - User Manual

Growatt MIC 1500 TL-X - Certificate

Technical Data

Model	MIC 750TL-X \| MIC 1000TL-X \| MIC 1500TL-X \| MIC 2000TL-X \| MIC 2500TL-X \| MIC 3000TL-X \| MIC 3300TL-X
Max. recommended PV power	1050W \| 1400W \| 2100W \| 2800W \| 3500W \| 4200W \| 4290W
Max. DC voltage	500V \| 500V \| 500V \| 500V \| 550V \| 550V \| 550V
Start voltage	50V \| 50V \| 50V \| 50V \| 80V \| 80V \| 80V
Nominal voltage	120V \| 180V \| 250V \| 360V \| 360V \| 360V \| 360V
MPP voltage range	50V-500V \| 50V-500V \| 50V-500V \| 50V-500V \| 65V-550V \| 65V-550V \| 65V-550V
No. of MPP trackers	1
Max. input current per MPP tracker	13A
AC nominal power	750W \| 1000W \| 1500W \|2000W \| 2500W \| 3000W \| 3300W
Nominal AC voltage	230V (180-280V) \| 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current (AC)	3.6A \| 4.8A \| 7.1A \| 9.5A \| 11.9A \| 14.3A \| 14.3A
Max.efficiency	97.4% \| 97.4% \| 97.4% \| 97.4% \| 97.6% \| 97.6% \| 97.6%
AC/DC surge protection	Type III / Type III
Weight	6kg \| 6kg \| 6kg \| 6kg \| 6.2kg \| 6.2kg \| 6.2kg
Dimensions	274/254/138mm
Protection degree	IP65
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years	Yes /Optional
