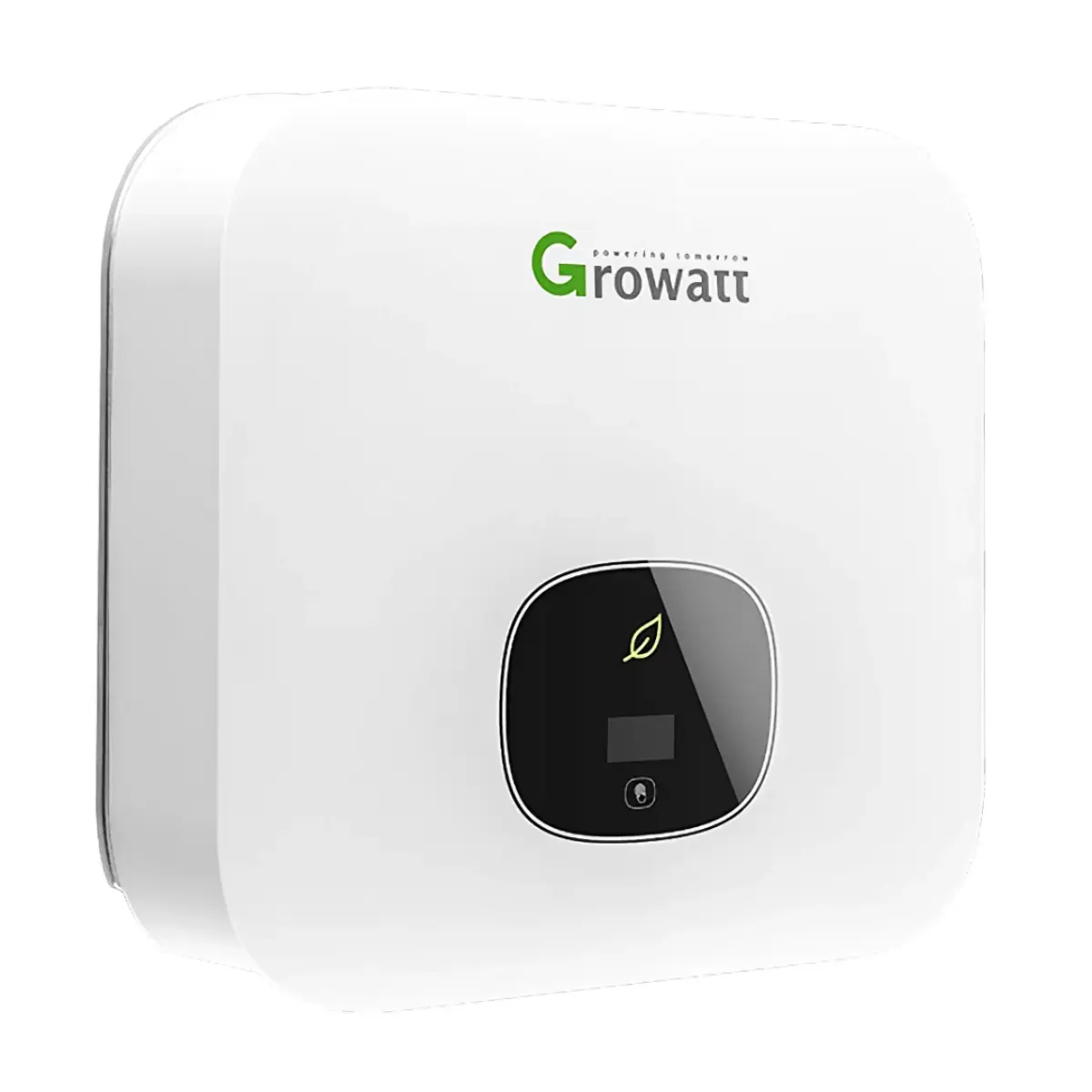

Growatt MIN 6000TL-XH2

Growatt MIN 6000TL-XH2

6kW 1P Hybrid PV Inverter | Battery System: Growatt APX HV / Growatt ARK XH

• Hybridsystem
• 1phase
• APX / ARK XHbattery
• 2xMPPT
• 10kWPV max
• 550Vdcsystem voltage
• IP66outdoor
• 10 yearswarranty

Battery ready, the Growatt MIN 6000TL-XH2 (MIN-XH2 series) is a single-phase inverter with dual MPP trackers. It handles string currents up to 16A, has Type II surge protection on the DC side and supports 24h self-consumption monitoring.

Growatt was ranked No. 1 worldwide in 2025 shipments of hybrid split-type energy storage inverters (Frost & Sullivan) and is an S&P Global Energy Tier 1 PV inverter supplier for 2026.

Key features

• Dual MPP trackers
• Type II SPD on DC side
• String current up to 16A
• Battery ready
• 24h self-consumption monitoring

Battery compatibility

• Battery: Growatt APX HV 1.0, Growatt APX HV 2.0
• Capacity: 5kWh-30kWh
• Battery modules: 1-6 units in 1 cluster (APX HV 1.0); 1 master module + 0-5 battery modules (APX HV 2.0)
• Power module (BMS): APX (APX HV 1.0)
• Installation: APX battery base; APX wall bracket (APX HV 1.0)
• Datalogger: Growatt Shine datalogger
• Meter: Growatt single-phase smart meter, Growatt three-phase smart meter
• Backup box: Growatt SYN backup box

• Battery: Growatt ARK XH
• Capacity: 5.12kWh-17.92kWh
• Battery modules: 2-7 units
• Power module (BMS): BDC
• Installation: ARK battery base, ARK wall bracket
• Datalogger: Growatt Shine datalogger
• Meter: Growatt single-phase smart meter
• Backup box: Growatt SYN backup box

Technical data

Downloads

Datasheet

• Datasheet MIN 2500-6000 TL-XH2EN1.6 MB

Manuals

• User manualEN6.2 MB
• Installation guideEN6.5 MB
