Growatt MOD 3000TL3-XH(BP)

Availability:

running out

Delivery: choose country of delivery

Price: € 763.06

Net Price (without VAT)

Regular price:

763.06

quantity pcs.

product unavailable

add to wish list

Producer: Growatt

ID: Growatt-MOD-3000TL3-XH-BP

Product

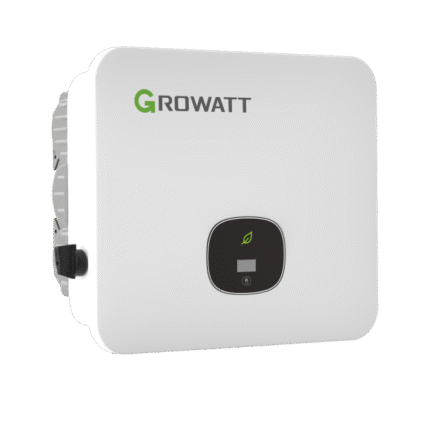

Growatt MOD-3000TL3-XH-BP

3kW 3P Hybrid PV Inverter | Battery System: Growatt APX HV

Hybridsystem
3phases
APXbattery
6kWPV max
1100Vdcsystem voltage
IP66outdoor
5 yearswarranty

The Growatt MOD-3000TL3-XH-BP (MOD-XH(BP)) is a battery-ready three-phase inverter for the Growatt APX HV battery system (5 to 30 kWh); the BP version supports a backup function with a backup box. It has two MPP trackers, Type II surge protection on the DC and AC side and 24h self-consumption monitoring.

Growatt was ranked No. 1 worldwide in 2025 shipments of hybrid split-type energy storage inverters (Frost & Sullivan) and is an S&P Global Energy Tier 1 PV inverter supplier for 2026.

Key features

Battery ready (APX HV 5–30 kWh)
Dual MPP trackers
Type II SPD on DC and AC side
24h self-consumption monitoring
Backup function (BP version, with backup box)
IP66, natural convection cooling

Battery compatibility

Battery: Growatt APX HV 1.0, Growatt APX HV 2.0
Capacity: 5kWh-30kWh
Battery modules: 1-6 units in 1 cluster (APX HV 1.0); 1 master module + 0-5 battery modules (APX HV 2.0)
Power module (BMS): APX (APX HV 1.0)
Installation: APX battery base; APX wall bracket (APX HV 1.0)
Datalogger: Growatt Shine datalogger
Meter: Growatt three-phase smart meter
Backup box: Growatt SYN backup box

Technical data

AC output
Rated power / apparent power	3kW / 3.3kVA
Grid connection	3-phase
Max. output current	5A
PV input
Max. PV power	6kW
Max. DC voltage / MPPT range	1100V / 140–1000V
MPPT	max. 16A per MPPT
Max. short-circuit current	20A per MPPT
Battery
Compatible batteries	Growatt APX HV (1.0 / 2.0)
Battery type / voltage	HV, 600–950V
General
Efficiency (max / EU)	98.3% / 97.5%
Protection	IP66, AFCI: Optional, SPD: DC Type II, AC Type II
Dimensions / weight	425 × 387 × 147mm / 15kg
Operating temperature	-25 to +60°C
Certificates	CE, VDE 0126, Greece, EN 50549, C10/C11, VFR 2019, IEC 62116, IEC 61727, IEC 60068, IEC 61683, CEI 0-21, VDE-AR-N 4105, TOR Erzeuger
Warranty	5 years

Downloads

Manuals

User manualEN9.1 MB
Quick guideEN5.1 MB

Certificates

Technical Data

Power	3kW
Type	Hybrid
Phases	3P
MPPT	2x MPPT
