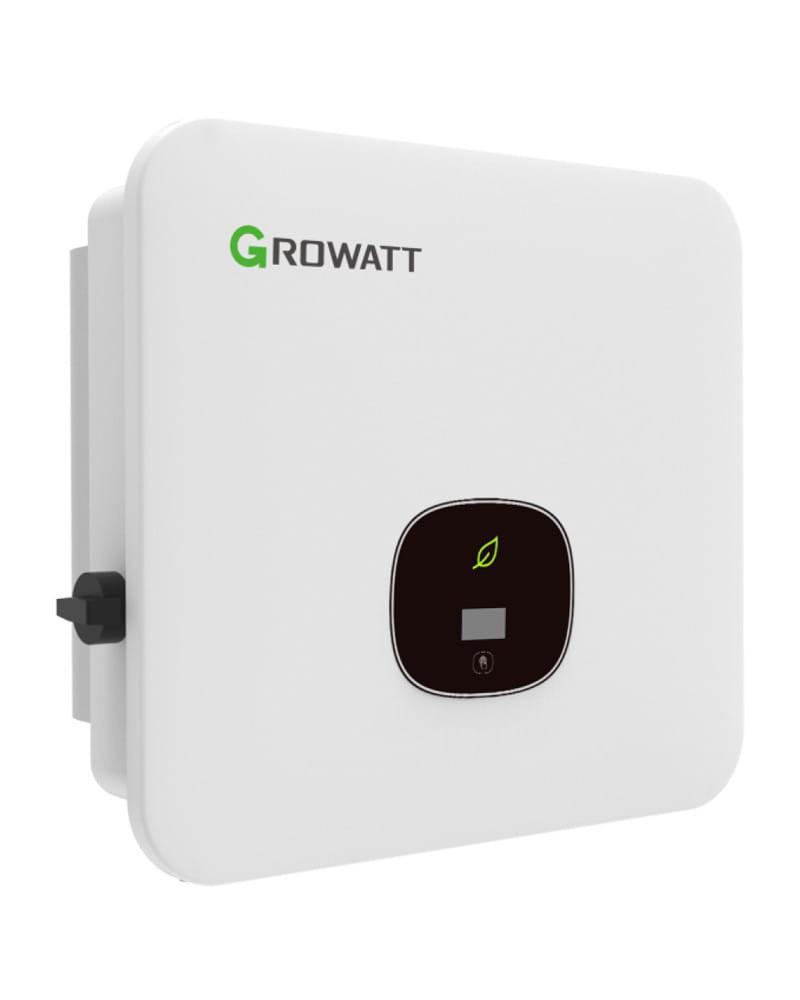

Growatt MOD 9000TL3-HU

Growatt MOD 9000TL3-HU

9kW 3P Hybrid PV Inverter | Battery System: Growatt APX HV

• Hybridsystem
• 3phases
• APXbattery
• 2xMPPT
• 18kWPV max
• 1000Vdcsystem voltage
• IP66outdoor
• 10 yearswarranty

Designed for residential installations, the Growatt MOD 9000TL3-HU (MOD-HU series) is battery ready: a battery can be connected at installation or added later. The backup function is integrated, so no separate backup box is required. Protection includes AFCI and Type II surge protection on both the DC and AC side.

Growatt was ranked No. 1 worldwide in 2025 shipments of hybrid split-type energy storage inverters (Frost & Sullivan) and is an S&P Global Energy Tier 1 PV inverter supplier for 2026.

Key features

• Battery ready
• Dual MPP trackers
• Integrated backup function, no backup box needed
• AFCI protection
• Type II SPD on DC and AC side

Battery compatibility

• Battery: Growatt APX HV 1.0, Growatt APX HV 2.0
• Capacity: 5kWh-30kWh
• Battery modules: 1-6 units in 1 cluster (APX HV 1.0); 1 master module + 0-5 battery modules (APX HV 2.0)
• Power module (BMS): APX (APX HV 1.0)
• Installation: APX battery base; APX wall bracket (APX HV 1.0)
• Datalogger: Growatt Shine datalogger
• Meter: Growatt three-phase smart meter
• Backup box: backup integrated in inverter

Technical data

Downloads

Datasheet

• Datasheet MOD 3000-9000TL3-HUENrev. 2025-111.0 MB

Manuals

• User manualENrev. 2025-1111.1 MB
• Quick guideENrev. 2025-113.2 MB

Certificates

• VDE-AR-N 4105ENrev. 2024-09-241.0 MB
• EN 50549-1ENrev. 2025-01-17789 KB
• NC RfG Poland (PTPiREE)ENrev. 2025-02-13351 KB

Other

• Energy storage configuration — compatible batteriesENrev. 2026-07-01957 KB
