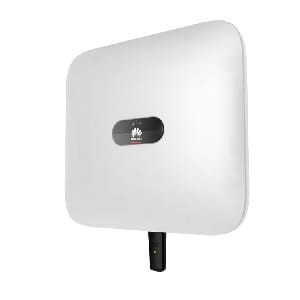

Huawei SUN2000-10KTL-M1

Huawei SUN2000MA-10KTL-M1
  • new
Availability: require pre order (waiting time ~4-6 weeks)
Limitations: no limit
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 1,623.37 1623.37
Net Price (without VAT)
quantity pcs.

product unavailable

Producer: Huawei
Product code: Huawei SUN2000-10KTL-M1

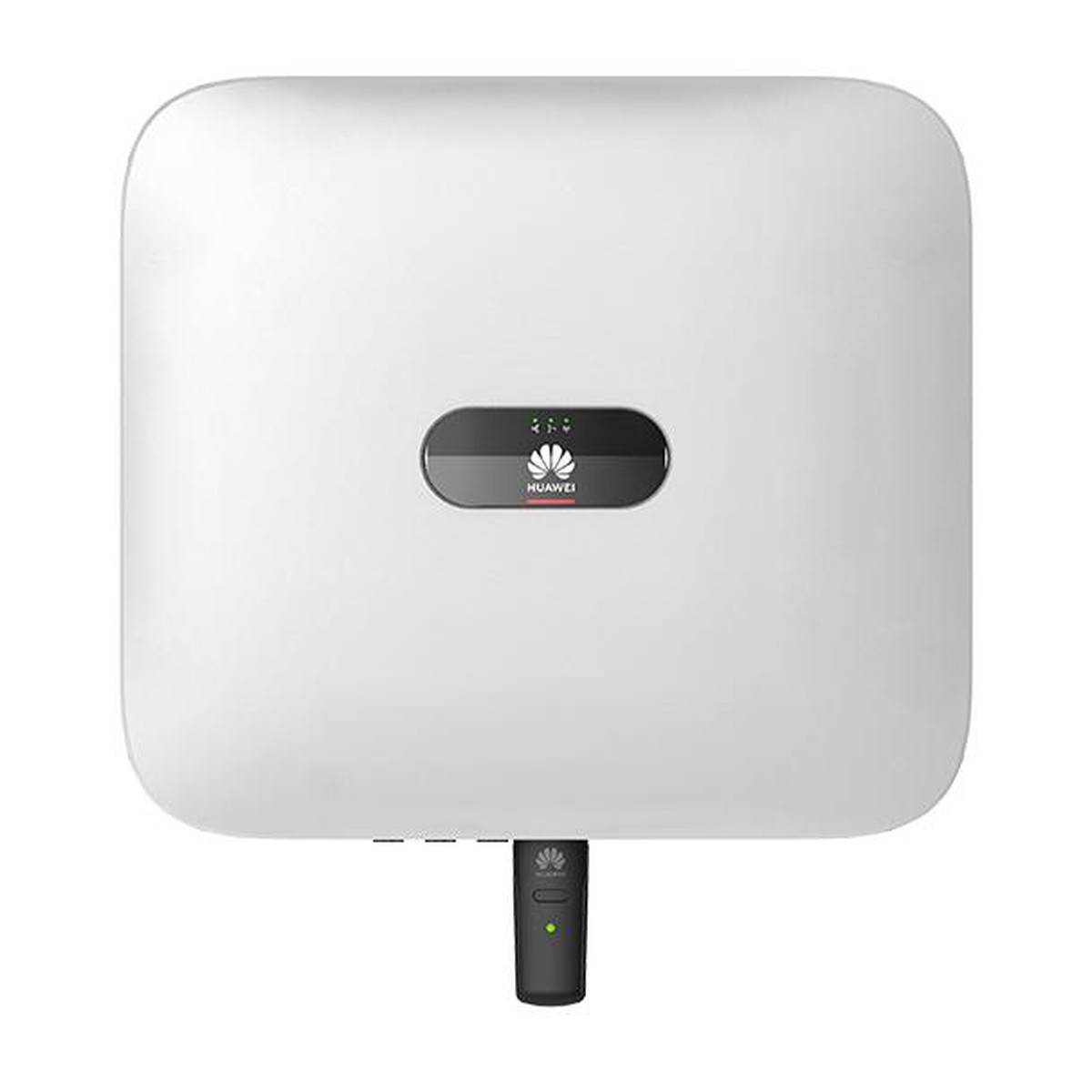

Huawei SUN2000-10KTL-M1

3-phase PV solar inverter 10kW (230V/50Hz)

Huawei offers leading Smart PV solutions harnessing more than 30 years of expertise in digital information technology. By integrating AI and Cloud, Huawei further incorporates many latest ICT technologies with PV for optimal power generation, thus making the solar power plant to be Highly Efficient, Safe & Reliable with Smart O&M and Grid Supporting capabilities and builds the foundation for solar to become the main energy source. For solar energy users, Huawei launched advanced solution for C&I and residential customers based on the‘Optimal Electricity Cost and Active Safety’ concept. By improving the utilization of solar power, Huawei has helped to power millions of residents and hundreds of industries globally.

Huawei inverters Smart Energy Controller (Three Phase):

  • Pinpoint arc fault positioning (with SUN2000-450W-P).
  • Compatible to SUN2000-450W-P optimizer.
  • Compatible to HUAWEI smart sting ESS and Backup Box-B1.
  • A 10KTL inverter allows 10kW full power AC output plus 10kW full power battery charge.
  • High efficiency inverter topology. Maximum efficiency 98,6%.


  • Optimal Electricity
  • Cost Active
  • Safety Better Experience
  • Up to 30% More Energy with Optimizers
  • Flexible investment & more usable energy via smart string ESS with energy optimizer
  • 2x POWER Battery Ready for More Energy
  • AI-powered active arcing protection
  • Pinpoint arc fault positioning for easier troubleshooting
  • No worry about power outage with backup power
  • One-Fits-All solution,easier business
  • Module auto-mapping within 5s
  • Auto datection of all system components



Huawei SUN2000-10KTL-M1 - Datasheet

Huawei SUN2000-10KTL-M1 - Quick Guide

 Huawei SUN2000-10KTL-M1 - EN50549 Certificate

Technical Data

Model SUN2000 -10KTL-M1
MPPT Operating Voltage Range (DC) 140 V ~ 980 V
Max. input voltage (DC) 600 V
Start-up voltage (DC) 200 V
Max. input current per MPPT (DC) 11 A
Number of MPP trackers (DC) 2
Rated output power (AC) 10000 W
Nominal Output Voltage | Rated Grid Frequenc (AC) 220 Vac/380 Vac, 230 Vac/400 Vac, 3W / N+PE | 50 Hz/60 Hz
Max. output current (AC) 15 A
Max. Efficiency 98.6%
Comunication RS485; RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Dimensions 525x470x146.5 mm | 17 kg
