Product

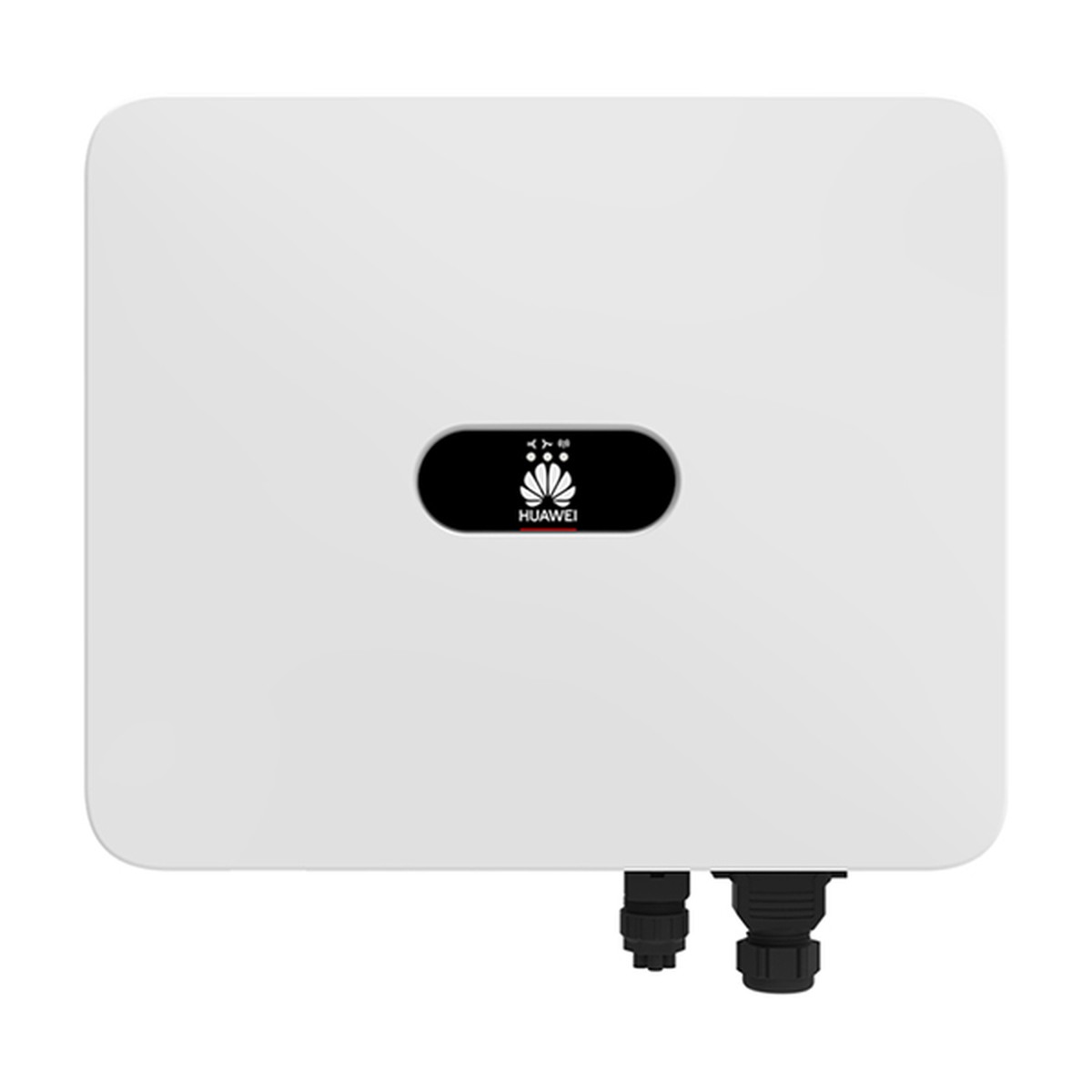

Huawei SUN2000-17K-MB0

17kW 3P Hybrid PV Inverter

Hybridsystem
3phases
2xMPPT
22.5kWPV max
1100Vdcsystem voltage

The Huawei SUN2000-17K-MB0 (SUN2000-MB0 series) is a Smart Energy Controller with AFCI active arcing protection. It is battery ready, with two battery terminals compatible with LUNA2000-S0.

Key features

AFCI active arcing protection
2 battery terminals; compatible with LUNA2000-S0
Dual MPP trackers

Technical data

AC output
Rated power / apparent power	17kW / 18.7kVA
Grid connection	3-phase, 220/380/230/400/240/415V, 3L/N/PE, 50/60Hz
Max. output current	27.1A
PV input
Max. PV power	22.5kW
Max. DC voltage / MPPT range	1100V / 200–1000V
MPPT	2x MPPT
Max. short-circuit current	40A per MPPT
General
Efficiency (max / EU)	98.4% / 98.1%
Protection	AFCI: Yes
Dimensions / weight	546 × 460 × 228mm / 21kg
Operating temperature	-25 to +60°C

Downloads

Datasheet

Datasheet SUN2000-17K-MB0EN585 KB

Technical Data

Power	17kW
Type	Hybrid
Phases	3P
MPPT	2x MPPT
