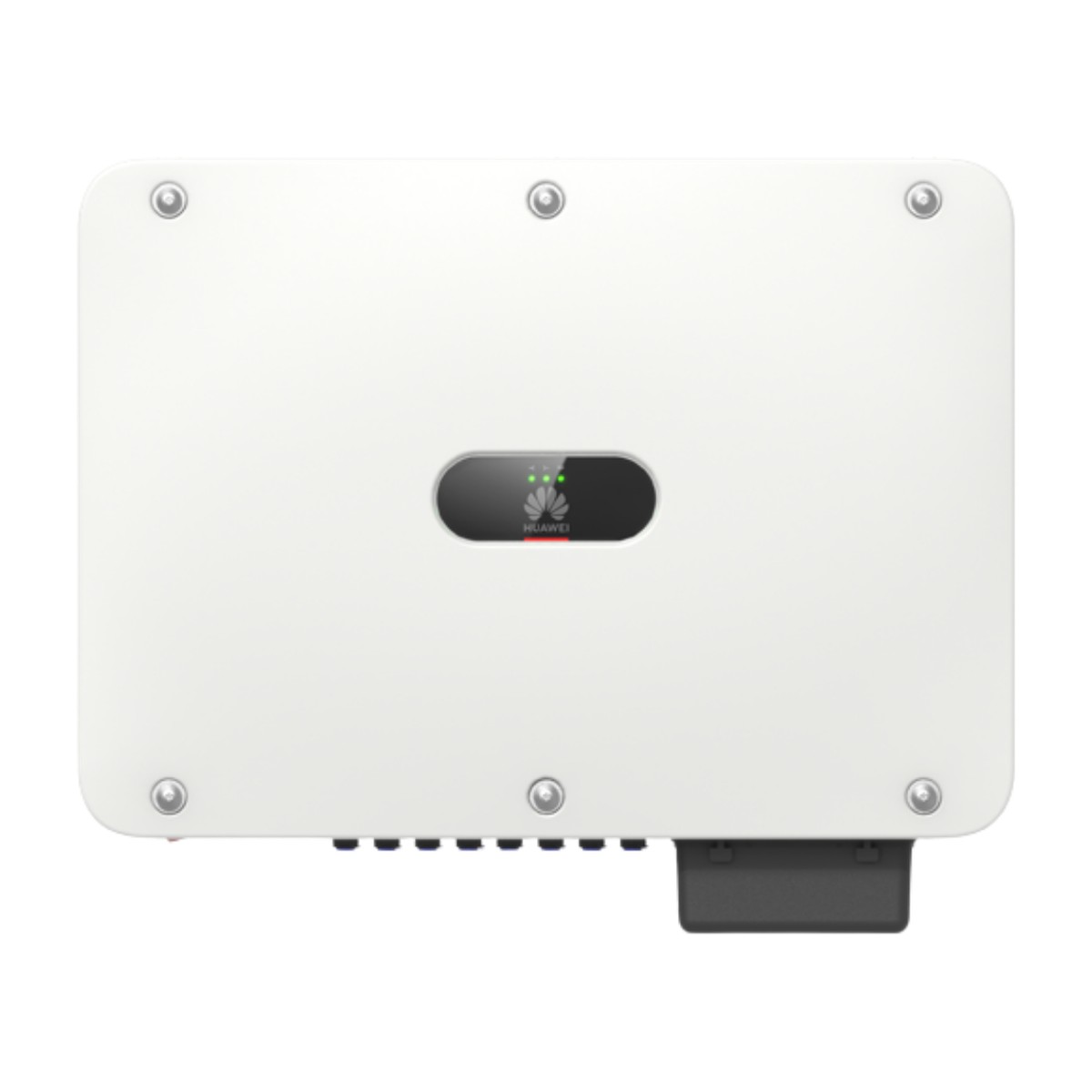

Huawei SUN2000-30K-MC0

30kW 3P On-Grid PV Inverter

On-gridsystem
3phases
4xMPPT
1100Vdcsystem voltage
IP66outdoor
45kgpalletized shipping

The Huawei SUN2000-30K-MC0 (SUN2000-MC0 series) is a Smart PV Controller with arc fault protection and integrated PID recovery. It has PV-array string fault monitoring and ripple receiver control.

Key features

Arc fault protection
Integrated PID recovery
PV-array string fault monitoring
Residual current monitoring unit
Ripple receiver control
Quad MPP trackers

Technical data

AC output
Rated power / apparent power	30kW / 33kVA
Grid connection	3-phase, 380/400/480V, 3L/N/PE
Max. output current	50.4 / 47.9 / 39.9A (380 / 400 / 480V)
PV input
Max. DC voltage / MPPT range	1100V / 180–1000V
MPPT	4x MPPT, max. 27A per MPPT
Max. short-circuit current	40A per MPPT
General
Efficiency (max / EU)	98.6% / 98.4%
Protection	IP66, AFCI: Yes
Dimensions / weight	640 × 530 × 270mm / 45kg
Communication	Integrated WLAN, FusionSolar APP, RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional)
Certificates	IEC 61727, VDE-AR-N 4105, VDE 0124-1-1, UTE C15-712-1, CEI 0-16, CEI 0-21, EN 50549

Downloads

Datasheet

Datasheet SUN2000-30K-MC0EN238 KB

Technical Data

Power	30kW
Phases	3P
MPPT	4x MPPT
AFCI	Yes
Ingress protection	IP66
