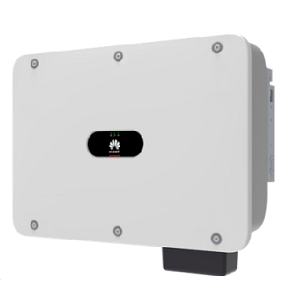

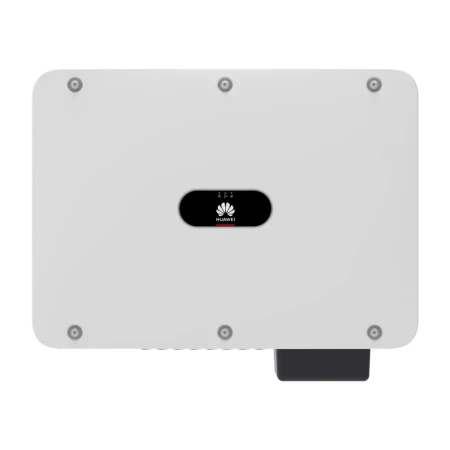

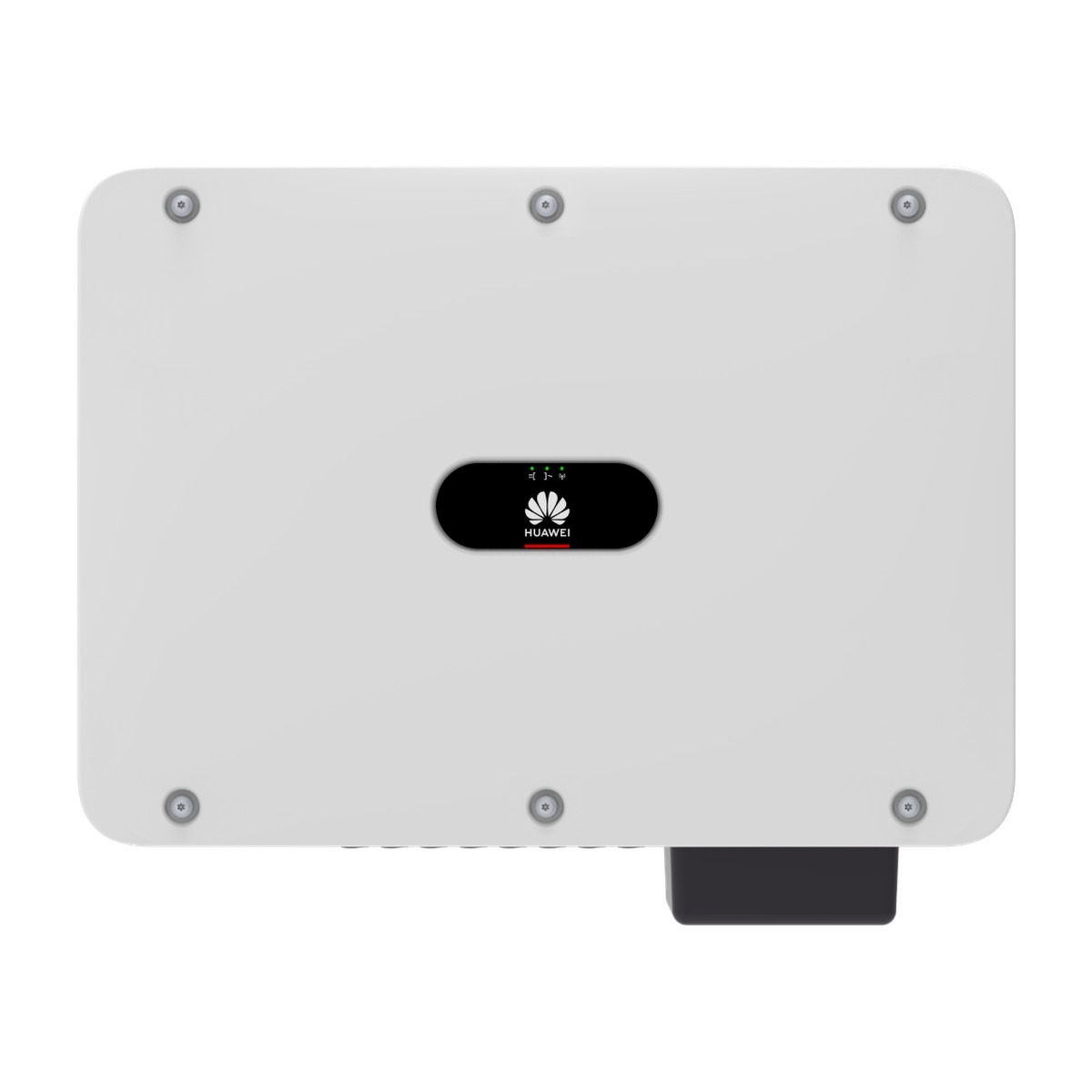

Huawei SUN2000-36KTL-M3

Huawei SUN2000-36KTL-M3
  • new
Availability: in stock
Minimum order: no limit
Delivery: The price does not include any possible payment costs check the delivery methods
Price: € 2,962.36 2962.36
Net Price (excl. VAT)
quantity pcs.

product unavailable

Manufacturer:: Huawei
Product code: Huawei SUN2000-36KTL-M3

Description


Huawei SUN2000-36KTL-M3

3-phase PV solar inverter 36kW (230V/50Hz)


Huawei offers leading Smart PV solutions harnessing more than 30 years of expertise in digital information technology. By integrating AI and Cloud, Huawei further incorporates many latest ICT technologies with PV for optimal power generation, thus making the solar power plant to be Highly Efficient, Safe & Reliable with Smart O&M and Grid Supporting capabilities and builds the foundation for solar to become the main energy source. For solar energy users, Huawei launched advanced solution for C&I and residential customers based on the‘Optimal Electricity Cost and Active Safety’ concept. By improving the utilization of solar power, Huawei has helped to power millions of residents and hundreds of industries globally.


Huawei inverters Smart PV Controller - Most versatile inverter yet (Three Phase):

  • Max DC voltage: 1100 V
  • Max AC apparent power: 33,000 VA/ 40,000 VA/ 44,000 VA
  • 4 MPPTs for versatile adaptions to different layouts
  • 8 strings intelligent monitoring and fast trouble-shooting
  • Max. efficiency 98.7%, European efficiency 98.4%



  • Up to 30% More Energy by Optimizing Each Module Performance
  • 2 Strings per MPPT, More Energy Yields
  • PID Recovery Built-in to Secure Better Module Performance
  • AI Powered Active Arcing Protection
  • C&I Tailored Enhanced Active Arcing Protection
  • Pinpoint Arc Fault Positioning for Easier Troubleshooting
  • 0V Module-level Voltage Shutdown, Touch Safe
  • < 40 sec Module Auto-Mapping
  • No Fuse or Other Quick-wear Parts, Inverter Touch Free
  • Natural Cooling Verified by Telecom & Solar Application
  • One Smart Dongle Supports up to 10 Devices
  • Online Smart I-V Curve Diagnosis, Module Touch Free



Download


Huawei SUN2000-36KTL-M3 - Datasheet

Huawei SUN2000-36KTL-M3 - Quick Guide

 Huawei SUN2000-36KTL-M3 - EN50549 Certificate

Technical Data

Model SUN2000-36KTL-M3
MPPT Operating Voltage Range (DC) 200 V - 1000 V
Max. input voltage (DC) 600 V
Start-up voltage (DC) 200 V
Max. input current per MPPT (DC) 26 A
Number of MPP trackers (DC) 4
Rated output power (AC) 36000 W
Nominal Output Voltage | Rated Grid Frequenc (AC) 230 V/400 V/480V, 3W/N+PE | 50 Hz/60 Hz
Max. output current (AC) 58.0 A
Max. Efficiency 98.7%
Comunication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Dimensions 640x530x270 mm | 43 kg
