Huawei SUN2000-4K-LB0

Availability:

in stock

Delivery: choose country of delivery

Price: € 717.91

Net Price (without VAT)

Regular price:

717.91

quantity pcs.

product unavailable

add to wish list

Producer:

ID: Huawei-SUN2000-4K-LB0

Product

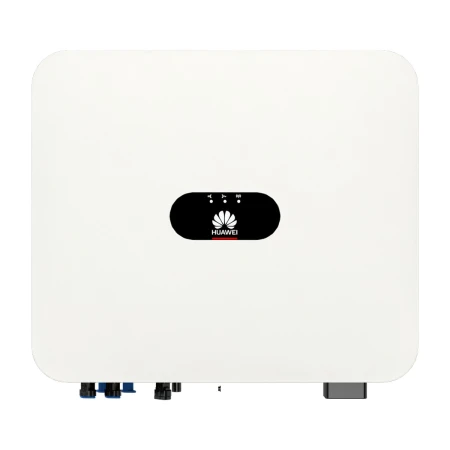

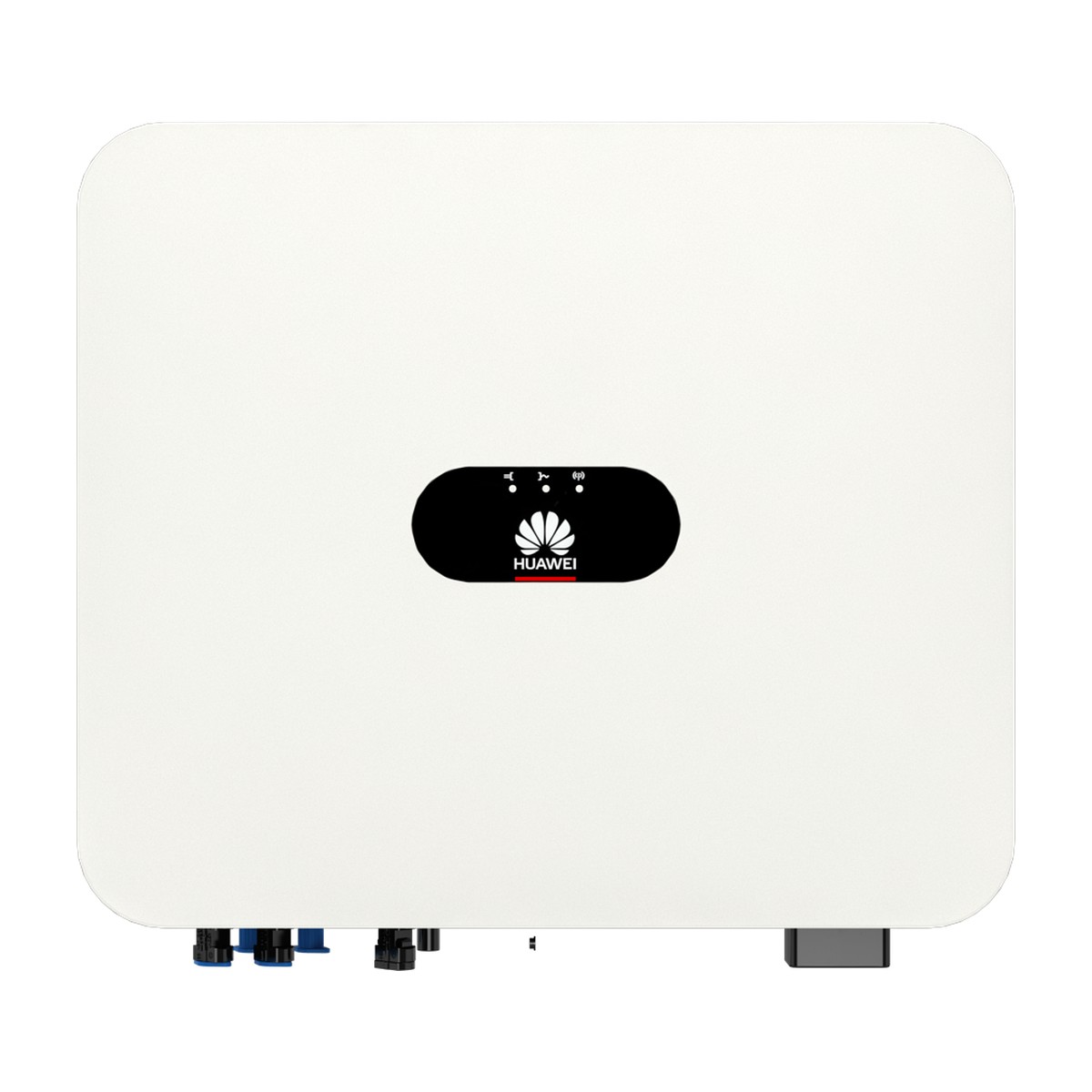

Huawei SUN2000-4K-LB0

4kW 1P Hybrid PV Inverter

Hybridsystem
1phase
2xMPPT
6kWPV max
600Vdcsystem voltage
IP66outdoor

The Huawei SUN2000-4K-LB0 (SUN2000-LB0 series) is a Smart Energy Controller with active arcing protection. It is battery ready, with a plug & play battery interface.

Key features

Active arcing protection
Plug & play battery interface
Dual MPP trackers

Technical data

AC output
Rated power / apparent power	4kW / 4.4kVA
Grid connection	1-phase, 220/230/240V, 50/60Hz
Max. output current	20A
PV input
Max. PV power	6kW
Max. DC voltage / MPPT range	600V / 40–560V
MPPT	2x MPPT, max. 16A per MPPT
Max. short-circuit current	20A per MPPT
General
Efficiency (max / EU)	97.8% / 96.8%
Protection	IP66, AFCI: Yes
Dimensions / weight	425 × 376.5 × 150mm / 15kg
Operating temperature	-25 to +60°C
Communication	RS485, WLAN via inverter built in WLAN module Ethernet via Smart Dongle-WLAN FE (Optional), 4G / 3G / 2G via Smart Dongle-4G (Optional), SA4H-A02

Downloads

Datasheet

Datasheet SUN2000-4K-LB0EN5.1 MB

Technical Data

Power	4kW
Phases	1P
MPPT	2x MPPT
Backup	Yes

Safety
