Huawei SUN2000-50K-MC0

Availability:

in stock

Delivery: choose country of delivery

Price: € 2,652.12

Net Price (without VAT)

Regular price:

2652.12

quantity pcs.

product unavailable

add to wish list

Producer:

ID: Huawei-SUN2000-50K-MC0

Product

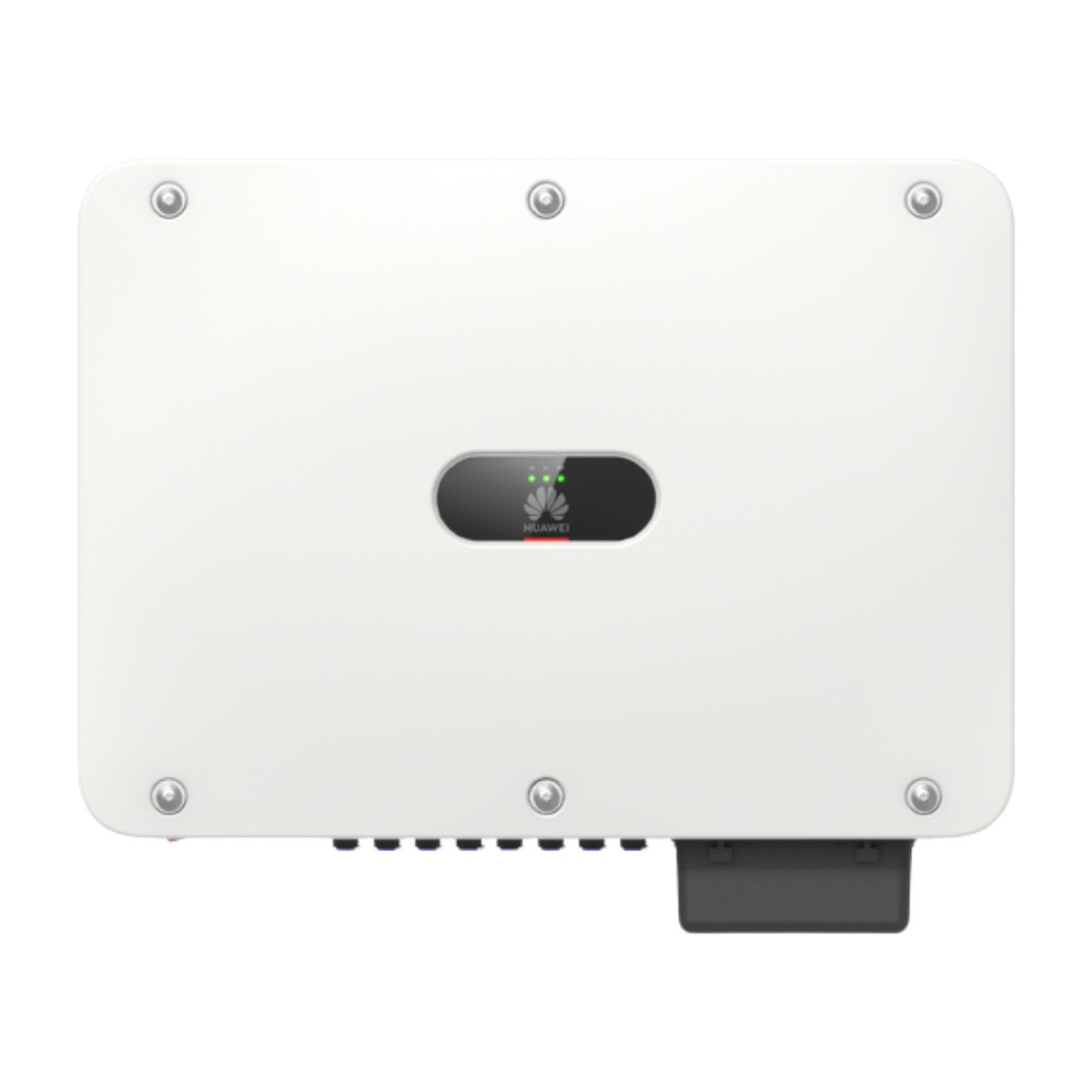

Huawei SUN2000-50K-MC0

50kW 3P On-Grid PV Inverter

On-gridsystem
3phases
4xMPPT
1100Vdcsystem voltage
IP66outdoor
50kgpalletized shipping

The Huawei SUN2000-50K-MC0 (SUN2000-MC0 series) is a Smart PV Controller with arc fault protection and integrated PID recovery. It has PV-array string fault monitoring and ripple receiver control.

Key features

Arc fault protection
Integrated PID recovery
PV-array string fault monitoring
Residual current monitoring unit
Ripple receiver control
Quad MPP trackers

Technical data

AC output
Rated power / apparent power	50kW / 55kVA
Grid connection	3-phase, 380/400/480V, 50/60Hz
Max. output current	84.0 / 79.8 / 66.5A (380 / 400 / 480V)
PV input
Max. DC voltage / MPPT range	1100V / 180–1000V
MPPT	4x MPPT
Max. short-circuit current	40/44/44/40A per MPPT
General
Efficiency (max / EU)	98.5% / 98.2%
Protection	IP66, AFCI: Yes
Dimensions / weight	640 × 530 × 270mm / 50kg
Operating temperature	-25 to +60°C

Downloads

Datasheet

Datasheet SUN2000-50K-MC0EN242 KB

Technical Data

Power	50kW
Phases	3P
MPPT	4x MPPT
AFCI	Yes
Ingress protection	IP66
