Product

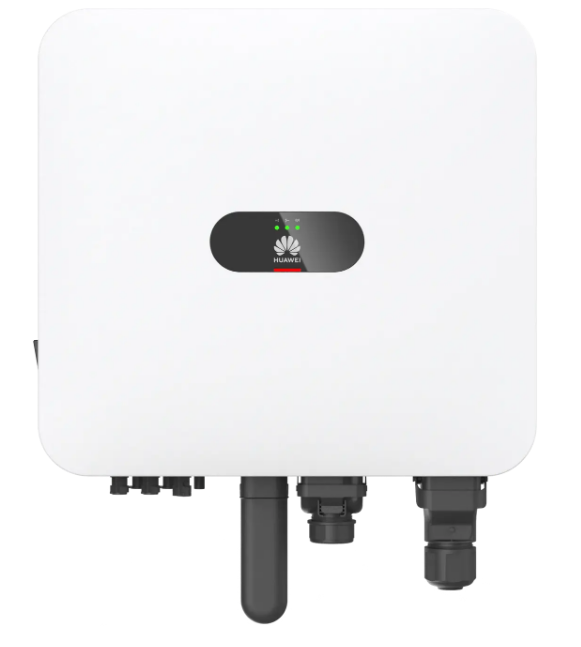

Huawei SUN2000-6K-MAP0

6kW 3P Hybrid PV Inverter

  • Hybridsystem
  • 3phases
  • 2xMPPT
  • 11kWPV max
  • 1100Vdcsystem voltage
  • IP66outdoor

The Huawei SUN2000-6K-MAP0 (SUN2000-MAP0 series) is a Smart Energy Controller with three-phase asymmetric output and 200% overload. It works with LUNA S0 or S1 batteries and offers whole home backup with SmartGuard.

Key features

  • Three-phase asymmetric output
  • 200% overload
  • AFCI & RSD (with optimizer)
  • Connector temperature detection
  • LUNA S0 or S1 battery
  • Whole home backup (with SmartGuard)
  • Dual MPP trackers

Technical data

AC output
Rated power / apparent power6kW / 6.6kVA
Grid connection3-phase, 230/400V, 3L/N/PE, 50/60Hz
Max. output current10A
PV input
Max. PV power11kW
Max. DC voltage / MPPT range1100V
MPPT2x MPPT, max. 16A per MPPT
Max. short-circuit current22A per MPPT
General
Efficiency (max / EU)98.6% / 97.7%
ProtectionIP66, AFCI: Yes
Dimensions / weight490 × 460 × 130mm / 21kg
Operating temperature-25 to +60°C

Downloads

Datasheet

Technical Data

Power 6kW
Phases 3P
MPPT 2x MPPT
Backup Yes
