JA Solar JAM66D45-630/LB

Availability:

in stock

Delivery: choose country of delivery

Price: € 81.14

Net Price (without VAT)

Regular price:

81.14

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: JA-Solar-JAM66D45-630LB

Product

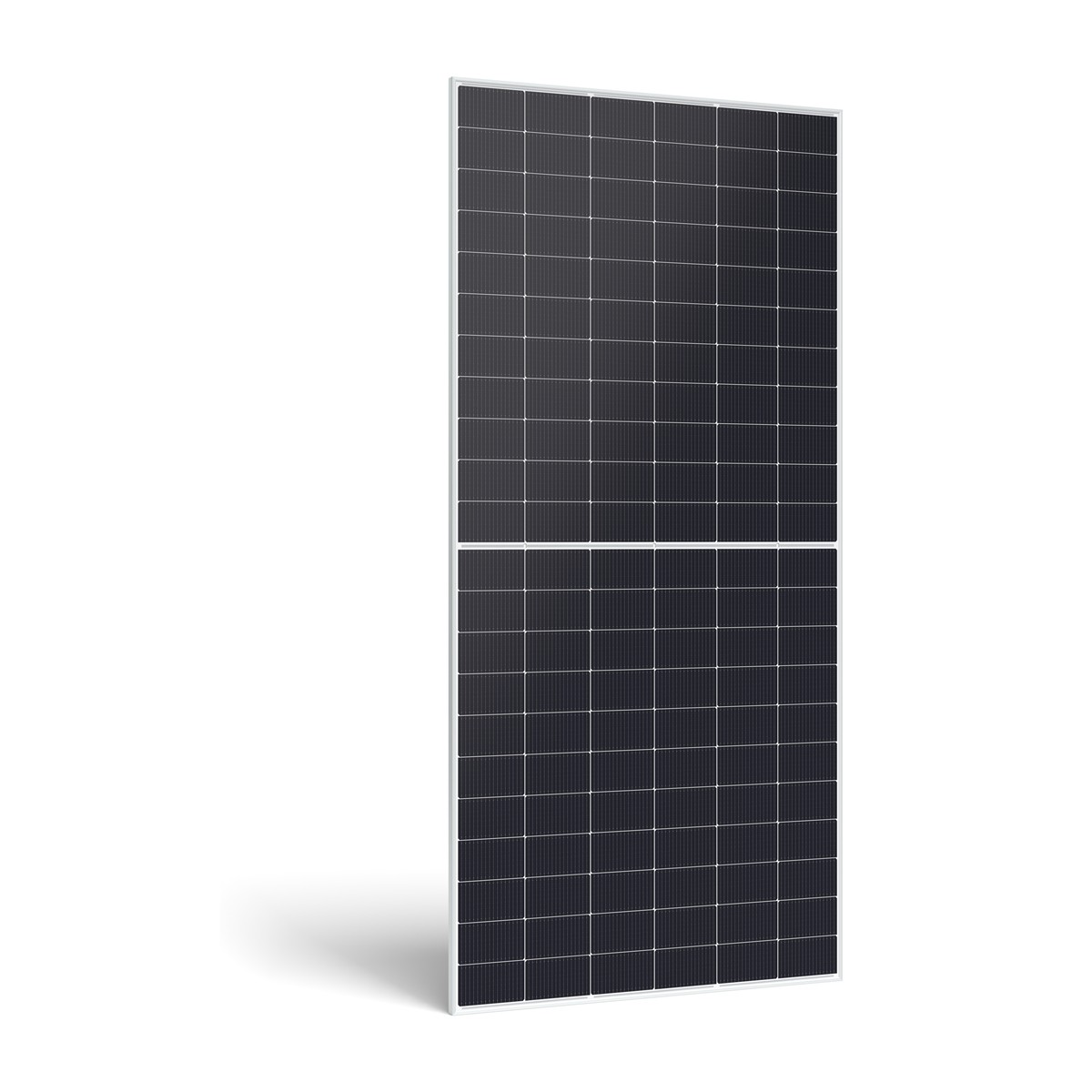

JA Solar JAM66D45-630/LB

630W N-type Bifacial Module

630WSTC
N-typecells
Bifacialmodule
23.3%efficiency
2382×1134mmH×W
33.1kgweight
36 pcsper pallet
12/30 yearswarranty product/power

The JA Solar JAM66D45-630/LB (DeepBlue 4.0 series) is an n-type double glass bifacial module with 132 half-cells and Bycium+ cells. It is covered by a 12-year product warranty and a 30-year linear power output warranty.

JA Solar, founded in 2005, is a vertically integrated manufacturer of solar wafers, cells and modules, listed on the Shenzhen Stock Exchange (002459) since 2019.

Key features

n-type Bycium+ cells, 16BB MBB half-cell technology
Lower LID, better temperature coefficient and low-irradiance response
Double glass bifacial module
1% first-year degradation, 0.4% annual degradation
12-year product warranty, 30-year linear power output warranty

Technical data

Maximum power Pmax (STC)	630W
Open-circuit voltage Voc (STC)	48.9V
Short-circuit current Isc (STC)	16.18A
Voltage at Pmax Vmp (STC)	40.7V
Current at Pmax Imp (STC)	15.48A
Module efficiency	23.3%
Max. system voltage	1500V DC
Max. series fuse rating	35A
Temperature coefficients	Pmax: -0.29%/°C · Voc: -0.25%/°C · Isc: 0.045%/°C
NOCT	45±2°C
Cells	132 (n-type, Bycium+ 16BB)
Glass	dual glass, 2.0 mm front / 2.0 mm rear
Connector	QC 4.10-351 / MC4-EVO2A
Dimensions / weight	2382 × 1134 × 30mm / 33.1kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	12 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Downloads

Datasheet

Datasheet JAM66D45-630/LBEN1.0 MB

Technical Data

Power	630Wp
Cells	66
Pallet	36pcs
Technology	N-type
