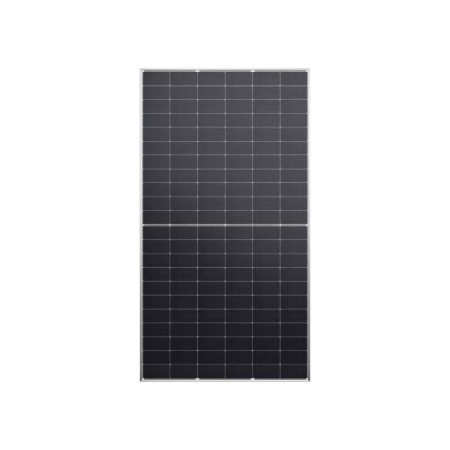

Jinko Solar JKM620-66HL4M-BDV 620Wp | SFR | JK03MSolar Panel Jinko 620W N-Type, Bifacial, Dual Glass, Half-Cut, Transparent Backsheet, TopCon
Key Features
Bifacial dual-glass module enables energy gain from rear side
N‑type TOPCon with HOT 2.0 and SMBB cell technology
Superior glass-glass structure enhances long-term durability and fire resistance
Excellent mechanical load resistance: 5400 Pa snow / 2400 Pa wind
Product warranty: 12 years
Power warranty: 30 years (≥87.4% output retention after 30 years)
Up to 22.95% module efficiency
0~+3% power tolerance
≤1% first-year degradation; ~0.4% annual degradation (Years 2–30)
PID-resistant and salt/ammonia corrosion resistant
Suitable for desert, coastal and high-humidity zones
Rated for 1500 V DC systems, fuse rating 25 A
Weight: 33.4 kg; dimensions: 2382 × 1134 × 30 mm
Cable length ±1400 mm with JK03M connector
Download
Jinko Solar | JKM620-66HL4M-BDV 620Wp | SFR | JK03M - Datasheet
