LONGi LR7-54HVH-480M

Availability:

in stock

Delivery: choose country of delivery

Price: € 87.40

Net Price (without VAT)

Regular price:

87.40

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: Longi-LR7-54HVH-480M

Product

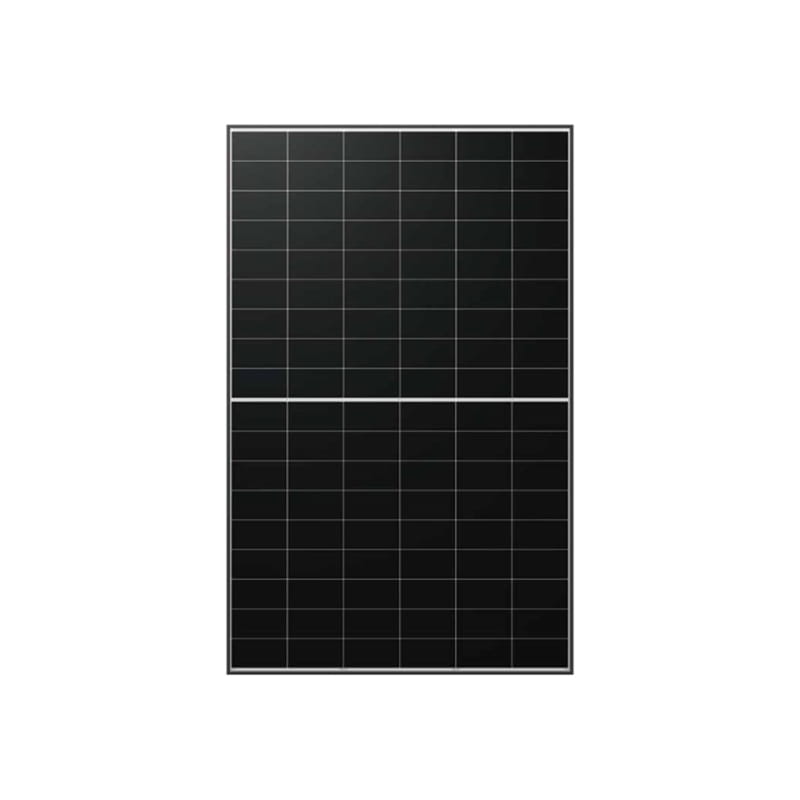

LONGi LR7-54HVH-480M

480W Monofacial Module

480WSTC
Monofacialmodule
23.5%efficiency
1800×1134mmH×W
21.6kgweight
36 pcsper pallet
15/30 yearswarranty product/power

The LONGi LR7-54HVH-480M (LR7-54HVH series) is a module with TaiRay wafer and BC technology. It comes with a 15-year warranty for materials and processing and a 30-year warranty for extra linear power output.

LONGi Green Energy Technology, established in 2000 and headquartered in Xi'an, China, is listed on the Shanghai Stock Exchange (601012).

Key features

TaiRay wafer & BC technology enhances high product reliability
15-year warranty for materials and processing
30-year warranty for extra linear power output

Technical data

Maximum power Pmax (STC)	480W / NOCT 365W
Open-circuit voltage Voc (STC)	40.29V / NOCT 38.29V
Short-circuit current Isc (STC)	15.13A / NOCT 12.16A
Voltage at Pmax Vmp (STC)	33.28V / NOCT 31.63V
Current at Pmax Imp (STC)	14.43A / NOCT 11.57A
Module efficiency	23.5%
Power output tolerance	0 ~ 3%
Max. system voltage	1500V DC
Max. series fuse rating	25A
Temperature coefficients	Pmax: -0.26%/°C · Voc: -0.2%/°C · Isc: 0.05%/°C
NOCT	45±2°C
Cells	108
Glass	Single glass, 3.2mm coated tempered glass
Junction box	IP68, three diodes
Dimensions / weight	1800 × 1134 × 30mm / 21.6kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	15 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Downloads

Datasheet

Datasheet LR7-54HVH-480MEN2.0 MB

Technical Data

Power	480Wp
Cells	54
Pallet	36pcs
