LONGi LR7-54HVH-490M

Availability:

in stock

Delivery: choose country of delivery

Price: € 90.36

Net Price (without VAT)

Regular price:

90.36

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: Longi-LR7-54HVH-490M

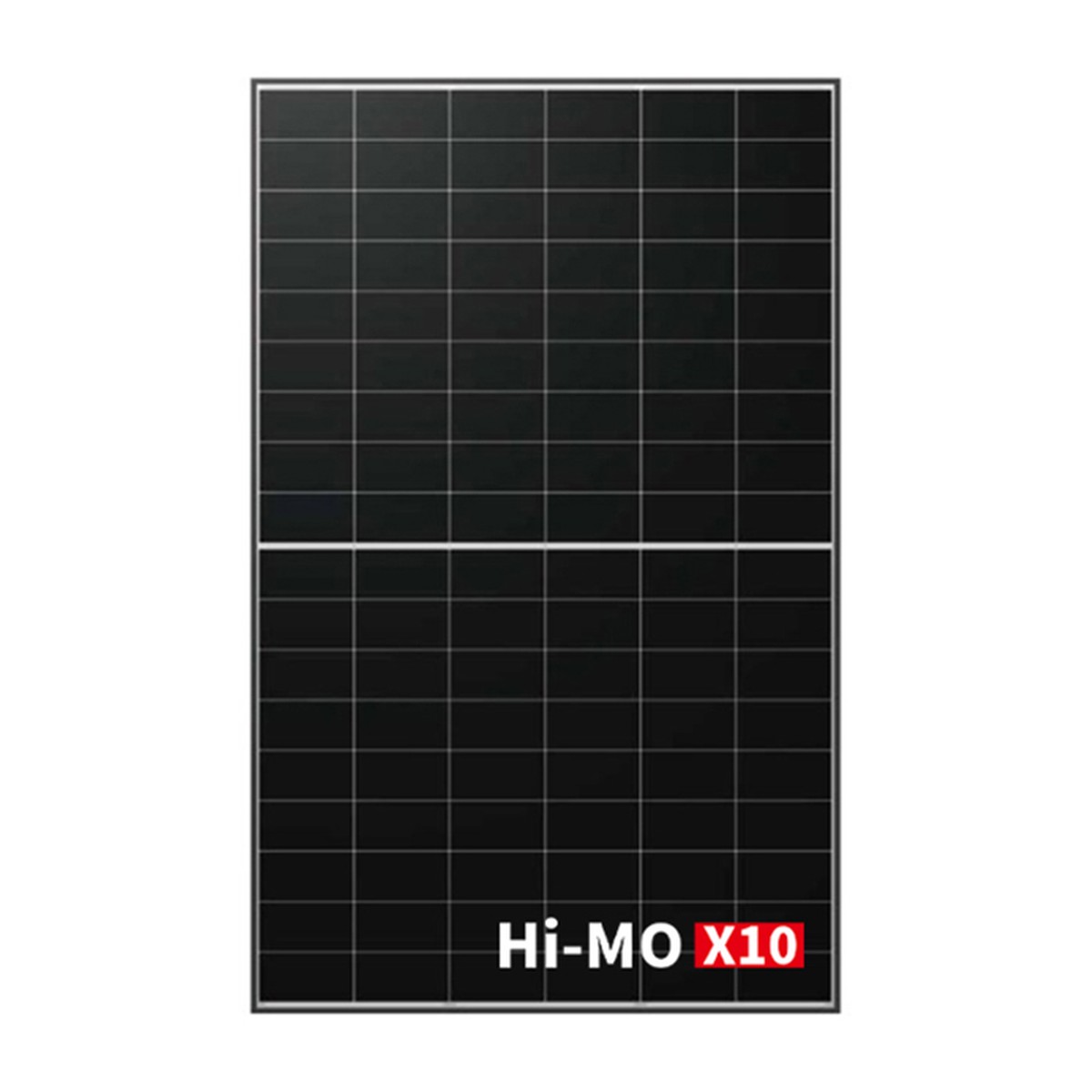

490W Monofacial Module

Maximum power Pmax (STC)	490W / NOCT 373W
Open-circuit voltage Voc (STC)	40.52V / NOCT 38.51V
Short-circuit current Isc (STC)	15.33A / NOCT 12.32A
Voltage at Pmax Vmp (STC)	33.51V / NOCT 31.85V
Current at Pmax Imp (STC)	14.63A / NOCT 11.73A
Module efficiency	24%
Power output tolerance	0 ~ 3%
Max. system voltage	1500V DC
Max. series fuse rating	25A
Temperature coefficients	Pmax: -0.26%/°C · Voc: -0.2%/°C · Isc: 0.05%/°C
NOCT	45±2°C
Cells	108
Glass	Single glass, 3.2mm coated tempered glass
Junction box	IP68, three diodes
Dimensions / weight	1800 × 1134 × 30mm / 21.6kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	15 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Datasheet
