LONGi LR7-72HVH-650M

Availability:

in stock

Delivery: choose country of delivery

Price: € 94.10

Net Price (without VAT)

Regular price:

94.10

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: Longi-LR7-72HVH-650M

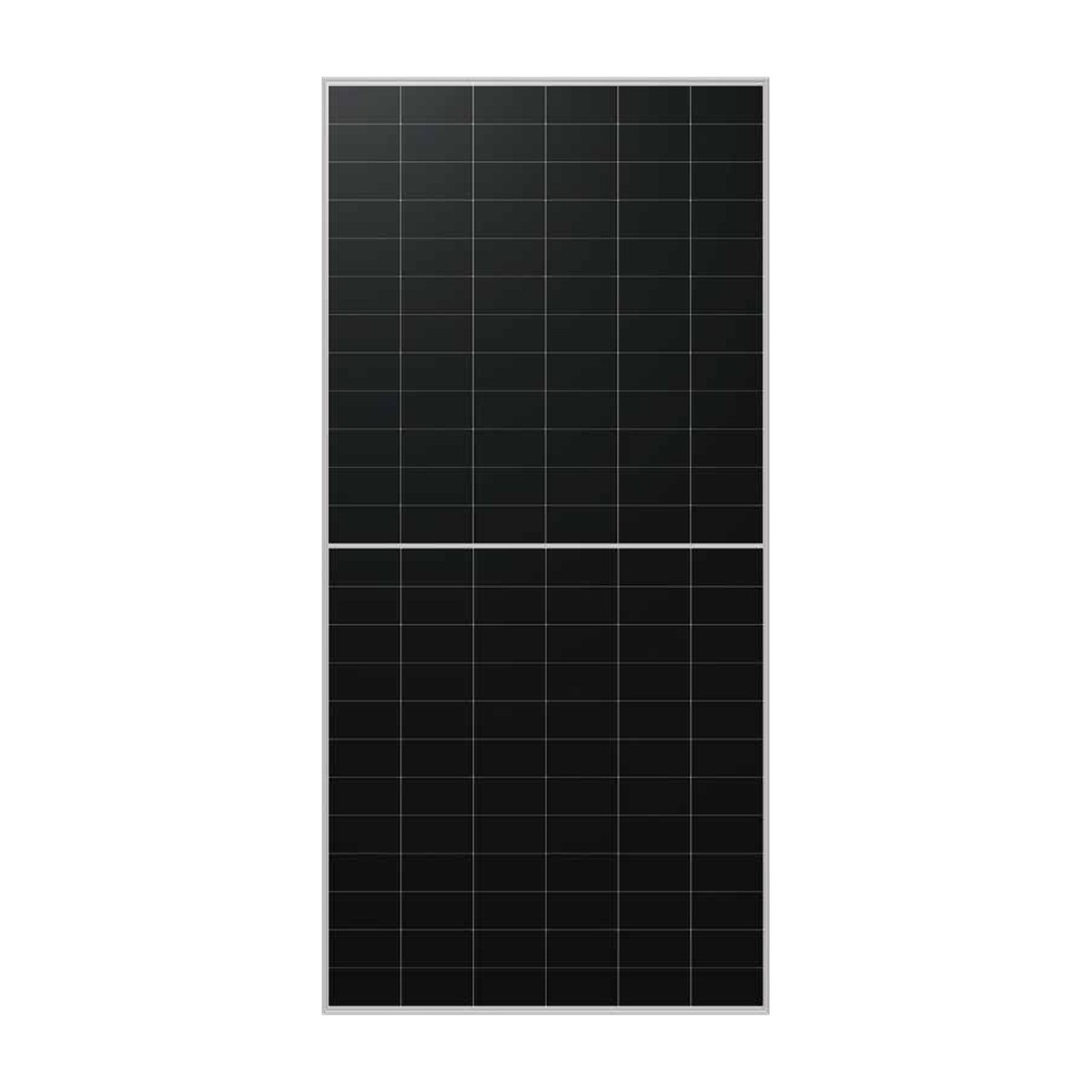

650W BC Monofacial Module

Maximum power Pmax (STC)	650W / NOCT 495W
Open-circuit voltage Voc (STC)	53.9V / NOCT 51.23V
Short-circuit current Isc (STC)	15.29A / NOCT 12.28A
Voltage at Pmax Vmp (STC)	44.56V / NOCT 42.35V
Current at Pmax Imp (STC)	14.59A / NOCT 11.69A
Module efficiency	24.1%
Power output tolerance	0%~3%
Max. system voltage	1500V DC
Max. series fuse rating	25A
Temperature coefficients	Pmax: -0.26%/°C · Voc: -0.2%/°C · Isc: 0.05%/°C
NOCT	45±2°C
Cells	144 (BC cell)
Glass	Single glass, 3.2 mm coated tempered glass
Junction box	IP68
Dimensions / weight	2382 × 1134 × 30mm / 28.5kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	15 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Datasheet
