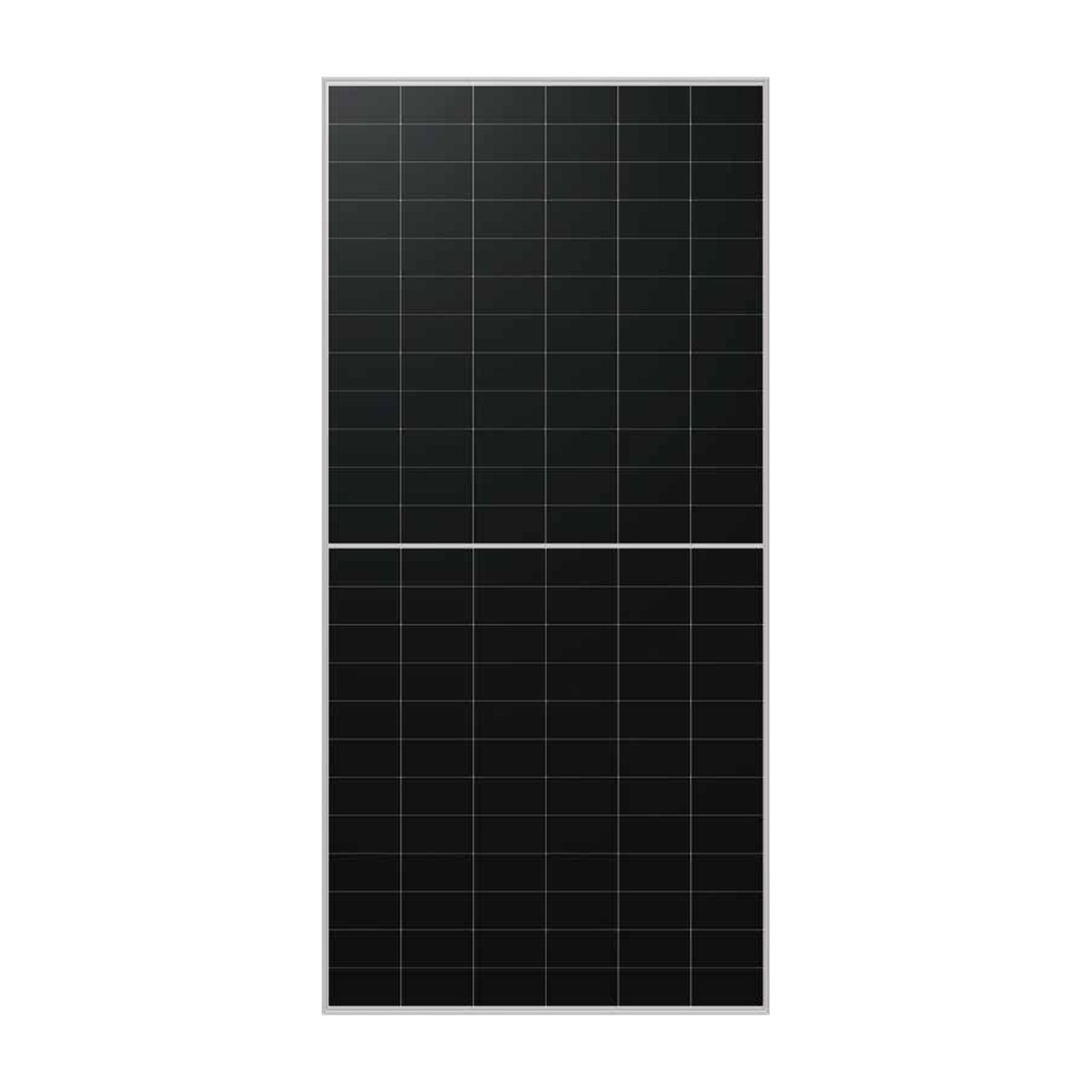

LONGi LR7-72HVH-655M

Availability:

in stock

Delivery: choose country of delivery

Price: € 115.04

Net Price (without VAT)

Regular price:

115.04

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: Longi-LR7-72HVH-655M

655W BC Monofacial Module

Maximum power Pmax (STC)	655W / NOCT 499W
Open-circuit voltage Voc (STC)	54V / NOCT 51.32V
Short-circuit current Isc (STC)	15.37A / NOCT 12.34A
Voltage at Pmax Vmp (STC)	44.66V / NOCT 42.44V
Current at Pmax Imp (STC)	14.67A / NOCT 11.76A
Module efficiency	24.2%
Power output tolerance	0%~3%
Max. system voltage	1500V DC
Max. series fuse rating	25A
Temperature coefficients	Pmax: -0.26%/°C · Voc: -0.2%/°C · Isc: 0.05%/°C
NOCT	45±2°C
Cells	144 (BC cell)
Glass	Single glass, 3.2 mm coated tempered glass
Junction box	IP68
Dimensions / weight	2382 × 1134 × 30mm / 28.5kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	15 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Datasheet
