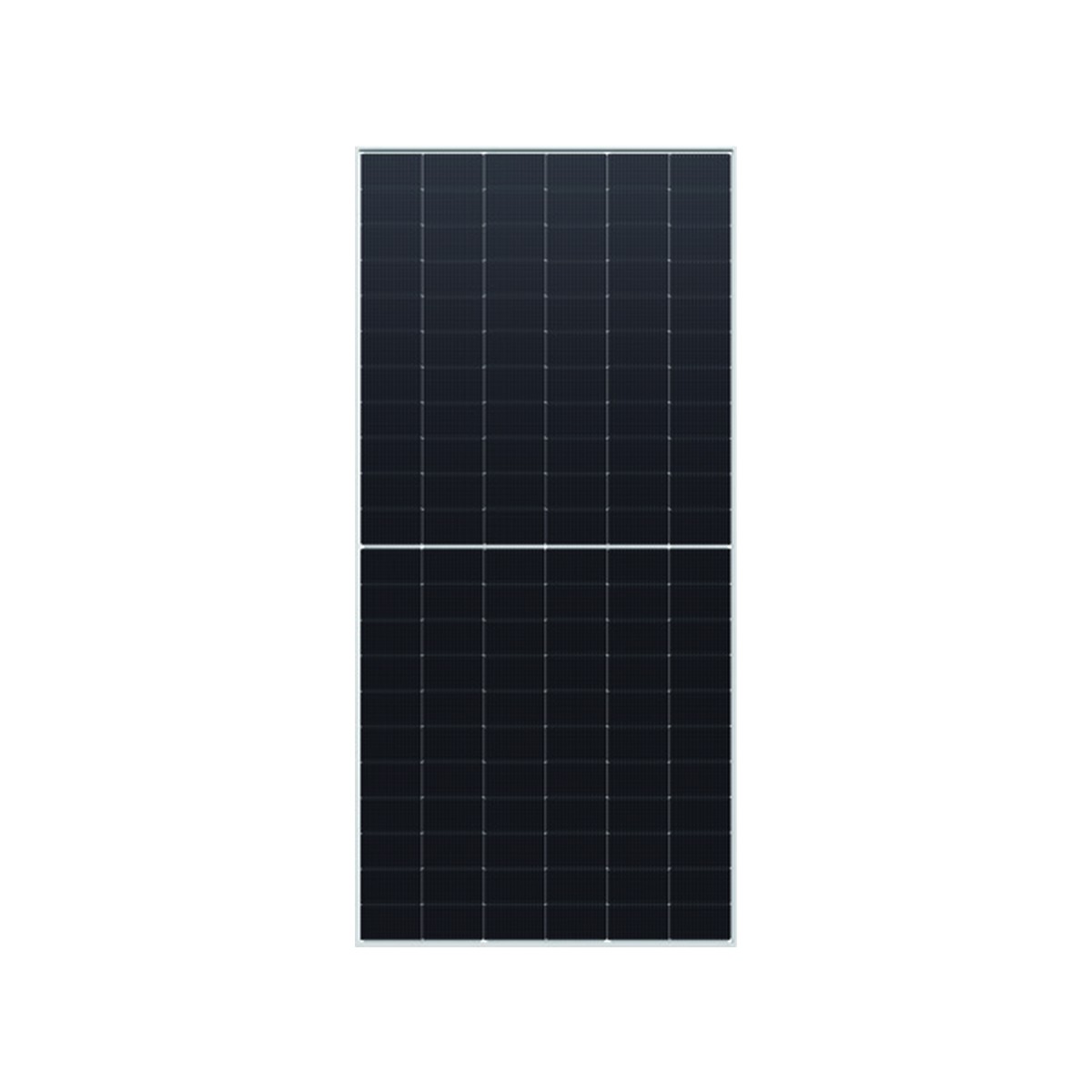

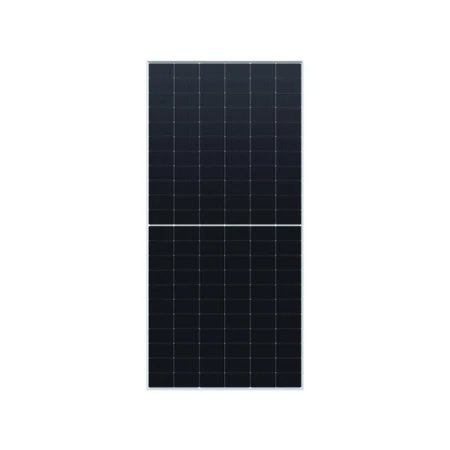

LONGi LR8-66HGD-615M

Availability:

in stock

Delivery: choose country of delivery

Price: € 96.85

Net Price (without VAT)

Regular price:

96.85

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: Longi-LR8-66HGD-615M

615W Bifacial Module

Maximum power Pmax (STC)	615W / NOCT 468.1W
Open-circuit voltage Voc (STC)	48.58V / NOCT 46.17V
Short-circuit current Isc (STC)	16A / NOCT 12.85A
Voltage at Pmax Vmp (STC)	40.71V / NOCT 38.69V
Current at Pmax Imp (STC)	15.11A / NOCT 12.1A
Module efficiency	22.8%
Power output tolerance	0~3%
Max. system voltage	1500V DC
Max. series fuse rating	35A
Temperature coefficients	Pmax: -0.28%/°C · Voc: -0.23%/°C · Isc: 0.045%/°C
NOCT	45±2°C
Cells	132
Glass	Dual glass, 2.0+2.0mm heat strengthened glass
Junction box	IP68, three diodes
Dimensions / weight	2382 × 1134 × 30mm / 33.5kg
Max. static load (front / rear)	5400Pa / 2400Pa
Operating temperature	-40 to +85°C
Packaging	36 pcs per pallet
Warranty	12 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Datasheet
