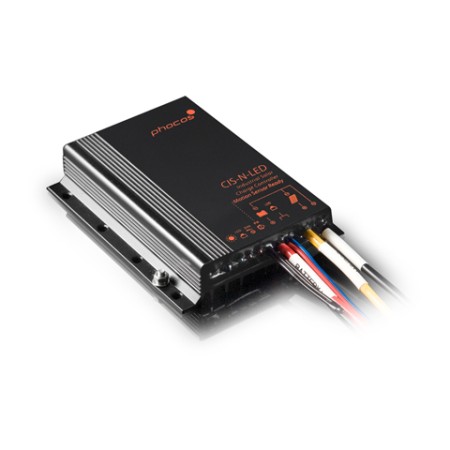

Phocos CIS-N-LED-1400

PV solar charge controller


The CIS-N-LED is a 3-in-1 solution that increases lifetime, reliability, efficiency and cost effectiveness. It is the perfect charge controller for solar lighting applications such as streetlights or bus shelters, and its motion sensor interface capabilities regulate LED brightness to conserve energy. To further conserve energy and extend the system’s lifetime, the CIS-N-LED has two low voltage disconnect levels. The levels can be programmed using one of Phocos' handheld remote control accessories; the CIS-CU or the MXI-IR and our free CISCOM PC software.


  • Combines 3 functions in one: charge controller + flexible timer + LED driver
  • Developed especially for rough environments, solar LED lamps, and solar LED streetlights
  • Flexible dimming functions
  • Input for motion detector (PIR)
  • Small size: fits everywhere
  • LiFePO4 available through CISCOM software
  • True color PWM dimming
  • Fully protected by the encapsulated case, which increases lifetime and reliability and reduces costs
  • Auto-protection function: two low-voltage disconnects extend system operation time and reliability
  • Infrared-programmable load timing feature + dimming is ideal for lighting systems
  • IP68 Ingress Protection



Phocos CIS-N-LED-1400 - Datasheet
Phocos CIS-N-LED-1400 - User Manual
Phocos CIS-N-LED-1400 - CE Certificate

Technical Data

Product Phocos CIS-N-LED-1400
Type Solar Charge Controller with integrated LED Driver
System Photovoltaic Systems
Function Charge controller, flexible timer, LED drivers
Batteries GEL, AGM, Lead-Acid, Flooded
Charge voltage for LiFePO4 battery 14.0/28.0V (temperature limit: -20 to +60°C)
Main / auxiliary battery charging Adjustable
Charging Mode PWM
Nominal Voltage 12/24V automatic detection
Max. charge/load current 20A (30A, ≤ 50°C)
Float charge 13.8/27.6V (25°C)
Main charge 14.4/28.8V (25°C) 30min (daily)
Boost charge 14.4/28.8V (25°C) 2h activation: battery voltage <12.3/24.6V
Equalization 14.8/29.6V (25°C), 2h activation: battery voltage < 12.1/24.2V (at least every 30 days)
Max. panel voltage 50V (Voc)
Deep discharge protection Deep discharge protection:11.00-12.02/22.00-24.04V by SOC | Cut-off voltage: 11.0/22.0-11.9/23.8V by voltage (adjustable step 0.1/0.2V) | Reconnect level: 12.8/25.6V
Overvoltage protection 15.5/31.0V
Undervoltage protection 10.5/21.0V
Temperature compensation −4.2 mV/K (2V cell)
Self consumption 5–8mA
Grounding negative grounded
Ambient temperature −40 to +60°C
Max. height 4.000m above sea level
Wire cross section 2.5 mm2
Weight 250 g
Dimensions (WxHxD) 92x99x22mm
Protection class IP68
Warranty 5 years
