Phocos CIS-N-LED-2800

Availability:

require pre order (waiting time ~4-6 weeks)

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 99.00 99.00

Net Price (without VAT)

quantity pcs.

product unavailable

Producer:

Product code: Phocos CIS-N-LED-2800

ask about product

Description

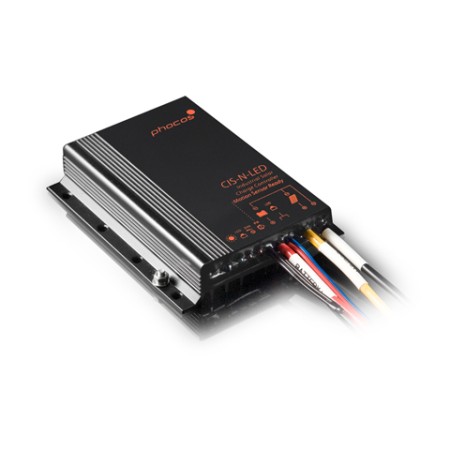

Phocos CIS-N-LED-2800

PV solar charge controller

The CIS-N-LED is a 3-in-1 solution that increases lifetime, reliability, efficiency and cost effectiveness. It is the perfect charge controller for solar lighting applications such as streetlights or bus shelters, and its motion sensor interface capabilities regulate LED brightness to conserve energy. To further conserve energy and extend the system’s lifetime, the CIS-N-LED has two low voltage disconnect levels. The levels can be programmed using one of Phocos' handheld remote control accessories; the CIS-CU or the MXI-IR and our free CISCOM PC software.

Combines 3 functions in one: charge controller + flexible timer + LED driver
Developed especially for rough environments, solar LED lamps, and solar LED streetlights
Flexible dimming functions
Input for motion detector (PIR)
Small size: fits everywhere
LiFePO4 available through CISCOM software
True color PWM dimming
Fully protected by the encapsulated case, which increases lifetime and reliability and reduces costs
Auto-protection function: two low-voltage disconnects extend system operation time and reliability
Infrared-programmable load timing feature + dimming is ideal for lighting systems
IP68 Ingress Protection

Downloads

Phocos CIS-N-LED-2800 - Datasheet
Phocos CIS-N-LED-2800 - User Manual
Phocos CIS-N-LED-2800 - CE Certificate

Technical Data

Product	Phocos CIS-N-LED-2800
Type	Solar Charge Controller with integrated LED Driver
System	Photovoltaic Systems
Function	Charge controller, flexible timer, LED drivers
Batteries	GEL, AGM, Lead-Acid, Flooded
Charge voltage for LiFePO4 battery	14.0/28.0V (temperature limit: -20 to +60°C)
Main / auxiliary battery charging	Adjustable
Charging Mode	PWM
Nominal Voltage	12/24V automatic detection
Max. charge/load current	20A (30A, ≤ 50°C)
Max. PV input power	230W @12V, 460W @ 24V
Float charge	13.8/27.6V (25°C)
Main charge	14.4/28.8V (25°C) 30min (daily)
Boost charge	14.4/28.8V (25°C) 2h activation: battery voltage <12.3/24.6V
Equalization	14.8/29.6V (25°C), 2h activation: battery voltage < 12.1/24.2V (at least every 30 days)
Max. panel voltage	50V (Voc)
Deep discharge protection	Deep discharge protection:11.00-12.02/22.00-24.04V by SOC \| Cut-off voltage: 11.0/22.0-11.9/23.8V by voltage (adjustable step 0.1/0.2V) \| Reconnect level: 12.8/25.6V
Overvoltage protection	15.5/31.0V
Undervoltage protection	10.5/21.0V
Temperature compensation	−4.2 mV/K (2V cell)
Self consumption	5–8mA
Grounding	negative grounded
Ambient temperature	−40 to +60°C
Max. height	4.000m above sea level
Wire cross section	2.5 mm2
Weight	250 g
Dimensions (WxHxD)	92x99x22mm
Protection class	IP68
Warranty	5 years
