Phocos CIS-N-MPPT-85/15

Availability:

require pre order (waiting time ~4-6 weeks)

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 134.00

Net Price (without VAT)

Regular price:

134.00

quantity pcs.

product unavailable

Producer:

Product code: Phocos CIS-N-MPPT-85/15

ask about product

Description

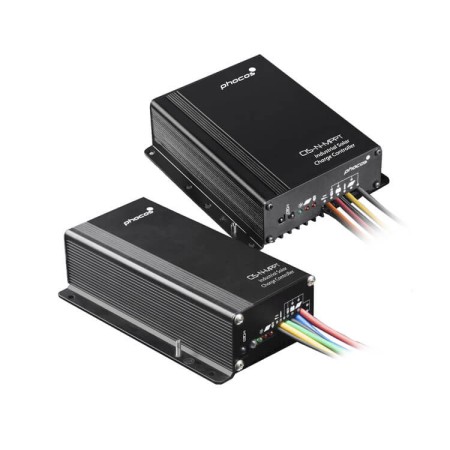

Phocos CIS-N-MPPT-85/15

PV solar charge controller

Off-Grid PV systems exposed to extreme weather/environmental conditions impose increased risk of damage to the power electronics. In order to ensure reliable battery protection under such conditions, Phocos developed the CIS-N-MPPT charge controller family to prevent corrosion. The CIS-N-MPPT series include convenient and advanced lighting control, which allows the user to decide whether they want the automatic lighting control with LED dimming to be either time or low-voltage activated.

Infrared-programmable load timing feature with dimming ideal for lighting systems
2 years of system performance data accessible via MXI-IR interface, PC software (CISCOM)
Up to 98% power conversion efficiency
Up to 4-stage charging increases battery lifespan
I/V or I/U curve sweep algorithm increases performance when panels are shaded
Fully encapsulated anodized aluminum housing design prevents damage from corrosion, insects and dust
20 cm connection wire
Compatible with 60 cell modules
Compatible with Lithium batteries (no BMS communication)
IP68 Ingress Protection

Downloads

Phocos CIS-N-MPPT 85/15 - Datasheet
Phocos CIS-N-MPPT 85/15 - User Manual
Phocos CIS-N-MPPT 85/15 - CE Certificate

Technical Data

Model	Phocos CIS-N-MPPT-85/15
System Voltage	12 / 24 V
Max. Charge/Load Current	15 A
Float Charge	13.8 / 27.6 V
Boost Charge	14.4 / 28.8 V
Overvoltage Protection	15.5 / 31.0 V
Max. PV Panel Voltage	50V/ 85 V
Grounding	Common Negative
Ambient Temperature	-40 to +60 °C
Battery Type	Lead acid (gel, AGM, flooded)
Max. Wire Cross Section	2.5 mm2
Dimensions	88.5 x 150 x 41.4 mm
Weight	0.78 kg
Ingress Protection	IP68
Warranty	5 years

Delivery costs Approx delivery costs, please choose your country of delivery

Country of delivery:

Phocos MXI-IR | PC USB interface, IR for CIS series

Infrared to USB programming accessory for CIS series controllers
Enables individual system settings and parameters
Compatible with all Phocos CIS controller
Enables access to datalogger info (CIS-MPPT only)

Price:

€ 51.00

Net Price (without VAT)

Phocos CIS-CU | Phocos Configuration Unit for CIS controllers

Remote controller for individual settings and operation
Compatible with all Phocos CIS controllers
Infrared interface

Price:

€ 96.00

Net Price (without VAT)
