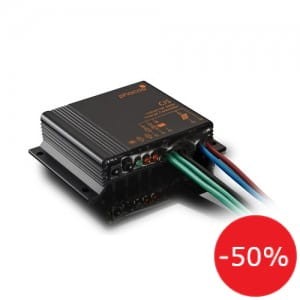

Phocos CIS20-2L for 12/24VWaterproof PV industrial Solar Charge Controller, 12/24V, IP68, dual load, timer solar charge controller
PV-Systems exposed to extreme weather and environmental conditions like street lights, navigation buoys, etc., for increased risk for damage in the power electronics. In order to assure reliable battery charge control under such conditions, Phocos developed the CIS encapsulated PV charge controller to prevent corrosion. The Phocos CIS is an industrial-grade charge controller that is suitable for all practical PV applications. The Phocos CIS is a high-quality, 4-stage PWM-charging mode is combined with features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display. The Phocos CIS charge controller features a two loads timer (2L-series) to independently control dual loads. The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory. All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external elements like corrosion, dust, water, bugs, chemicals, physical shock, where components make electrical contact to the controller. The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance ratio.
Robust aluminum housingEpoxy encapsulated PCB to prevent corrosionWaterproof (IP68) 1.5m for 72hCompact size Intelligent timer functions Widely programmable (requires CIS-CU or MXI-IR)External temperature sensor 4-Stage battery charging (main, float, boost, equalization) Two independent outputs for dual loads (only 2L-series)Automatic system voltage recognition (12/24V)Max. panel voltage: 42/52V (Voc) in 12/24V systemsMax. panel current: 5-20A (Isc) depends on modelGrounding: possible on positive line (see N-Series for negative grounding on minus line)Operating temperature: −40 to +60 °CBattery type: lead acid (GEL, AGM, flooded)Programmable with: CIS-CU and MXI-IR (available optionally)
Phocos CIS-10-2L (no dimming function) LAST UNITSPhocos CIS-20-2L (no dimming function) LAST UNITS
Phocos CIS-2L dual-loads version: with two charge outputs for two independent loads (lamps, etc.), no dimming function.
CISCOM configuration software for CIS-controllers, quick and easy configuration of individual load-time and system components. The CISCOM requires the MXI-IR interface for communication between PC and the CIS-controller.
The numbers within the diagrams stand for sequences of connecting the PV components.
* Depends on version. The max current appears as panel/generator (Isc).** In 12/24V battery systems. The max voltage appears as panel/generator (Voc).
Infrared remote controller CIS-CU available optionally.Infrared PC/CIS communication interface MXI-IR available optionally.Setting software CISCOM + MXI-IR driver free available.
Remote controller for individual settings and operationCompatible with all Phocos CIS controllersInfrared interface
Infrared to USB programming accessory for CIS series controllersEnables individual system settings and parametersCompatible with all Phocos CIS controllerEnables access to datalogger info (CIS-MPPT only)
