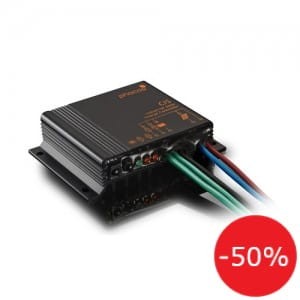

Phocos CIS20 Industrial Solar Charge Controller IP68, timer (12/24V)

CIS20
  • Outlet
Availability: in stock
Minimum order: no limit
Delivery: The price does not include any possible payment costs check the delivery methods
Net Price: € 39.00 39.00 € 78.00
excl. 23% VAT, excl. shipping costs
quantity pcs.
Manufacturer:: Phocos
Product code: Phocos CIS20

Description





Phocos CIS20 for 12/24V
Industrial Solar Charge Controller, 12/24V, 20/20A, IP68, timer

Waterproof PV solar charge controller




PV-Systems exposed to extreme weather and environmental conditions like street lights, navigation buoys, etc., for increased risk for damage in the power electronics. In order to assure reliable battery charge control under such conditions, Phocos developed the CIS encapsulated PV charge controller to prevent corrosion.


The Phocos CIS is an industrial-grade charge controller that is suitable for all practical PV applications. The Phocos CIS is a high-quality, 4-stage PWM-charging mode is combined with features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display.


The Phocos CIS charge controller features a single load timer, for one dimmable load. The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.


All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external elements like corrosion, dust, water, bugs, chemicals, physical shock, where components make electrical contact to the controller.


The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance ratio.


Key advantages



Robust aluminum housing
Epoxy encapsulated PCB to prevent corrosion
Waterproof (IP68) 1.5m for 72h
Compact size
Intelligent timer functions
Widely programmable (requires CIS-CU or MXI-IR)
External temperature sensor
4-Stage battery charging (main, float, boost, equalization)
Dimming function 0-10V output (only in single load series, not in the 2L versions)
Automatic system voltage recognition (12/24V)
Max. panel voltage: 42/52V (Voc) in 12/24V systems
Max. panel current: 5-20A (Isc) depends on model
Grounding: possible on positive line (see N-Series for negative grounding on minus line)
Operating temperature: −40 to +60 °C
Battery type: lead acid (GEL, AGM, flooded)
Programmable with: CIS-CU and MXI-IR (available optionally)


Available models


Phocos CIS10 LAST UNITS
Phocos CIS20 LAST UNITS


Phocos CIS  single-load version
: comes with a control output for one load, contains dimming function.


Optional available



CISCOM Software


CISCOM configuration software for CIS-controllers, quick and easy configuration of individual load-time and system components. The CISCOM requires the MXI-IR interface for communication between PC and the CIS-controller.


Diagrams



Phocos CIS


Phocos CIS, waterproof PV solar charge controller



The numbers within the diagrams stand for sequences of connecting the PV components.



Downloads


 Phocos CIS - Datasheet
 Phocos CIS - User manual
 Phocos CIS - CE Declaration of conformity
 Phocos CIS - Quick Start Manual




Product matrix of the Phocos-CIS series


    CIS   CIS-2L   CIS-N   CIS-N-2L   CIS-LED   CIS-MPPT

Available versions   CIS 05
CIS 10
CIS 20
  CIS-2L 05
CIS-2L 10
CIS-2L 20
  CIS-N 05
CIS-N 10
CIS-N 20
  CIS-N-2L 05
CIS-N-2L 10
CIS-N-2L 20
  CIS-LED 05   CIS-MPPT 75/20
Controller type   PWM   PWM   PWM   PWM   PWM   MPPT
Waterproof (IP68)   X   X   X   X   X   X
System voltage   12/24V   12/24V   12/24V   12/24V   12V   12/24V
Battery type   GEL, Acid   GEL, Acid   GEL, Acid   GEL, Acid   GEL, Acid   GEL, Acid
Max current (A)*   5/10/20A   5/10/20A   5/10/20A   5/10/20A   5A   20A
Max panel voltage (V)**   42/52V   42/52V   42/52V   42/52V   42V   75V
Overcharge protection   X   X   X   X   X   X
Deep discharge protection   X   X   X   X   X   X
Compatible with CIS-CU   X   X   X   X   X   X
Compatible with MXI-IR   X   X   X   X   X   X
Compatible with CISCOM   X   X   X   X   X   X
Grounding possible (on line)   (+)   (+)   (-)   (-)   (+)   (-)
Loads controlled   single load   dual loads   single load   dual loads   single load   single load
Dimmable   X       X       X   X
Datalogger (2 years data)                       X
LED driver                   X
Size (mm)   82x58x20   82x58x20   82x58x20   82x58x20   82x93x20   130x150x45
Weight    150g   150g   150g   150g   210g   1050g


* Depends on version. The max current appears as panel/generator (Isc).
** In 12/24V battery systems. The max voltage appears as panel/generator (Voc).


Infrared remote controller
CIS-CU available optionally.
Infrared PC/CIS communication interface MXI-IR available optionally.
Setting software CISCOM + MXI-IR driver free available.



Technical Data

Product Phocos CML 10A | 15A | 20A
Type Waterproof Charge Controller 12/24V
System Photovoltaic Systems
Function Overcharge Protection
Batteries GEL, AGM, Lead-Acid, Flooded
Charging Mode PWM
Nominal Voltage 12/24V automatic detection
Max. charge/load current 10A | 20A
Float charge 13.8/27.6V (25°C)
Main charge 14.4/28.8V (25°C) 30min (daily)
Boost charge 14.4/28.8V (25°C) 2h activation: battery voltage <12.3/24.6V
Equalization 14.8/29.6V (25°C) 2h activation: battery voltage <12.1/24.2V
Max. panel voltage 55V (Voc)
Deep discharge protection Cut-off voltage 11–12V/22–24V | Reconnect level 12.8/25.6V
Overvoltage protection 15.5/31.0V
Undervoltage protection 10.5/21.0V
Temperature compensation -25 mV/K at 12V | -50 mV/K at 24V
Self consumption 5–8 mA at 12V | 6–10 mA at 24V
Grounding positive grounding possible
Ambient temperature −40 to +60°C
Max. height 4.000m above sea level
Wire cross section 1.5 mm2 | 1.5 mm2 | 2.5 mm2
Adjustment range Evening/morning hours Night/day detection 0–15 h/0–14 h | 2.5–10V
Wire length 10cm
Weight 150 g
Dimensions (WxHxD) 82x58x20 mm
Protection class IP68 (waterproof)
Technical data dimming output Dimming value 0–100% output power | dimming output voltage 0–10V (max. 1mA)
Warranty 2 years

Shipping costs The price does not include any possible payment costs

Country of delivery::
