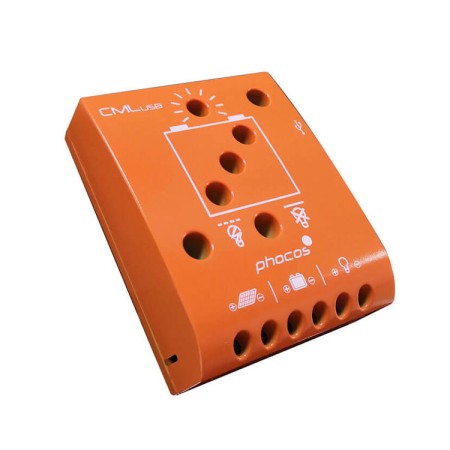

Phocos CML-USB-10

Phocos CML-USB-10
  • new
Availability: require pre order (waiting time ~4-6 weeks)
Limitations: max 3 units per order
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 36.00
Net Price (without VAT)

Regular price:

36.00
quantity pcs.

product unavailable

Producer: Phocos
Product code: Phocos CML-USB-10

Description


Phocos CML-USB-10

PV solar charge controller



The CML-USB series is designed for-low cost applications and is ideal for small solar systems in need of a low battery disconnect feature. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding features like status display, warning and safety functions. Leisure and rural electrification systems are the typical applications for the CML-USB controllers. They provide a perfect solution for cost-sensitive systems that require state-of-the-art system management. A built-in USB charging output is ideal for charging mobile devices off a solar home system. Low-voltage disconnect prevents battery damage from deep discharging.



• Battery state-of-charge LEDs
• 4-stage PWM regulation
• Load disconnect prewarning by acoustic signal
• Boost, equalization, and float charging
• USB charging output for mobile devices


Downloads



Technical Data

Model Phocos CML-USB-10 | CML-USB-20
System Voltage 12 / 24 V
Max. Charge/Load Current 10 A | 20 A
Float Charge 13.8 / 27.6 V
Boost Charge 14.4 / 28.8 V
Overvoltage Protection 15.5 / 31.0 V
Max. PV Panel Voltage 30 V / 50 V
Idle Self-Consumption < 4 mA
Grounding Common Positive
Ambient Temperature -40 to +45 °C
Max. Altitude 4,000 m above sea level
Battery Type Lead acid (gel, AGM, flooded)
Max. Wire Cross Section 16 mm2
Dimensions 80 x 100 x 32 mm
Weight 0.16 kg
Ingress Protection IP20
Warranty 5 years
