Phocos ECO-N-10-T
Description

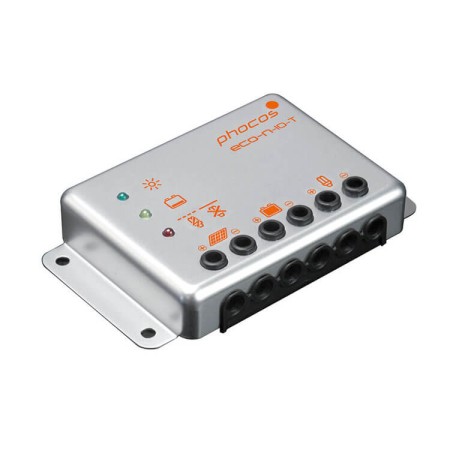

Phocos ECO-N-10-T
PV solar charge controller
Phocos’ ECO-N-T is a cost effective solution for many challenging solar applications. Its compact size allows it to fit well in small spaces. The industrial grade ECO-N-T is fully encapsulated, which protects the circuit board from corrosion. This unit also features UL and other certifications, proving it is a robust charge controller that will perform well in a variety of harsh environments.
The ECO-N-T is versatile and offers the flexibility of operating with 12 or 24 V systems. This reliable charge controller is simple to use, as it requires no user programming and has easy to interpret LEDs. The ECO-N-T will protect your batteries from overcharging and over discharging, making for a strong return on investment.
- Ideal for almost any off-grid PV application
- Same model can be used in 12 or 24 V systems (fewer components to stock)
- Fully potted PCB
- Rugged housing with corrosion-resistant screw terminals
- Simple 3-LED system status interface
- Install only requires a flathead screwdriver
- UL1741/Class I Div. 2 certified
Downloads
Phocos ECO-N-10-T - Datasheet Phocos ECO-N-10-T - User Manual Phocos ECO-N-10-T - CE Certificate
Technical Data
| Model | Phocos ECO-N-10-T |
| System Voltage | 12 / 24 V |
| Max. Charge/Load Current | 10 A |
| Float Charge | 13.8 / 27.6 V |
| Boost Charge | 14.4 / 28.8 V |
| Overvoltage Protection | 15.5 / 31.0 V |
| Max. PV Panel Voltage | 30 V / 50 V |
| Idle Self-Consumption | 4 mA |
| Grounding | Common Negative |
| Ambient Temperature | -40 to +60 °C |
| Max. Altitude | 4,000 m above sea level |
| Battery Type | Lead acid (gel, AGM, flooded) |
| Max. Wire Cross Section | 10 mm2 |
| Dimensions | 100 x 61 x 20 mm |
| Weight | 0.16 kg |
| Ingress Protection | IP68 |
| Warranty | 5 years |
