SMA Sunny Tripower 6.0 STP6.0-3AV-40

Availability:

running out

Delivery: choose country of delivery

Price: € 845.71

Net Price (without VAT)

Regular price:

845.71

quantity pcs.

product unavailable

add to wish list

Producer:

ID: SMA-Sunny-Tripower-6.0-STP6.0-3AV-40

Product

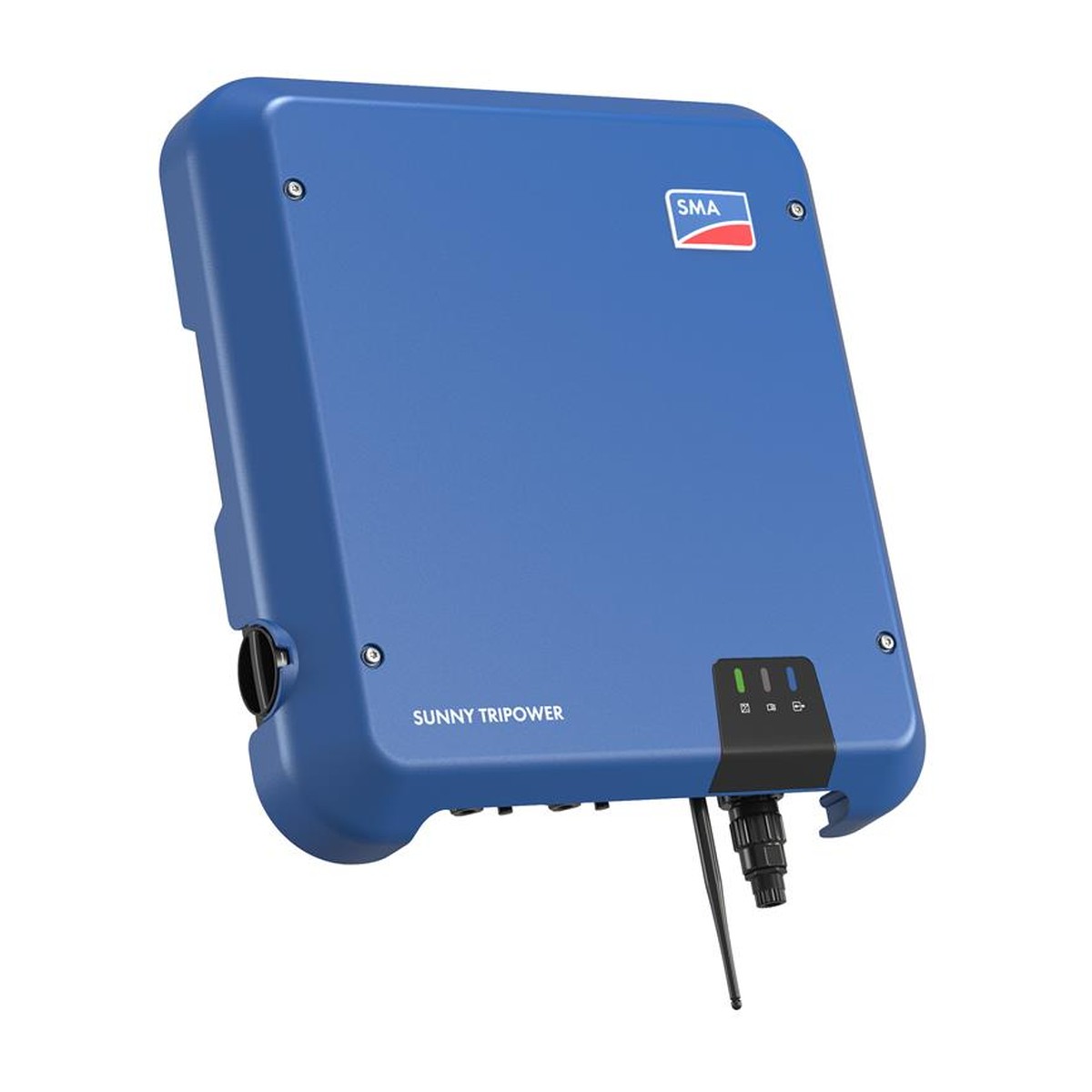

SMA Sunny Tripower 6.0 STP6.0-3AV-40

6kW 3P On-Grid PV Inverter

On-gridsystem
3phases
2xMPPT
9kWPV max
850Vdcsystem voltage
IP65outdoor
5 yearswarranty

Designed for private homes, the SMA Sunny Tripower 6.0 STP6.0-3AV-40 (Sunny Tripower) is a compact three-phase inverter that one person can install. Integrated SMA ShadeFix maximizes yield, and energy management or storage solutions can be added at any time.

SMA Solar Technology AG was founded in 1981 and is headquartered in Niestetal, Germany; its shares have been listed in the Prime Standard of the Frankfurt Stock Exchange since 2008.

Key features

One-person installation
100% plug and play installation
Integrated shade management SMA ShadeFix
Online monitoring via SMA Energy App
Automated service with SMA Smart Connected
Energy management and storage solutions can be added anytime
Dual MPP trackers

Technical data

AC output
Rated power / apparent power	6kW / 6kVA
Grid connection	3-phase, 230/400V, 3L/N/PE
Max. output current	9.1A
PV input
Max. PV power	9kW
Max. DC voltage / MPPT range	850V / 260–800V
MPPT	2x MPPT, 1 string per MPPT
Max. short-circuit current	18A per MPPT
General
Efficiency (max / EU)	98.2% / 97.6%
Protection	IP65
Dimensions / weight	435 × 470 × 176mm / 17kg
Operating temperature	-25 to +60°C
Communication	Modbus (SMA, Sunspec), Webconnect, SMA Data
Certificates	AS 4777.2, C10/11, CE, CEI 0-21, DEWA 2016, DIN EN 62109-1/IEC 62109-1
Warranty	5 years

Downloads

Datasheet

Datasheet Sunny Tripower 6.0 STP6.0-3AV-40EN686 KB

Technical Data

Power	6kW
Phases	3P
MPPT	2x MPPT
Ingress protection	IP65
